SIEMENS IE2 MOTORS

Siemens IE2 Motors for Industrial Applications

Meta Title: Siemens IE2 Motors | Industrial Motor Solutions

Meta Description: Discover Siemens IE2 Motors from 0.18 to 315 kW with IP55 protection, flexible mounting, VFD suitability, and options for demanding applications.

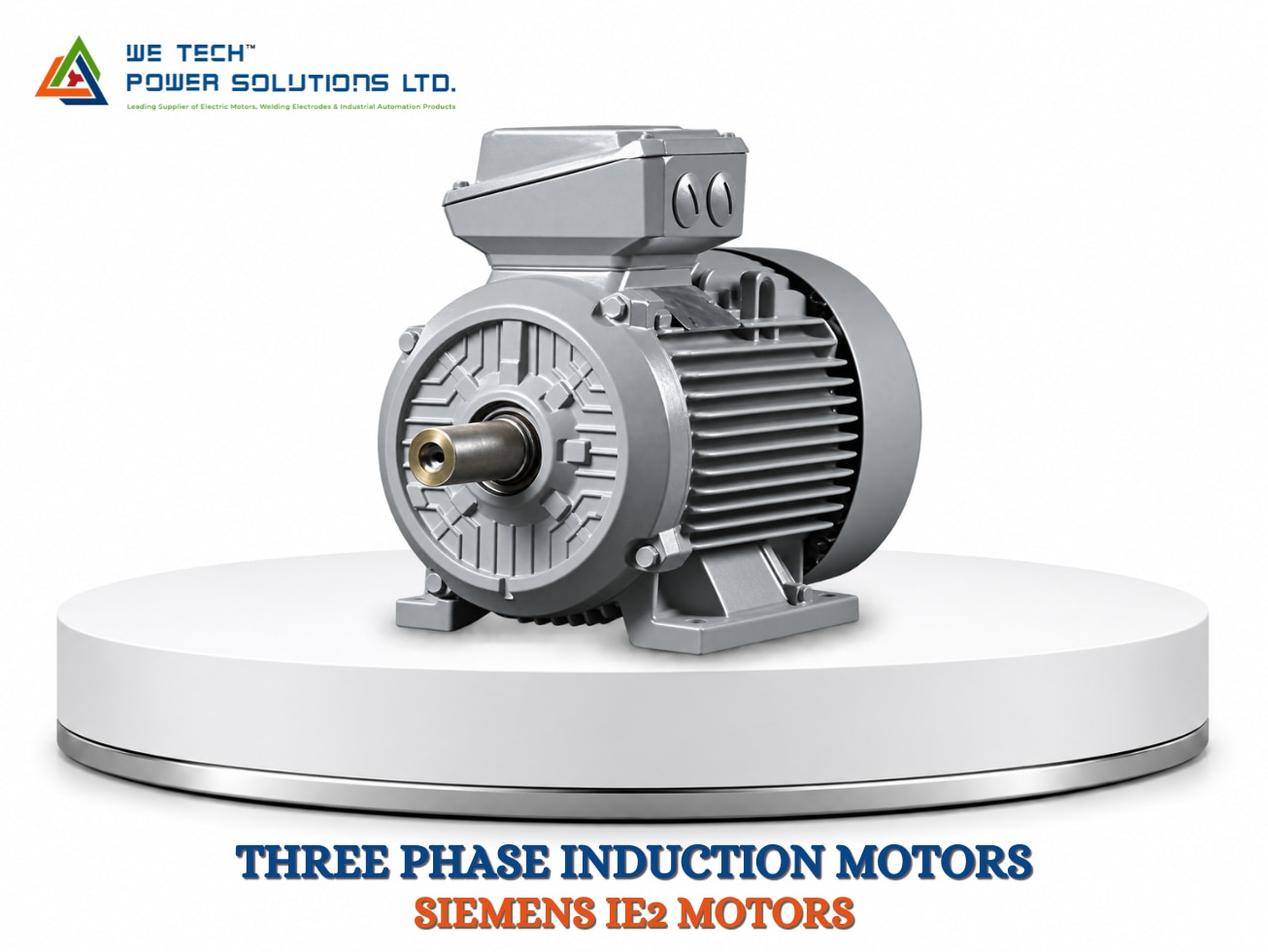

About Siemens IE2 Motors

Industrial machinery often depends on motors that can operate reliably through long production cycles and demanding working conditions. Siemens IE2 Motors are designed for a broad range of industrial applications, offering multiple power ratings, speeds, frame sizes, and mounting arrangements.

We Tech Power Solutions Ltd is an authorised dealer of Siemens IE2 Motors, with a range from 0.18 kW to 315 kW, equivalent to 0.25 HP to 425 HP. These three-phase motors are available for 415 V and 50 Hz applications, with 3000 RPM, 1500 RPM, and 1000 RPM configurations.

The motors feature a cast-iron body, S1 continuous-duty operation, Class F insulation, and IP55 protection. With B3, B5, B35, B14, and B34 mounting options, they can be selected for different machine designs and installation requirements.

Siemens IE2 Motor Technical Specifications

Key specifications include:

• Power range: 0.18 to 315 kW / 0.25 to 425 HP

• Phase: Three phase

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Speed: 3000, 1500, and 1000 RPM

• Poles: 2 Pole, 4 Pole, and 6 Pole

• Frame size: 71 to 355

• Efficiency: IE2 – 1LE7

• Duty: S1

• Mounting: B3, B5, B35, B14, and B34

• Body: Cast iron

• Enclosure: TEFC

• Insulation: Class F

• Protection: IP55

• Terminal box: TOP, diagonally split terminal box

• Ambient temperature: Up to 50°C

Depending on the application, available specialties include VPI/VFD suitability, thermistors, insulated bearings, roller bearings, space heaters, forced cooling, RHS/LHS terminal-box locations, and aluminium-body enclosure options. The motors are also suitable for inverter operation as a standard VFD-suitable configuration.

Where Are Siemens IE2 Motors Used?

The broad power and mounting range makes these motors suitable for varied industrial equipment, including:

• Pumps and fans

• Conveyors and heavy-duty conveyors

• Crushers, VSI, and jaw crushers

• Ball mills and roller tables

• Cranes and hoists

• Material-handling equipment

• Packing machinery

• Agro and food-processing equipment

• Milling and drilling machines

• Mixers, reactors, and agitators

• Machine tools

• Hammers and presses

• Expellers and disintegrators

• Coilers and de-coilers

• Hot dryers

In crusher and material-handling applications, correct motor selection is particularly important because the motor must accommodate the machine's load characteristics, starting requirements, operating duty, and mechanical transmission arrangement.

Industries Using Siemens IE2 Motors

These motors can be used across manufacturing, food processing, agriculture, construction-material processing, engineering, material handling, chemical processing, and general industrial production.

Before selecting a motor, it is important to check the required kW/HP, RPM, frame size, mounting type, duty, voltage, environmental conditions, and driven-machine requirements.

Why Choose We Tech Power Solutions Ltd?

Choosing an industrial motor is about more than matching the power rating. The correct combination of speed, mounting, frame size, duty, and application requirements helps ensure compatibility with the machinery.

Customers searching for a Siemens (Innomotics) IE2 Motors dealer in Ahmedabad can approach We Tech Power Solutions Ltd for product and selection assistance. Customers looking for Siemens (Innomotics) IE2 Motors Suppliers in Gujarat can also discuss their requirements with the company.

For international enquiries, the company additionally supports requirements associated with CG Crusher Duty Motors Exporters in Dubai.

The motors are covered by warranty for faulty material or workmanship for 12 months from commissioning or 18 months from dispatch, whichever is earlier, subject to applicable warranty conditions.

Frequently Asked Questions

1. What is the power range of Siemens IE2 Motors?

Siemens IE2 Motors are available from 0.18 kW to 315 kW, corresponding to approximately 0.25 HP to 425 HP, with multiple speeds, frame sizes, and mounting arrangements.

2. Can Siemens IE2 Motors be used with VFD systems?

Yes. VPI/VFD-suitable configurations and inverter-operation suitability are available. Depending on the application, features such as thermistors, insulated bearings, and forced cooling can also be considered.

Get the Right Siemens IE2 Motor

Contact We Tech Power Solutions Ltd today for Siemens IE2 Motor specifications, pricing, availability, and application-based motor selection support.
