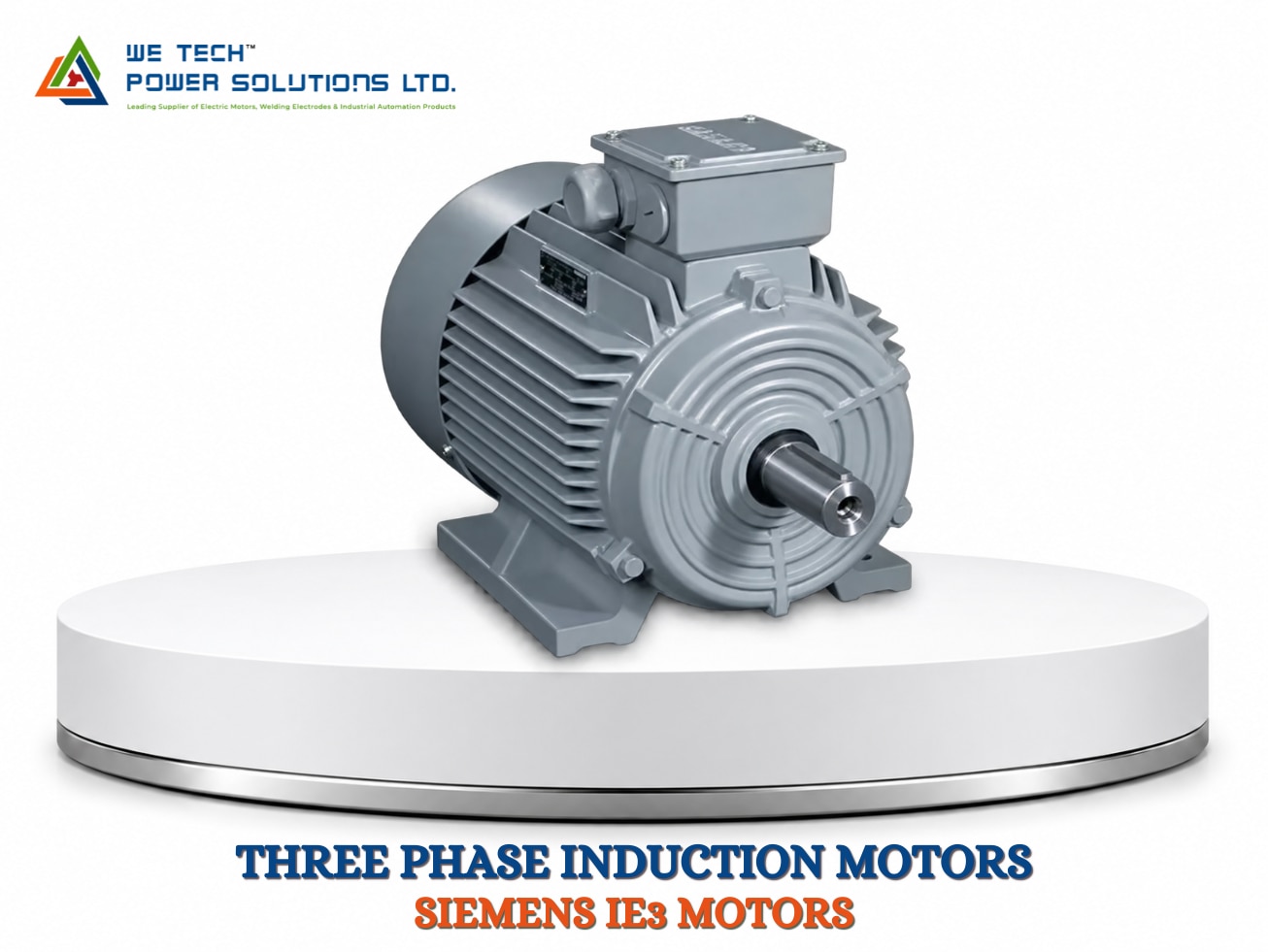

SIEMENS IE3 MOTORS

2.2 Siemens IE3 Motors

Siemens IE3 Motors for Efficient Industrial Operation

Meta Title: Siemens IE3 Motors | High-Efficiency Motors

Meta Description: Explore Siemens IE3 Motors from 0.37 to 200 kW with IE3 efficiency, IP55 protection, VFD suitability, and flexible mounting options.

About Siemens IE3 Motors

For industrial equipment that operates for long hours, motor efficiency can have a direct impact on energy consumption and operating costs. Siemens IE3 Motors are designed for applications where dependable three-phase performance and improved energy efficiency are important.

We Tech Power Solutions Ltd is an authorised dealer of Siemens IE3 Motors, offering a range from 0.37 kW to 200 kW, equivalent to 0.5 HP to 270 HP. These motors are available in 415 V, 50 Hz configurations, with 3000 RPM, 1500 RPM, and 1000 RPM options for different operating requirements.

Built with a cast-iron body and designed for S1 continuous duty, the motors are available in frame sizes from 71 to 315. B3 foot, B5 flange, and B35 foot-cum-flange mounting options make them suitable for integration into a wide range of industrial machines.

Siemens IE3 Motor Technical Specifications

The key specifications include:

• Power range: 0.37 to 200 kW / 0.5 to 270 HP

• Phase: Three phase

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Speed: 3000 RPM, 1500 RPM, and 1000 RPM

• Poles: 2 Pole, 4 Pole, and 6 Pole

• Frame size: 71 to 315

• Efficiency: IE3

• Duty: S1

• Mounting: B3, B5, and B35

• Body: Cast iron

• Enclosure: TEFC

• Insulation: Class F

• Protect

_____________________________________________________________________________

3.1 Innomotics IE2 Motor

Innomotics IE2 Motors for Industrial Applications

Meta Title: Innomotics IE2 Motors | Industrial Motor Solutions

Meta Description: Explore Innomotics IE2 Motors from 0.18 to 315 kW with IP55 protection, flexible mounting options, VFD suitability, and industrial-duty configurations.

About Innomotics IE2 Motors

Industrial machinery often operates under demanding conditions where dependable motor performance is essential. Innomotics IE2 Motors are designed for a wide range of industrial equipment, offering a practical combination of efficiency, robust construction, and flexible installation options.

We Tech Power Solutions Ltd is an authorised dealer of Innomotics IE2 Motors, offering motors from 0.18 kW to 315 kW, equivalent to 0.25 HP to 425 HP. These three-phase motors are available for 415 V, 50 Hz applications and come in 3000 RPM, 1500 RPM, and 1000 RPM configurations.

The motors are available with 2-pole, 4-pole, and 6-pole designs and frame sizes from 71 to 355. Depending on the machine design, customers can select B3 foot, B5 flange, B35 foot-cum-flange, B14 face, or B34 foot-cum-face mounting.

Technical Specifications

Important specifications of the Innomotics IE2 motor range include:

• Power: 0.18 to 315 kW / 0.25 to 425 HP

• Phase: Three phase

• Voltage: 415 V ±10%

• Frequency: 50 Hz ±5%

• Speed: 3000, 1500, and 1000 RPM

• Poles: 2, 4, and 6 Pole

• Frame size: 71 to 355

• Efficiency class: IE2

• Duty: S1

• Mounting: B3, B5, B35, B14, and B34

• Body: Cast iron

• Enclosure: TEFC

• Insulation: Class F

• Protection: IP55

• Terminal box: TOP, diagonally split

• Ambient temperature: Up to 50°C

Depending on application requirements, options include VPI/VFD suitability, thermistors, insulated bearings, roller bearings, space heaters, forced cooling, RHS/LHS terminal-box locations, aluminium-body configurations, and inverter-operation suitability.

Where Are Innomotics IE2 Motors Used?

The broad power and mounting range makes these motors suitable for many types of industrial machinery. Applications include:

• Pumps and industrial fans

• Packing machinery

• Agro-processing equipment

• Food-processing machinery

• Agitators and mixers

• Milling and drilling machines

• Cranes and hoists

• Conveyors and material-handling systems

• Machine tools

• Crushers, VSI systems, and jaw crushers

• Roller tables and ball mills

• Hammers and presses

• Hot dryers and heavy-duty conveyors

• Reactors and expellers

• Disintegrators

For crusher and material-handling equipment, motor selection should take into account starting torque, load characteristics, operating duty, speed, and mechanical transmission requirements rather than relying on horsepower alone.

Industries Using Innomotics IE2 Motors

These motors can be used across manufacturing, food processing, agriculture, construction-material processing, material handling, engineering, chemical processing, and general industrial machinery.

Their multiple mounting arrangements also make them easier to integrate into machines with different installation layouts.

Why Choose We Tech Power Solutions Ltd?

Selecting an industrial motor requires attention to several technical details, including kW, RPM, frame size, mounting, duty, voltage, and application conditions. We Tech Power Solutions Ltd provides product and motor-selection support based on these requirements.

Customers searching for an Siemens (Innomotics) IE2 Motors dealer in Ahmedabad can approach the company for Innomotics motor requirements. Customers looking for Siemens (Innomotics) IE2 Motors Suppliers in Gujarat can also discuss their required specifications and application.

For international enquiries, the company supports requirements associated with CG Crusher Duty Motors Exporters in Dubai.

Motors are covered by warranty for faulty material or workmanship for 12 months from commissioning or 18 months from dispatch, whichever is earlier, subject to applicable warranty conditions.

Frequently Asked Questions

1. What power range is available in Innomotics IE2 Motors?

The range covers 0.18 kW to 315 kW, equivalent to approximately 0.25 HP to 425 HP, with different speeds, frame sizes, and mounting arrangements.

2. Are Innomotics IE2 Motors suitable for VFD applications?

Yes. VFD-suitable configurations and inverter-operation options are available. Depending on operating conditions, features such as thermistors, insulated bearings, and forced cooling can also be considered.

Get the Right Innomotics IE2 Motor

Contact We Tech Power Solutions Ltd today for Innomotics IE2 Motor specifications, pricing, availability, and application-based motor selection support.
