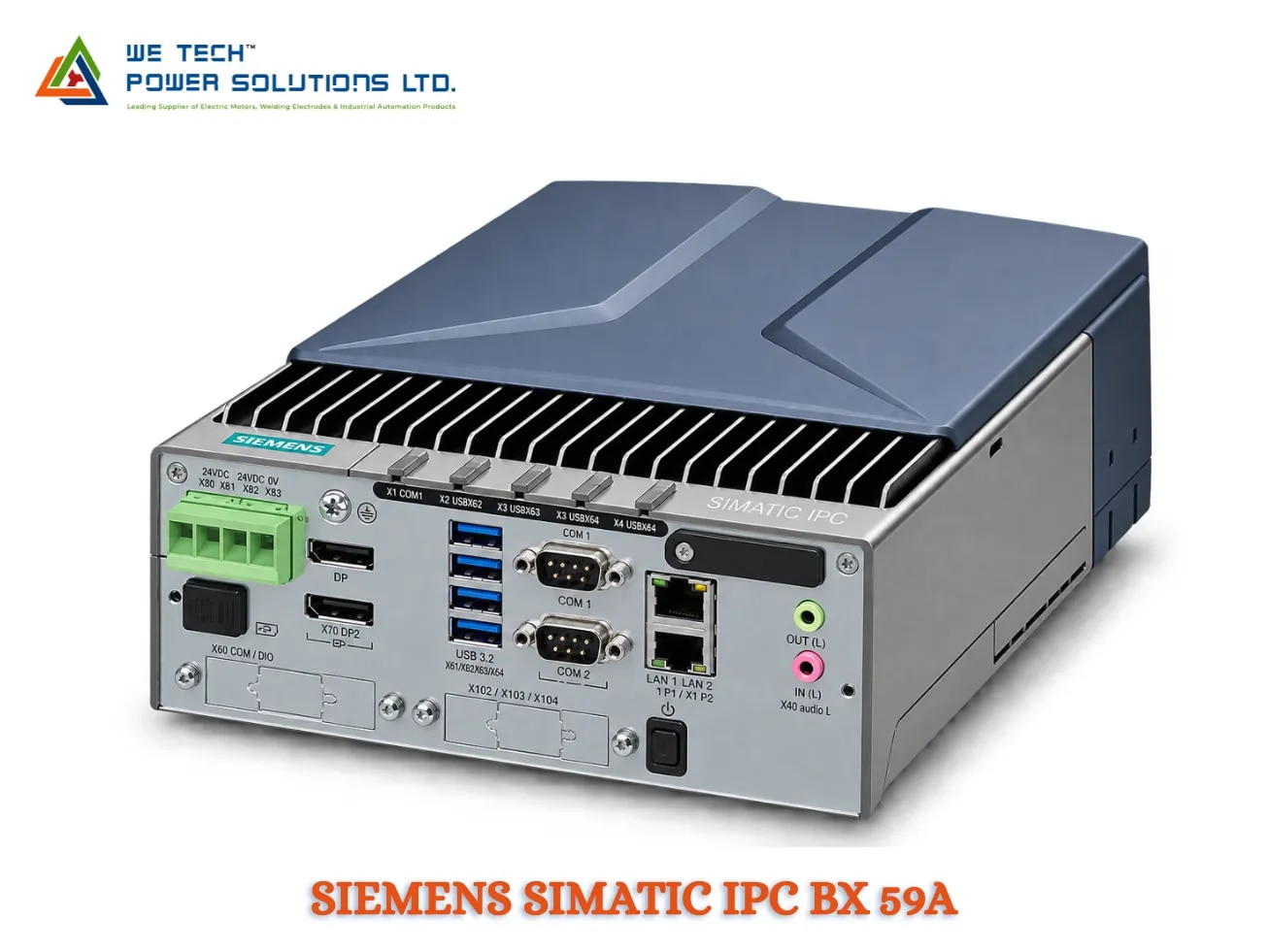

SIEMENS SIMATIC IPC BX 59A

Siemens SIMATIC IPC BX-59A for High-Performance Industrial Computing.

The Siemens SIMATIC IPC BX-59A is a modular industrial Box PC designed for demanding automation, machine vision, industrial data processing, edge computing, and production-related applications. Its scalable hardware architecture allows the system to be configured according to different processing, storage, communication, and expansion requirements.

We Tech Power Solutions Ltd supplies Siemens SIMATIC IPC BX-59A for OEMs, machine builders, system integrators, manufacturers, and industrial automation projects across India and Gulf countries.

A Modular Industrial PC for Advanced Automation

Modern industrial systems increasingly require local computing power for machine control, visualization, data analysis, machine vision, artificial intelligence, and production monitoring. The SIMATIC IPC BX-59A is designed around this requirement.

Siemens describes the BX-59A as a modular industrial PC with 13th-generation Intel processors, DDR5 memory, flexible expansion modules, and scalable power options. The platform can also be configured with PCIe expansion hardware, including high-performance GPU solutions for demanding industrial applications.

This makes the BX-59A suitable when an industrial application needs considerably more flexibility than a conventional compact Box PC.

Where Can SIMATIC IPC BX-59A Be Used?

Machine Vision

The BX-59A can provide the computing platform for demanding machine-vision applications. Selected expansion configurations can accommodate professional GPUs and frame-grabber hardware.

High-End Automation

It can be integrated into automation systems requiring significant processing capability for control, visualization, communication, and industrial software.

Production Data Management

Manufacturing systems can use the IPC to collect, process, store, and communicate production-related information.

Edge Computing

The BX-59A can process industrial data locally before transferring selected information to higher-level IT or cloud systems.

AI & Industrial Analytics

With suitable GPU expansion, the platform can support AI inference and other computationally intensive industrial applications. Siemens specifically identifies the BX-59A for AI inference use cases.

Industrial Visualization

The IPC can serve as a computing platform for visualization, diagnostics, monitoring, and other PC-based industrial applications.

Key Features of SIMATIC IPC BX-59A

13th-Generation Intel Processing

The platform supports powerful Intel processor configurations with thermal design power options ranging from approximately 35 W to 65 W, depending on the selected configuration.

DDR5 Memory

The BX-59A uses fast DDR5 memory technology, supporting demanding industrial software and data-processing workloads.

Modular Expansion

Its modular architecture allows additional hardware and interfaces to be added according to application requirements.

Flexible M.2 Connectivity

M.2 modules can be used for additional functions such as LAN, USB, GPIO, digital I/O, COM, Wi-Fi, and 5G connectivity, depending on the selected configuration.

GPU & PCIe Expansion

Selected expansion modules support PCIe hardware, including GPUs, Power over Ethernet cards, motion-control cards, and frame-grabber cards.

Multiple Storage Options

Depending on the expansion configuration, SATA SSDs can be used for additional storage and RAID arrangements.

Industries Using Siemens SIMATIC IPC BX-59A

The BX-59A can be considered for applications across:

• Automotive Manufacturing

• Machine Manufacturing

• Industrial Automation

• Machine Vision

• Packaging

• Pharmaceutical Manufacturing

• Food & Beverage

• Chemical Processing

• Oil & Gas

• Metals & Steel

• Energy & Utilities

• Material Handling

• Warehouse & Logistics

• Smart Manufacturing

• Industrial IT

Technical Product Overview

• Product Type: Modular Industrial Box PC

• Product Family: Siemens SIMATIC IPC BX-59A

• Processor: Intel 13th-generation processor options, model-dependent

• Processor Power: Approximately 35 W to 65 W TDP, configuration-dependent

• Memory: DDR5, configuration-dependent

• Storage: SATA SSD / NVMe options, model-dependent

• Ethernet: Up to 4 × Gigabit Ethernet on documented configurations

• USB: Multiple USB interfaces, configuration-dependent

• USB-C: Available on selected configurations

• Display: 2 × DisplayPort on documented configurations

• Serial: 2 × COM interfaces on documented configurations

• M.2 Expansion: M.2 slots for selected communication and storage modules

• PCIe Expansion: Available through expansion modules

• GPU Support: Professional GPU options on selected expansion configurations

• SIM Slots: Available on documented configurations

• RAID: Onboard RAID controller / configuration-dependent

• Power Supply: 12–24 V DC or 24 V DC, configuration-dependent

• Monitoring: Watchdog, temperature and fan monitoring

• Installation: Industrial cabinet / machine installation

A documented BX-59A configuration includes four Gigabit Ethernet ports, six USB 3.1 Gen.2 ports, one USB-C port, two serial interfaces, two DisplayPort connections, two SIM slots, two internal M.2 flex-module slots, an onboard RAID controller, and an Intel Core i5-13500E processor. Exact specifications vary by order number.

Technical specifications may vary according to the exact Siemens SIMATIC IPC BX-59A configuration. Confirm the complete Siemens order number, processor, memory, storage, expansion modules, power supply, and required interfaces before purchase.

How to Select the Right BX-59A Configuration?

The BX-59A is a highly configurable industrial PC, so the correct model should be selected according to the complete application.

Before requesting a quotation, consider:

1. Processing requirement – Select the appropriate Intel processor.

2. Memory requirement – Determine the required DDR5 capacity.

3. Storage requirement – Confirm SATA SSD, NVMe, or RAID requirements.

4. Machine-vision requirement – Check whether a GPU or frame grabber is required.

5. Communication requirement – Identify Ethernet, COM, Wi-Fi, 5G, or other interfaces.

6. Expansion requirement – Confirm PCIe and additional module requirements.

7. Power requirement – Verify the required DC power configuration.

8. Installation requirement – Check cabinet space and mounting arrangement.

9. Software requirement – Confirm the operating system and industrial software.

10. Environmental requirement – Verify the operating conditions of the installation location.

Providing the complete Siemens order number is recommended for accurate product identification.

Why Choose We Tech Power Solutions Ltd?

The BX-59A offers numerous configuration possibilities, so choosing the right industrial PC requires understanding the complete application rather than selecting a model based only on CPU performance.

We Tech Power Solutions Ltd helps OEMs, machine manufacturers, system integrators, and industrial users with Siemens product identification and configuration requirements.

Our support can include:

• Product identification

• Siemens order-number verification

• Hardware configuration checking

• Replacement requirements

• Technical selection

• Expansion planning

• Availability enquiries

• Quotation support

Whether you need the BX-59A for machine vision, AI inference, high-end automation, edge computing, or production data management, sharing the exact application and Siemens part number helps us identify the appropriate configuration.

Frequently Asked Questions

1. What is Siemens SIMATIC IPC BX-59A used for?

The SIMATIC IPC BX-59A is designed for demanding industrial applications including machine vision, high-end automation, production data management, edge computing, industrial analytics, and AI inference.

2. What makes the SIMATIC IPC BX-59A different from a standard industrial PC?

The BX-59A uses a modular architecture with scalable processing, DDR5 memory, M.2 expansion, storage options, and PCIe expansion modules. Selected configurations can support GPUs and specialized industrial hardware such as frame grabbers and motion-control cards.

3. How do I select the correct SIMATIC IPC BX-59A?

Selection depends on processor performance, DDR5 memory, storage, communication interfaces, GPU requirements, PCIe expansion, power supply, operating system, and application requirements. Share the complete Siemens order number or application details with We Tech Power Solutions Ltd for product-selection and quotation support.

Looking for a Siemens SIMATIC IPC BX-59A Supplier in Ahmedabad, India, or Gulf countries?

Send us your Siemens order number, application details, required configuration, quantity, and delivery location.

Contact We Tech Power Solutions Ltd for SIMATIC IPC BX-59A product identification, technical selection, availability, and quotation support.
