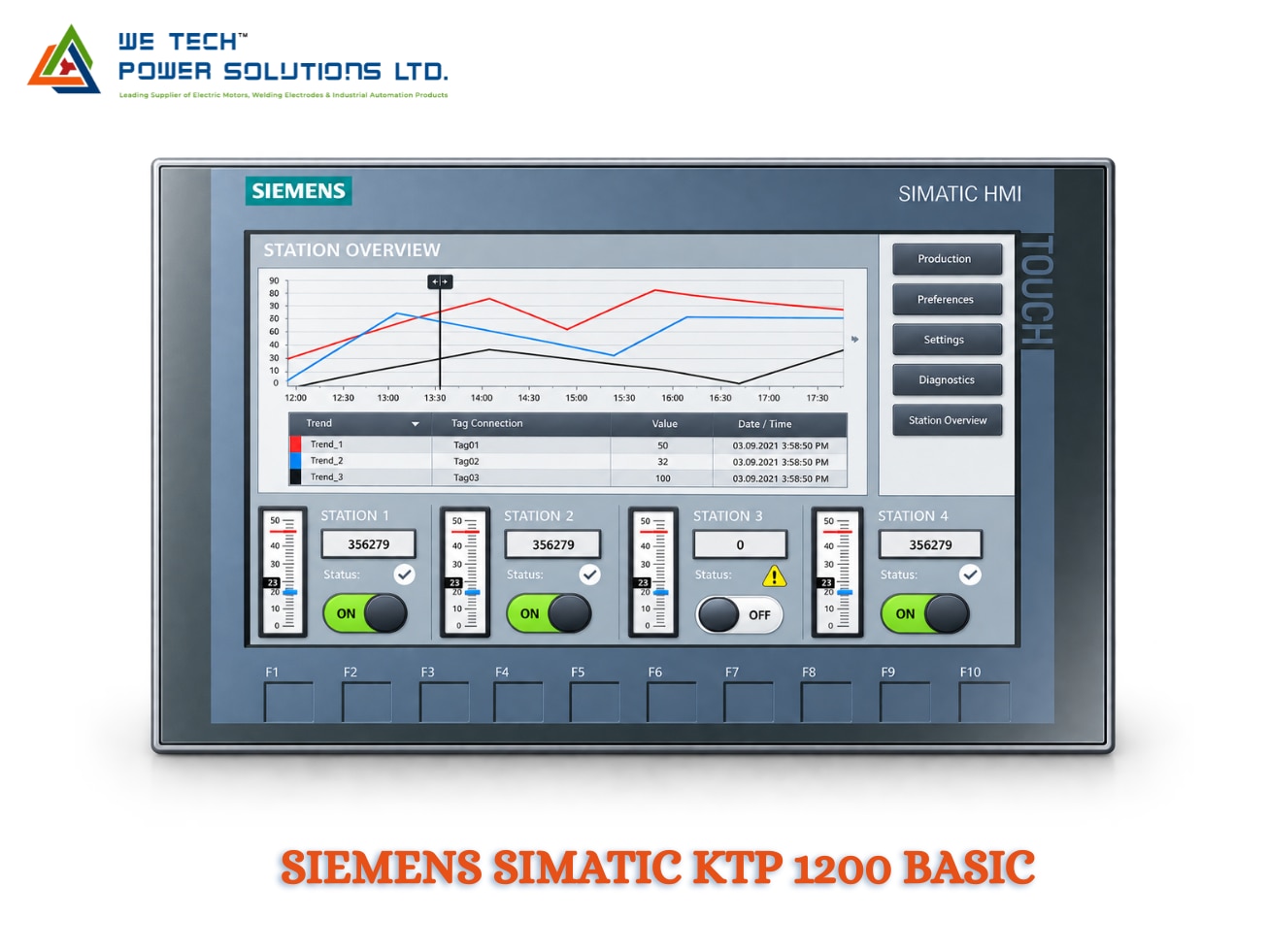

Siemens SIMATIC HMI KTP1200 Basic

Siemens SIMATIC HMI KTP1200 Basic for Large Machine Visualization

The Siemens SIMATIC HMI KTP1200 Basic is a 12-inch industrial operator panel designed for machine operation, equipment monitoring and basic process visualization. It combines a touchscreen with physical function keys, giving operators a practical interface for controlling equipment while monitoring important machine and process information.

The documented 6AV2123-2MB03-0AX0 features a 12-inch TFT widescreen display, 1280 × 800 resolution, 65,536 colors, key/touch operation and PROFINET communication. Siemens classifies it within the SIMATIC Basic Panel 2nd Generation range and currently lists the article as an active product.

We Tech Power Solutions Ltd supplies Siemens SIMATIC HMI products for OEM machines, machine builders, system integrators and industrial automation projects across Ahmedabad, Gujarat and India.

What Is Siemens KTP1200 Basic?

The KTP1200 Basic is a 12-inch SIMATIC Basic Panel intended for machines that require a larger operator interface while still focusing on straightforward HMI functionality.

It provides a visual connection between the operator and automation equipment such as:

• Siemens PLCs

• Drives

• Sensors

• Actuators

• Production equipment

• Machine-control systems

Typical operator functions include:

• Machine start/stop

• Operating-mode selection

• Parameter entry

• Alarm monitoring

• Process-value display

• Machine-status monitoring

• Production information

• Basic diagnostics

• Manual operation

• Operator guidance

12-Inch Widescreen Display

The KTP1200 Basic provides a 12-inch TFT widescreen display with LED backlighting.

Display Specifications

• Screen diagonal: 12 inches

• Display width: 261.1 mm

• Display height: 163.2 mm

• Resolution: 1280 × 800 pixels

• Colors: 65,536

• Backlight: LED

• Backlight: Dimmable

These specifications are documented by Siemens for 6AV2123-2MB03-0AX0.

The larger screen area can be used to organize several machine functions on a single HMI screen, including:

• Machine overview

• Production counters

• Process values

• Alarm lists

• Machine parameters

• Equipment status

• Diagnostic information

• Operator controls

Key + Touch Operation

The KTP1200 Basic uses a combined key/touch operating concept.

The touchscreen allows operators to navigate through screens and enter information, while physical function keys provide dedicated controls for frequently used machine operations.

The documented model provides:

• 10 physical function keys

• Analog-resistive touchscreen

• On-screen numeric keyboard

• On-screen alphanumeric keyboard

The function keys can be assigned according to the HMI project, making them useful for frequently performed operations such as:

• Start

• Stop

• Reset

• Manual mode

• Automatic mode

• Alarm acknowledgement

• Screen navigation

Siemens confirms these control characteristics for the 6AV2123-2MB03-0AX0.

PROFINET Connectivity

The KTP1200 Basic 6AV2123-2MB03-0AX0 includes a PROFINET interface for communication with compatible automation equipment.

A typical architecture can be:

SIMATIC PLC

↓

PROFINET

↓

KTP1200 Basic

↓

Machine Operator

This allows the HMI to display PLC data and provide operator commands through the configured HMI project.

Typical information exchanged can include:

• Process values

• Machine status

• Alarm information

• Setpoints

• Operating modes

• Production data

• Diagnostic information

Siemens PLC-HMI Integration

The KTP1200 Basic is well suited to Siemens-based machine automation where a larger operator display is required without moving to an advanced Comfort Panel.

A typical machine system may contain:

SIMATIC PLC + KTP1200 Basic + Drives + Sensors + Actuators

The PLC performs the control logic while the KTP1200 Basic provides the operator interface.

This separation allows operators to monitor and interact with the automation system without directly accessing the PLC program.

WinCC Basic Engineering

Siemens specifies the documented KTP1200 Basic for configuration from WinCC Basic V13 / STEP 7 Basic V13.

The engineering environment can be used to configure:

• HMI screens

• PLC tags

• Alarm messages

• Machine parameters

• Operator controls

• Screen navigation

• Process values

• Basic diagnostics

For an existing machine, always verify the exact article number and engineering-software version before modifying or replacing the HMI.

Flexible Installation Orientation

The documented KTP1200 Basic supports:

• Vertical mounting

• Landscape format

• Portrait format

Siemens specifies a permissible inclination of up to 35° without external ventilation for the documented model.

This provides machine builders with flexibility when designing the operator panel location.

24 V DC Industrial Power

The KTP1200 Basic uses a 24 V DC supply.

For the documented 6AV2123-2MB03-0AX0:

• Rated voltage: 24 V DC

• Permitted lower limit: 19.2 V DC

• Permitted upper limit: 28.8 V DC

• Rated current consumption: approximately 510 mA

These values are based on Siemens' current technical datasheet for the article.

Always follow the Siemens installation documentation for electrical connection and protection requirements.

USB & Service Connectivity

The Basic Panel 2nd Generation family also provides USB connectivity for service and practical machine-support functions.

Depending on the configured application, USB can be useful for:

• Connecting service devices

• Keyboard/mouse connection

• Barcode scanner integration

• Data handling

• Backup and restore

• Commissioning and maintenance

The exact supported USB functions should be confirmed against the Siemens manual and project configuration.

Where Is KTP1200 Basic Used?

The 12-inch display makes this HMI suitable for machines where operators need more screen area to view process information and controls.

Manufacturing Machines

Typical applications include:

• Production lines

• Assembly machines

• Automated workstations

• Manufacturing equipment

• Machine monitoring

Packaging Machinery

Potential applications include:

• Filling machines

• Cartoning equipment

• Labelling machines

• Sealing systems

• Wrapping machines

• Packaging lines

Material Handling

The KTP1200 Basic can be used for:

• Conveyor systems

• Transfer equipment

• Sorting machines

• Automated handling systems

Process Equipment

Applications can include:

• Process monitoring

• Parameter control

• Alarm visualization

• Equipment status

• Basic process operation

OEM Machinery

The panel is suitable for machine builders requiring a relatively large operator interface with key/touch operation.

Industries

Siemens KTP1200 Basic can be considered for:

• Manufacturing

• Packaging

• Automotive Components

• Food & Beverage

• Pharmaceuticals

• Material Handling

• Machine Building

• Textile Machinery

• Industrial Utilities

• Process Equipment

• OEM Automation

• Production Systems

Siemens KTP1200 Basic Technical Specifications

Specification Details

Brand Siemens

Product Family SIMATIC HMI Basic Panels

Product KTP1200 Basic

Generation Basic Panel 2nd Generation

Article Number 6AV2123-2MB03-0AX0

Product Type Basic Industrial HMI Panel

Operation Key + Touch

Display 12-inch TFT widescreen

Resolution 1280 × 800 pixels

Colors 65,536

Function Keys 10

Touch Technology Analog-resistive

Communication PROFINET

Supply Voltage 24 V DC

Rated Current 510 mA

Engineering WinCC Basic V13 / STEP 7 Basic V13

Mounting Vertical / landscape / portrait

Application Machine & basic process visualization

Lifecycle Active Product

The specifications above refer specifically to 6AV2123-2MB03-0AX0. Confirm the complete Siemens MLFB before procurement.

KTP1200 Basic vs KTP900 Basic

Feature KTP900 Basic KTP1200 Basic

Display 9' 12'

Operation Key + Touch Key + Touch

Visualization Area Large Extra Large

Resolution Model dependent 1280 × 800

Function Keys Model dependent 10

Best For Medium/large machines Large machines with more information

Communication PROFINET PROFINET

The KTP1200 Basic is a logical choice when the machine requires additional screen space for process information, alarms, parameters and operator controls.

KTP1200 Basic vs KTP1200 Basic DP

These two models should not be confused.

KTP1200 Basic

Article: 6AV2123-2MB03-0AX0

• 12-inch display

• Key/touch operation

• PROFINET interface

• 1280 × 800 resolution

• 65,536 colors

KTP1200 Basic DP

Article: 6AV2123-2MA03-0AX0

• 12-inch display

• Key/touch operation

• PROFIBUS interface

• 1280 × 800 resolution

• 65,536 colors

Siemens lists the KTP1200 Basic DP separately with its own article number and PROFIBUS interface. Both references are currently listed as active products.

Selection tip: If the machine uses PROFINET, look at the standard KTP1200 Basic. If the existing architecture requires PROFIBUS, the KTP1200 Basic DP may be the appropriate variant.

When Should You Choose KTP1200 Basic?

The KTP1200 Basic can be considered when your machine requires:

• A 12-inch industrial HMI

• Large visualization area

• Touchscreen operation

• Physical function keys

• PROFINET communication

• Siemens PLC integration

• Basic machine visualization

• Operator parameter entry

• Alarm and status monitoring

• Flexible landscape or portrait installation

For more advanced visualization, multi-touch functions, broader connectivity or modern HMI capabilities, compare the application with Siemens Comfort or Unified HMI platforms.

KTP1200 Basic Replacement & Upgrade Considerations

For an existing machine, selecting an HMI replacement based only on screen size can create compatibility problems.

Before ordering, check:

• Existing HMI article number

• PLC model

• Communication protocol

• HMI project

• TIA Portal / WinCC version

• Panel cutout

• Power supply

• Function-key requirements

• Mounting orientation

• Environmental conditions

• Product lifecycle

Siemens also offers newer SIMATIC HMI Unified Basic Panels, so new machine projects should be evaluated against the current Unified Basic range where appropriate.

Siemens KTP1200 Basic HMI Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Siemens SIMATIC HMI products for industrial automation, machine building and OEM applications.

We can assist with:

• Siemens KTP1200 Basic sourcing

• Exact article-number verification

• HMI selection

• PLC-HMI compatibility

• KTP1200 Basic vs KTP1200 Basic DP selection

• Replacement and retrofit support

• Engineering-software considerations

• Communication selection

• Industrial automation quotations

We support customers across Ahmedabad, Gujarat and India, with industrial automation requirements from UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Siemens automation product sourcing

• HMI selection assistance

• Exact MLFB verification

• PLC-HMI integration guidance

• Replacement support

• OEM automation assistance

• Industrial automation product sourcing

• Ahmedabad-based support

• Pan-India supply coordination

Frequently Asked Questions

What is Siemens KTP1200 Basic?

The Siemens SIMATIC HMI KTP1200 Basic is a 12-inch Basic Panel designed for machine visualization and operator control. The documented article number is 6AV2123-2MB03-0AX0, featuring key/touch operation, 65,536 colors and PROFINET communication.

What is the screen size of KTP1200 Basic?

The KTP1200 Basic has a 12-inch TFT widescreen display with a 1280 × 800 pixel resolution and 65,536 colors.

Does KTP1200 Basic have physical keys?

Yes. The documented KTP1200 Basic provides 10 physical function keys in addition to its analog-resistive touchscreen.

What is the difference between KTP1200 Basic and KTP1200 Basic DP?

The standard KTP1200 Basic 6AV2123-2MB03-0AX0 uses PROFINET, while the KTP1200 Basic DP 6AV2123-2MA03-0AX0 uses PROFIBUS.

Which software is used for KTP1200 Basic?

Siemens specifies configuration from WinCC Basic V13 / STEP 7 Basic V13 for the documented article. Always verify the exact hardware and software generation for an existing project.

Is Siemens KTP1200 Basic still available?

Siemens currently lists 6AV2123-2MB03-0AX0 as an active product. Availability and lead time should still be confirmed for the required quantity and market.

Get Siemens SIMATIC HMI KTP1200 Basic

Looking for a Siemens SIMATIC HMI KTP1200 Basic in Ahmedabad, Gujarat or India?

Share your Siemens article number, PLC model, required quantity, application and communication requirementwith We Tech Power Solutions Ltd for product identification, selection assistance and quotation support.
