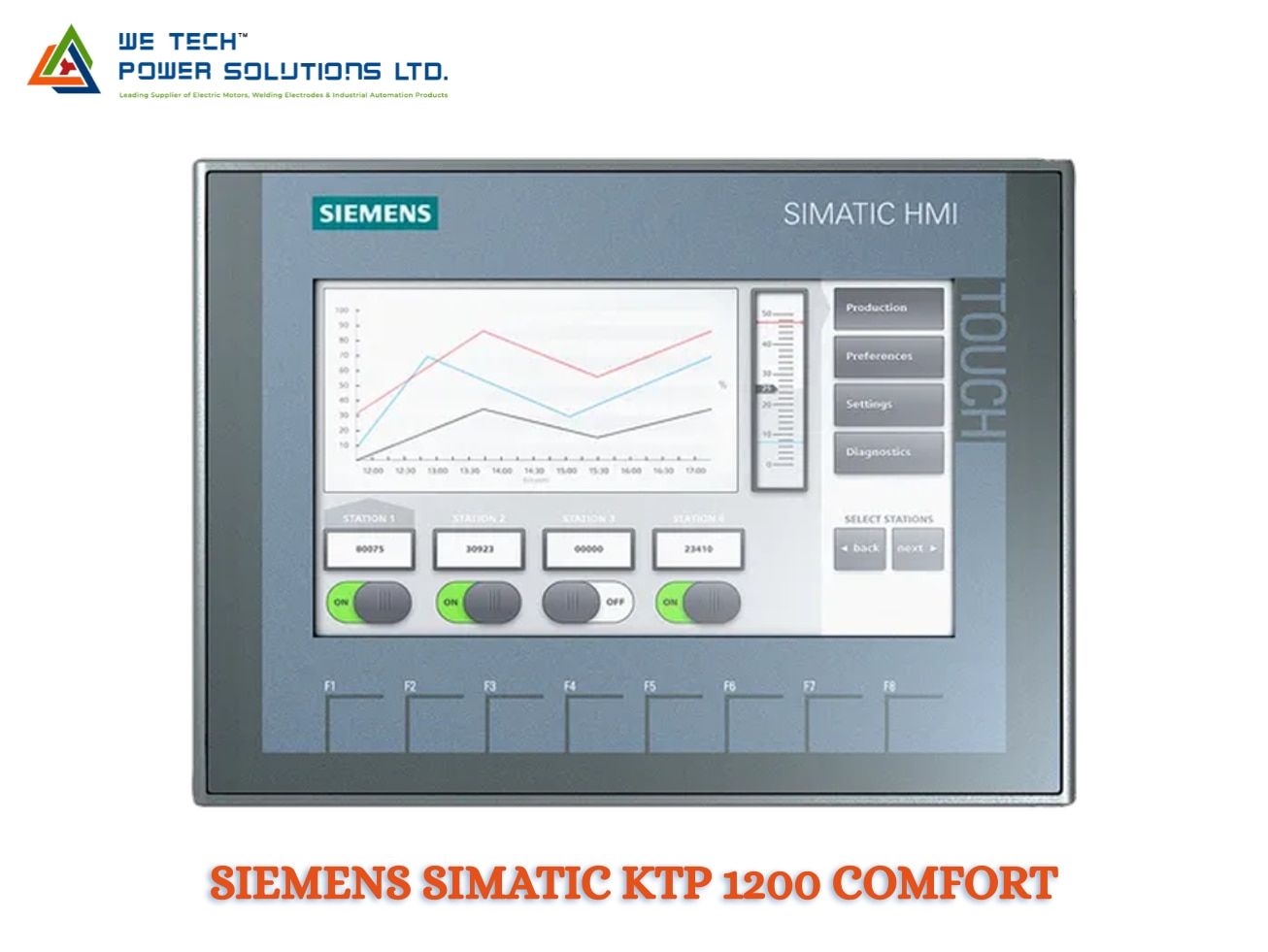

Siemens SIMATIC HMI KP1200 Comfort

Siemens SIMATIC HMI KP1200 Comfort for Large-Scale Machine & Process Visualization

The Siemens SIMATIC HMI KP1200 Comfort is a 12.1-inch industrial operator panel designed for detailed machine operation, process visualization, alarm management and production monitoring.

With its widescreen TFT display, dedicated operator keys, PROFINET connectivity and MPI/PROFIBUS DP interface, the KP1200 Comfort is suitable for industrial systems where operators need a larger visualization area together with physical key-based control.

The Siemens 6AV2124-1MC01-0AX0 is the KP1200 Comfort model with key operation, 12.1-inch widescreen TFT display, 16.7 million colors and 12 MB configuration memory.

We Tech Power Solutions Ltd supplies Siemens SIMATIC HMI products for machine builders, OEMs, system integrators, production facilities and industrial automation projects across Ahmedabad, Gujarat and India.

What Is the Siemens KP1200 Comfort?

The KP1200 Comfort is part of the Siemens SIMATIC Comfort Panel family.

It is designed for applications where operators need to view and control a large amount of machine or process information from a single industrial HMI.

Unlike the TP1200 Comfort, which uses touchscreen operation, the KP1200 Comfort is the key-operated version of the 12-inch Comfort Panel family. Siemens lists both models separately in its Comfort Panel portfolio.

Typical operator functions include:

• Machine start and stop

• Manual machine control

• Alarm acknowledgement

• Process-value monitoring

• Production-status monitoring

• Diagnostic information

• Parameter adjustment

• Recipe and production management

• Screen navigation

• Maintenance support

12.1-Inch Widescreen Display

The KP1200 Comfort provides a 12.1-inch TFT widescreen display with a resolution of 1280 × 800 pixels and 16,777,216 colors.

The larger screen area is useful when an HMI needs to display several process elements simultaneously.

For example, an operator can view:

• Production values

• Machine status

• Alarm information

• Trend data

• Process graphics

• Setpoints

• Diagnostic information

This makes the KP1200 Comfort particularly suitable for machines and processes where a smaller operator panel would limit the amount of information visible at once.

Key-Based Machine Operation

The KP1200 Comfort is designed for physical-key operation, making it different from the TP1200 touchscreen model.

Dedicated operator keys can be assigned to frequently used machine functions, helping operators perform repetitive commands without relying exclusively on touchscreen controls.

This approach can be useful in:

• Manufacturing machinery

• Packaging equipment

• Production lines

• Material-handling systems

• Machine-tool applications

• Industrial process equipment

For projects where touch operation is preferred, the corresponding TP1200 Comfort should be evaluated instead. Siemens identifies the TP1200 Comfort as the touch-operated 12-inch model.

PROFINET & PROFIBUS Connectivity

The KP1200 Comfort supports integration into Siemens industrial automation architectures.

PROFINET

PROFINET provides Ethernet-based industrial communication for connecting the HMI with compatible PLCs and automation devices.

MPI / PROFIBUS DP

The KP1200 Comfort also includes an MPI/PROFIBUS DP interface, making it relevant for existing Siemens automation installations as well as applications where PROFIBUS-based communication is required.

This combination can be especially useful for modernization projects involving existing Siemens PLC infrastructure.

Siemens PLC & HMI Integration

The KP1200 Comfort can be used as the operator interface for Siemens automation systems.

A typical architecture may include:

SIMATIC PLC

↓

PROFINET / PROFIBUS / MPI

↓

KP1200 Comfort HMI

↓

Operator

Depending on the automation project, the HMI can provide visualization for:

• PLC process values

• Machine states

• Alarms

• Production counters

• Setpoints

• Diagnostic information

• Operator commands

The exact communication architecture depends on the PLC, HMI order number and project configuration.

WinCC Comfort Engineering

The KP1200 Comfort is configured using Siemens WinCC Comfort engineering software.

For the documented 6AV2124-1MC01-0AX0 model, Siemens specifies configuration from WinCC Comfort V11.

Typical HMI projects can include:

• Graphic machine screens

• Alarm management

• Trend displays

• User administration

• Recipe handling

• Diagnostic screens

• Parameter pages

• Production monitoring

• Operator guidance

The engineering software version should always be checked against the exact HMI article number and existing project.

12 MB Configuration Memory

The KP1200 Comfort model 6AV2124-1MC01-0AX0 provides 12 MB configuration memory.

This supports HMI projects containing multiple visualization screens, alarm information and machine operating data.

The actual project requirements should still be reviewed before selecting a replacement or designing a new application.

Where Is KP1200 Comfort Used?

The 12.1-inch display makes the KP1200 Comfort suitable for applications requiring more detailed operator visualization.

Manufacturing Automation

• Production machines

• Assembly equipment

• Automated workstations

• Manufacturing lines

Packaging Machinery

• Filling machines

• Cartoning machines

• Wrapping equipment

• Labelling systems

• Packaging lines

Material Handling

• Conveyor systems

• Sorting equipment

• Transfer systems

• Automated handling machinery

Process Automation

• Process monitoring

• Parameter visualization

• Alarm management

• Equipment status monitoring

Machine Tools

• Machine operation

• Status visualization

• Parameter monitoring

• Diagnostic information

Industries & Applications

The Siemens KP1200 Comfort can be used across:

• Manufacturing

• Packaging

• Automotive

• Food & beverage

• Pharmaceuticals

• Material handling

• Machine building

• Process industries

• Industrial utilities

• OEM automation

• Production plants

The correct HMI should always be selected according to the machine environment, communication requirements, software compatibility and required operator functions.

KP1200 Comfort Technical Specifications

Parameter Specification

Brand Siemens

Product Family SIMATIC HMI Comfort Panels

Product KP1200 Comfort

Article Number 6AV2124-1MC01-0AX0

Product Type Comfort Panel

Operator Control Key operation

Display 12.1-inch TFT

Display Format Widescreen

Resolution 1280 × 800 pixels

Colors 16,777,216

Configuration Memory 12 MB

PROFINET Yes

MPI / PROFIBUS DP Yes

Operating System Windows CE 6.0

Engineering WinCC Comfort V11 or later, model-dependent

Application Machine & process visualization

Siemens' current documentation confirms the KP1200 Comfort article number, display specifications, interfaces, configuration memory and engineering environment.

KP1200 Comfort vs TP1200 Comfort

These two products are frequently confused because they share the same 12-inch Comfort Panel platform.

Feature KP1200 Comfort TP1200 Comfort

Article Number 6AV2124-1MC01-0AX0 6AV2124-0MC01-0AX0

Display 12.1' 12.1'

Resolution 1280 × 800 1280 × 800

Operation Key Touch

Product Family Comfort Panel Comfort Panel

PROFINET Yes Yes

MPI/PROFIBUS DP Yes Yes

Configuration Memory 12 MB 12 MB

Typical Use Key-based operation Touch-based operation

Siemens' product overview separately identifies KP1200 Comfort and TP1200 Comfort with different article numbers and operator interfaces.

KP1200 Comfort vs KTP1200

For SEO purposes, it is important not to treat KTP1200 Comfort as the official product name.

The Siemens Comfort Panel family identifies:

• KP1200 Comfort – key operation

• TP1200 Comfort – touch operation

The “KTP” naming is associated with Siemens' Basic Panels and other touch/key combinations, so the exact product name and article number should be verified before publishing technical specifications.

For this page, “Siemens SIMATIC HMI KP1200 Comfort” should be the primary product keyword.

Before Ordering Siemens KP1200 Comfort

Before purchasing or replacing an HMI, confirm:

1. Exact Siemens Article Number

For the key-operated KP1200 Comfort, verify:

6AV2124-1MC01-0AX0

2. Existing PLC

Check the Siemens PLC model and generation currently connected to the HMI.

3. Communication Interface

Confirm whether the application uses:

• PROFINET

• MPI

• PROFIBUS DP

4. HMI Engineering Software

Check the existing WinCC/TIA Portal project and software compatibility.

5. Panel Cutout

Confirm the existing cabinet cutout and mounting dimensions before replacement.

6. Power Supply

Verify the required 24 V DC supply and installation conditions.

7. Project Compatibility

For replacement projects, check whether the existing HMI project requires conversion or software-version changes.

Siemens KP1200 Comfort Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Siemens SIMATIC HMI products for industrial automation requirements.

We can assist with:

• KP1200 Comfort identification

• Siemens HMI selection

• Article-number verification

• HMI replacement

• PLC-HMI compatibility

• Communication interface selection

• WinCC project considerations

• OEM automation requirements

• Product quotation and sourcing

We support customers across Ahmedabad, Gujarat and India, with industrial automation enquiries from UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Siemens automation product sourcing

• HMI selection assistance

• PLC-HMI integration guidance

• Replacement and retrofit support

• OEM machine automation support

• Industrial automation product sourcing

• Ahmedabad-based support

• Pan-India supply coordination

Frequently Asked Questions

What is Siemens KP1200 Comfort HMI?

The Siemens SIMATIC HMI KP1200 Comfort is a 12.1-inch key-operated industrial Comfort Panel used for machine and process visualization. The documented 6AV2124-1MC01-0AX0 model provides PROFINET and MPI/PROFIBUS DP interfaces.

What is the screen size of KP1200 Comfort?

The KP1200 Comfort has a 12.1-inch widescreen TFT display with a resolution of 1280 × 800 pixels and 16.7 million colors.

Is KP1200 Comfort a touchscreen HMI?

No. The KP1200 Comfort is the key-operated version. Siemens separately lists the TP1200 Comfort for touch operation.

Which software is used for KP1200 Comfort?

The documented KP1200 Comfort 6AV2124-1MC01-0AX0 is configurable using WinCC Comfort V11, subject to the applicable project and engineering setup.
