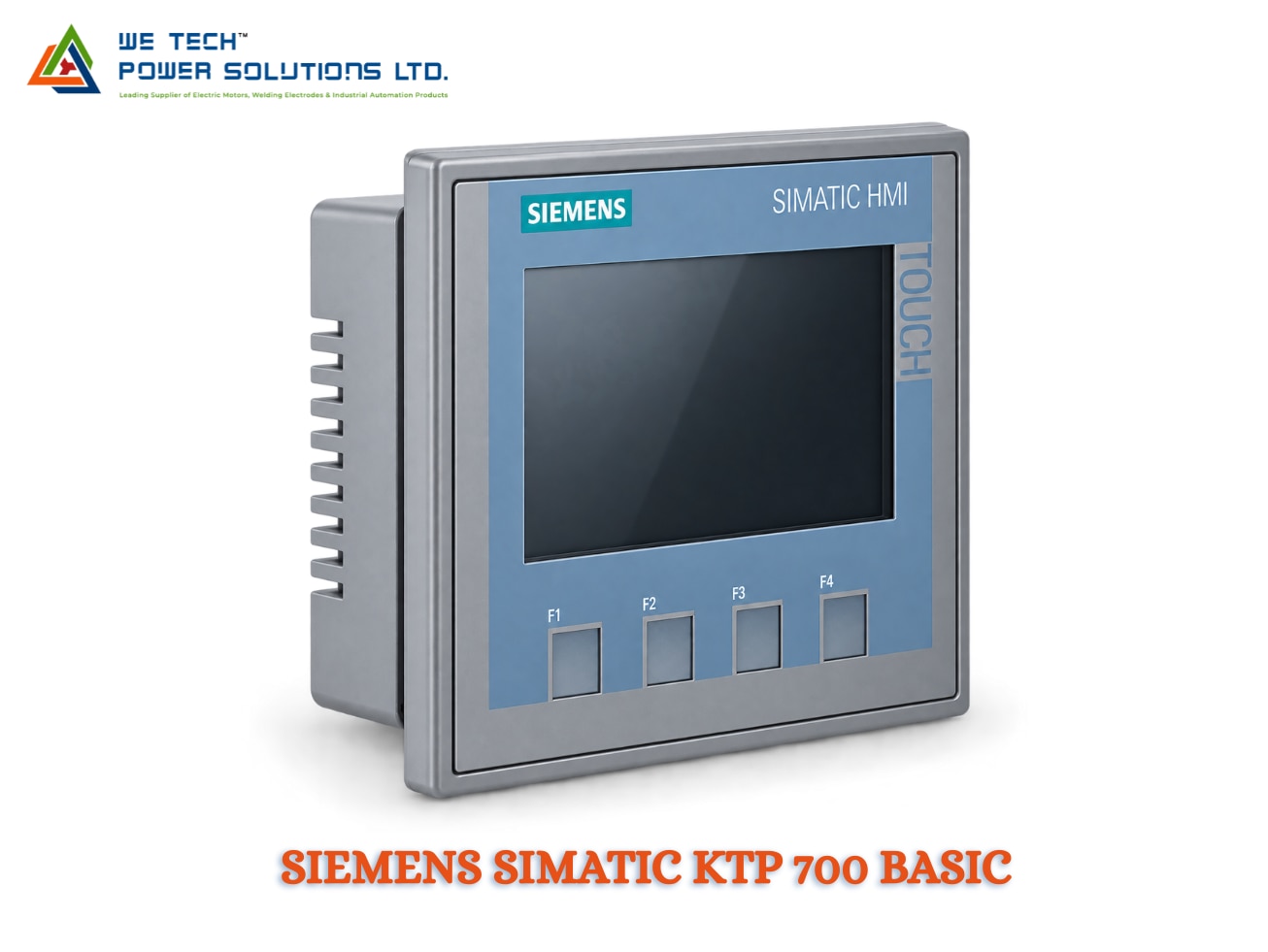

SIEMENS SIMATIC KTP 700 BASIC

Siemens SIMATIC HMI KTP700 Basic

Siemens SIMATIC HMI KTP700 Basic for Efficient Machine Operation

The Siemens SIMATIC HMI KTP700 Basic is a 7-inch industrial operator panel designed for straightforward machine control, monitoring and visualization. It combines a touchscreen with physical function keys, giving operators a practical interface for viewing machine information and performing frequently used commands.

The documented 6AV2123-2GB03-0AX0 features a 7-inch TFT widescreen display, 65,536 colors, PROFINET communication and key/touch operation. It belongs to Siemens' SIMATIC Basic Panel 2nd Generation range.

We Tech Power Solutions Ltd supplies Siemens SIMATIC HMI products for OEM machines, system integrators, machine builders and industrial automation applications across Ahmedabad, Gujarat and India.

What Is Siemens KTP700 Basic?

The KTP700 Basic is an entry-level SIMATIC HMI panel intended for simple machine and process visualization.

It provides an interface between the machine operator and automation equipment such as Siemens PLCs, drives and other connected devices.

Typical operator functions include:

• Machine start/stop commands

• Process-value visualization

• Parameter entry

• Alarm monitoring

• Machine-status display

• Operating-mode selection

• Basic diagnostics

• Production information

• Manual machine operation

• Simple process visualization

Its 7-inch format provides more visualization space than compact 4-inch Basic Panels while remaining suitable for many machine-control applications.

7-Inch Widescreen Display

The KTP700 Basic uses a 7-inch TFT widescreen display with LED backlighting.

Display Highlights

• Screen size: 7 inches

• Display type: TFT widescreen

• Display width: 154.1 mm

• Display height: 85.9 mm

• Colors: 65,536

• Backlight: LED

• Operation: Touchscreen + physical keys

These characteristics are documented by Siemens for article 6AV2123-2GB03-0AX0.

The display can be configured for:

• Machine overview screens

• Production counters

• Process values

• Alarm lists

• Operating parameters

• Equipment status

• Basic diagnostic information

Key + Touch Operation

One of the main benefits of the KTP700 Basic is its combined key and touchscreen interface.

The touchscreen provides flexible navigation and data-entry functions, while physical function keys can be assigned to frequently used machine commands.

This can be useful for:

• Start/stop operations

• Reset commands

• Manual/automatic mode

• Alarm acknowledgement

• Screen navigation

• Frequently used machine functions

The exact function-key assignment depends on the configured HMI project.

PROFINET Communication

The KTP700 Basic 6AV2123-2GB03-0AX0 provides a PROFINET interface for integration with compatible industrial automation systems. Siemens specifically identifies the product as a PROFINET Basic Panel.

A typical architecture can be represented as:

Siemens PLC → PROFINET → KTP700 Basic → Machine Operator

Through the configured communication connection, the HMI can be used for:

• PLC data visualization

• Machine commands

• Alarm monitoring

• Status information

• Parameter handling

• Operator interaction

The exact communication functions depend on the connected controller and configured project.

Siemens PLC & HMI Integration

The KTP700 Basic can be integrated into Siemens automation architectures where a straightforward operator interface is required.

A typical machine may use:

SIMATIC PLC

↓

PROFINET Network

↓

KTP700 Basic HMI

↓

Operator

This allows machine information generated by the PLC to be presented in an easy-to-understand visual interface.

TIA Portal & WinCC Basic Engineering

Siemens specifies the documented KTP700 Basic for configuration from WinCC Basic V13 / STEP 7 Basic V13.

The engineering environment can be used to configure:

• HMI screens

• PLC tags

• Alarm messages

• Operator controls

• Machine parameters

• Screen navigation

• Process values

• Basic diagnostics

For an existing installation, always verify the exact HMI article number and engineering-software version before modifying or replacing the panel.

Simple Visualization Without Unnecessary Complexity

The KTP700 Basic is intended for applications where essential machine visualization is more important than advanced HMI functionality.

A practical screen structure could include:

Machine Overview

→ Operating Mode

→ Parameters

→ Alarms

→ Diagnostics

This makes the panel suitable for machines where operators need quick access to the most important controls and information.

Applications of Siemens KTP700 Basic

Packaging Machinery

The KTP700 Basic can be used for:

• Filling machines

• Sealing equipment

• Labelling machines

• Cartoning systems

• Packaging lines

Manufacturing Equipment

Typical applications include:

• Production machinery

• Assembly equipment

• Automated workstations

• Machine monitoring

• Manufacturing lines

Conveyor & Material Handling

It can be used for:

• Conveyor systems

• Transfer equipment

• Sorting machines

• Material-handling equipment

Pumps & Utility Systems

Potential applications include:

• Pumping equipment

• Utility systems

• Water-handling machines

• Small process equipment

OEM Machines

The KTP700 Basic is also suitable for machine builders requiring a compact operator interface with touchscreen and physical-key operation.

Industries

Siemens KTP700 Basic HMI can be considered for:

• Manufacturing

• Packaging

• Automotive components

• Food & Beverage

• Material Handling

• Machine Building

• Textile Machinery

• Pumping Systems

• Industrial Utilities

• OEM Automation

• Production Equipment

KTP700 Basic Technical Specifications

Specification Details

Brand Siemens

Product Family SIMATIC HMI Basic Panels

Product KTP700 Basic

Generation Basic Panel 2nd Generation

Article Number 6AV2123-2GB03-0AX0

Product Type Basic Industrial HMI Panel

Operation Key + Touch

Display 7-inch TFT widescreen

Display Width 154.1 mm

Display Height 85.9 mm

Colors 65,536

Communication PROFINET

Backlight LED

Engineering WinCC Basic V13 / STEP 7 Basic V13

Application Machine & basic process visualization

Installation Panel mounting

The specifications above refer specifically to 6AV2123-2GB03-0AX0. Always confirm the complete Siemens MLFB before procurement.

KTP700 Basic vs KTP400 Basic

Feature KTP400 Basic KTP700 Basic

Display 4.3' 7'

Operation Key + Touch Key + Touch

Visualization Area Compact Larger

Best For Small machines Small-to-medium machines

Operator Interface Touch + keys Touch + keys

Communication PROFINET PROFINET

The KTP400 Basic is useful where panel space is highly restricted, while the KTP700 Basic provides a larger visualization area for machines requiring more information on-screen.

Both products are part of Siemens' Basic Panel 2nd Generation range.

KTP700 Basic vs KTP900 Basic

If the machine requires more screen space for process information, the KTP900 Basic provides a larger display.

Choose KTP700 Basic when:

• 7-inch visualization is sufficient

• Panel space needs to remain compact

• Basic machine control is required

• Key + touch operation is preferred

Consider KTP900 Basic when:

• More information needs to be displayed simultaneously

• Larger process graphics are required

• More screen space is useful for alarms and parameters

Siemens lists both KTP700 Basic and KTP900 Basic within its Basic Panel 2nd Generation portfolio.

When Should You Choose KTP700 Basic?

The KTP700 Basic is a suitable option when you need:

• A 7-inch industrial HMI

• Touchscreen operation

• Physical function keys

• PROFINET connectivity

• Basic machine visualization

• Siemens PLC integration

• A compact panel-mounted operator interface

• A practical HMI for OEM machinery

For applications requiring advanced visualization, extensive connectivity or more sophisticated HMI functions, a Siemens Comfort or Unified Comfort Panel may be more appropriate.

KTP700 Basic Replacement & Upgrade Considerations

When replacing an existing HMI, selecting another panel solely based on display size is not enough.

Before ordering, check:

• Existing Siemens article number

• PLC model

• PROFINET configuration

• HMI project

• TIA Portal / WinCC version

• Panel cutout

• Power supply

• Mounting arrangement

• Required function keys

• Environmental requirements

• Product lifecycle

Siemens also offers newer SIMATIC HMI Unified Basic Panels, so new machine designs should be evaluated against the current Unified Basic range where appropriate.

Siemens KTP700 Basic HMI Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Siemens SIMATIC HMI products for industrial automation applications.

We can assist with:

• Siemens KTP700 Basic sourcing

• Exact article-number verification

• HMI selection

• PLC-HMI compatibility

• Replacement and retrofit requirements

• Engineering-software compatibility

• Communication selection

• Industrial automation quotations

We support customers across Ahmedabad, Gujarat and India, along with industrial automation requirements from UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Siemens automation product sourcing

• HMI selection assistance

• Exact MLFB verification

• PLC-HMI integration guidance

• Replacement support

• OEM automation assistance

• Industrial automation product sourcing

• Ahmedabad-based support

• Pan-India supply coordination

Frequently Asked Questions

What is Siemens KTP700 Basic HMI?

The Siemens SIMATIC HMI KTP700 Basic is a 7-inch Basic Panel with key/touch operation, TFT display and PROFINET communication for simple machine visualization and operator control. The documented article number is 6AV2123-2GB03-0AX0.

What is the display size of KTP700 Basic?

The KTP700 Basic has a 7-inch TFT widescreen display with a display width of 154.1 mm and height of 85.9 mm. It supports 65,536 colors.

Does KTP700 Basic support touchscreen operation?

Yes. The KTP700 Basic uses key/touch operation, combining a touchscreen with physical function keys.

Which communication interface does KTP700 Basic use?

The documented 6AV2123-2GB03-0AX0 uses PROFINET for industrial communication.

Which software is used for KTP700 Basic?

For the documented article, Siemens specifies configuration from WinCC Basic V13 / STEP 7 Basic V13. For an existing project, the exact hardware and software generation should be verified before configuration.

Is KTP700 Basic still available?

Siemens currently lists article 6AV2123-2GB03-0AX0 as an active product. Availability and lead time should still be confirmed for the required market and quantity.

Get Siemens SIMATIC HMI KTP700 Basic

Looking for a Siemens SIMATIC HMI KTP700 Basic in Ahmedabad, Gujarat or India?

Share your Siemens article number, PLC model, required quantity, application and communication requirementwith We Tech Power Solutions Ltd for product identification, selection assistance and quotation support.
