SIEMENS SIMATIC KTP 900 BASIC

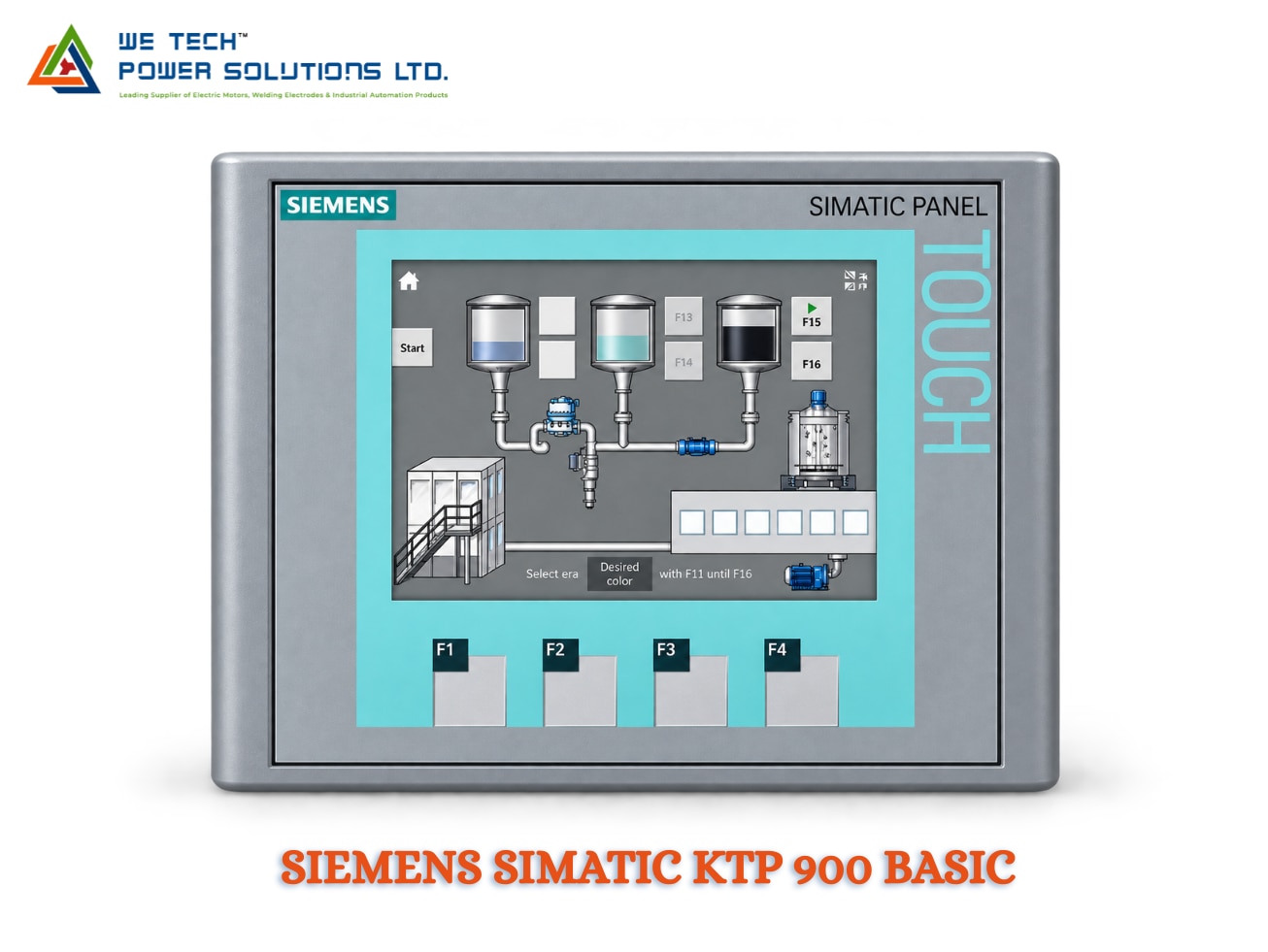

Siemens SIMATIC HMI KTP900 Basic

Siemens SIMATIC HMI KTP900 Basic for Flexible Machine Visualization

The Siemens SIMATIC HMI KTP900 Basic is a 9-inch industrial operator panel designed for machine control, equipment monitoring and straightforward process visualization. Its combination of touchscreen operation and physical function keys gives operators a practical way to control machines while viewing important process information.

The documented 6AV2123-2JB03-0AX0 features a 9-inch TFT display, 65,536 colors, PROFINET communication and key/touch operation. It belongs to the Siemens SIMATIC Basic Panel 2nd Generation family. Siemens currently lists this article as an active product.

We Tech Power Solutions Ltd supplies Siemens SIMATIC HMI products for OEMs, machine builders, system integrators and industrial automation applications across Ahmedabad, Gujarat and India.

What Is Siemens KTP900 Basic?

The KTP900 Basic is an entry-level SIMATIC HMI operator panel developed for applications where operators need a larger visualization area without moving to a higher-end Comfort HMI.

It provides an interface between the operator and automation equipment such as PLCs, drives and machine components.

Typical HMI functions can include:

• Machine start/stop commands

• Process-value visualization

• Parameter entry

• Alarm display

• Machine-status monitoring

• Operating-mode selection

• Production information

• Basic diagnostics

• Manual machine operation

• Process visualization

The 9-inch format provides more screen space than the KTP400 and KTP700 Basic, making it useful for machines with more information to display.

9-Inch TFT Widescreen Display

The KTP900 Basic is built around a 9-inch TFT widescreen display.

Display Highlights

• Screen size: 9 inches

• Display type: TFT

• Colors: 65,536

• Operation: Touch + physical keys

• Backlight: LED

• Display format: Widescreen

Siemens specifically identifies the 6AV2123-2JB03-0AX0 as a 9-inch TFT Basic Panel with 65,536 colors.

The larger display area can be used for:

• Machine overview screens

• Production counters

• Process parameters

• Alarm lists

• Equipment status

• Diagnostic screens

• Operator controls

• Trend and value visualization

Key + Touch Operator Interface

The KTP900 Basic combines a touchscreen with physical function keys.

This gives machine operators two methods of interaction:

Touchscreen

For navigation, parameter entry and screen-based controls.

Function Keys

For frequently used machine commands that benefit from dedicated physical buttons.

Depending on the HMI project, function keys can be assigned to actions such as:

• Start

• Stop

• Reset

• Manual mode

• Automatic mode

• Alarm acknowledgement

• Screen navigation

The actual key assignment depends on the configured application.

PROFINET Communication

The documented 6AV2123-2JB03-0AX0 provides a PROFINET interface for integration with compatible automation systems.

A typical machine architecture can be represented as:

SIMATIC PLC

↓

PROFINET

↓

KTP900 Basic HMI

↓

Machine Operator

Through the configured PLC-HMI connection, operators can monitor machine values, issue commands and respond to alarms.

Siemens PLC & HMI Integration

The KTP900 Basic is particularly suitable for Siemens-based machine automation where a straightforward operator interface is required.

A typical application may include:

• Siemens SIMATIC PLC

• KTP900 Basic HMI

• PROFINET network

• Sensors and actuators

• Drives

• Machine equipment

The HMI can display information received from the PLC and provide operator commands through configured screens.

The exact PLC compatibility and communication configuration should always be checked against the project requirements.

WinCC Basic Engineering

Siemens specifies the documented KTP900 Basic for configuration using WinCC Basic V13 / STEP 7 Basic V13.

The engineering environment can be used to configure:

• HMI screens

• PLC tags

• Alarm messages

• Operator controls

• Parameters

• Screen navigation

• Machine-status information

• Process values

For an existing installation, verify the HMI article number and software/project generation before planning modifications or replacement.

Practical Visualization for Machine Operators

The KTP900 Basic provides enough display space to organize multiple machine functions in a clear operator interface.

For example:

Main Machine Screen

Machine status + operating mode + production information

Parameter Screen

Setpoints + machine parameters + operating values

Alarm Screen

Active alarms + alarm history + acknowledgement

Diagnostic Screen

Machine status + device information + troubleshooting data

This structure can make routine machine operation easier without requiring an advanced HMI platform.

Where Is KTP900 Basic Used?

Packaging Machinery

The KTP900 Basic can be used for:

• Filling machines

• Sealing machines

• Labelling machines

• Cartoning systems

• Wrapping equipment

• Packaging lines

Manufacturing Machines

Typical applications include:

• Production machinery

• Assembly equipment

• Automated workstations

• Machine monitoring

• Manufacturing lines

Material Handling

Potential applications include:

• Conveyor systems

• Transfer equipment

• Sorting machines

• Automated handling systems

Process Equipment

The panel can be used for:

• Process monitoring

• Parameter visualization

• Alarm handling

• Equipment-status display

• Operator control

OEM Machines

The KTP900 Basic is suitable for machine builders requiring a mid-to-large visualization panel with key/touch operation.

Industries

Siemens KTP900 Basic can be considered for:

• Manufacturing

• Packaging

• Automotive Components

• Food & Beverage

• Material Handling

• Machine Building

• Textile Machinery

• Industrial Utilities

• Process Equipment

• OEM Automation

• Production Systems

Siemens KTP900 Basic Technical Specifications

Specification Details

Brand Siemens

Product Family SIMATIC HMI Basic Panels

Product KTP900 Basic

Generation Basic Panel 2nd Generation

Article Number 6AV2123-2JB03-0AX0

Product Type Basic Industrial HMI Panel

Display 9-inch TFT

Colors 65,536

Operation Key + Touch

Communication PROFINET

Engineering WinCC Basic V13 / STEP 7 Basic V13

Application Machine & basic process visualization

Installation Panel mounting

Lifecycle Active Product

Siemens currently identifies 6AV2123-2JB03-0AX0 as an active product. Always confirm the complete MLFB before procurement because related KTP900/SIPLUS products have different article numbers and specifications.

KTP900 Basic vs KTP700 Basic

Feature KTP700 Basic KTP900 Basic

Display 7' 9'

Operation Key + Touch Key + Touch

Visualization Area Medium Larger

Communication PROFINET PROFINET

Best For Compact-to-medium machines Machines requiring more screen space

Both belong to the Siemens Basic Panel 2nd Generation family, but the KTP900 provides a larger visualization area for applications where more machine information needs to be displayed.

KTP900 Basic vs KTP1200 Basic

The KTP1200 Basic is the larger option in the same family.

Choose KTP900 Basic when:

• A 9-inch display is sufficient

• The machine requires more screen space than a 7-inch HMI

• Panel dimensions need to remain moderate

• Key + touch operation is required

• PROFINET communication is required

Consider KTP1200 Basic when:

• A larger operator interface is needed

• More information must be displayed simultaneously

• The machine requires a larger visualization area

Siemens lists both KTP900 Basic and KTP1200 Basic as standard 2nd Generation Basic Panels.

When Should You Choose KTP900 Basic?

The KTP900 Basic can be a suitable choice when the application requires:

• A 9-inch industrial HMI

• Touchscreen operation

• Physical function keys

• PROFINET connectivity

• Siemens PLC integration

• More visualization space than KTP700

• A practical interface for OEM machinery

• Basic machine and process visualization

For advanced visualization, extensive connectivity or newer HMI functionality, Siemens Comfort or Unified Comfort panels may be a better fit.

KTP900 Basic Replacement & Upgrade Considerations

For existing machines, replacing an HMI requires more than matching the screen size.

Before selecting a replacement, verify:

• Existing Siemens article number

• PLC model

• Communication interface

• HMI project

• TIA Portal / WinCC version

• Panel cutout

• Power supply

• Function-key requirements

• Installation conditions

• Product lifecycle

For new machine designs, it is also worth comparing the required functionality with Siemens' newer SIMATIC HMI Unified Basic Panels. Siemens currently maintains a separate Unified Basic Panel portfolio.

Siemens KTP900 Basic HMI Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Siemens SIMATIC HMI products for industrial automation, machine building and OEM applications.

We can assist with:

• Siemens KTP900 Basic sourcing

• Exact article-number verification

• HMI selection

• PLC-HMI compatibility

• Replacement and retrofit support

• Engineering-software considerations

• Communication selection

• Industrial automation quotations

We support customers across Ahmedabad, Gujarat and India, along with industrial automation requirements from UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Siemens automation product sourcing

• HMI selection assistance

• Exact MLFB verification

• PLC-HMI integration guidance

• Replacement support

• OEM automation assistance

• Industrial automation product sourcing

• Ahmedabad-based support

• Pan-India supply coordination

Frequently Asked Questions

What is Siemens KTP900 Basic?

The Siemens SIMATIC HMI KTP900 Basic is a 9-inch Basic Panel designed for machine visualization and operator control. The documented article number is 6AV2123-2JB03-0AX0, with key/touch operation, 65,536 colors and PROFINET communication.

What is the screen size of KTP900 Basic?

The KTP900 Basic has a 9-inch TFT display with 65,536 colors.

Does KTP900 Basic have touchscreen and physical keys?

Yes. The KTP900 Basic uses key/touch operation, combining a touchscreen with physical function keys.

Which communication interface does KTP900 Basic use?

The documented 6AV2123-2JB03-0AX0 provides a PROFINET interface for communication with compatible automation systems.

Which software is used for KTP900 Basic?

Siemens specifies WinCC Basic V13 / STEP 7 Basic V13 for configuration of the documented article. Always verify the exact hardware and engineering-software generation for an existing project.

Is Siemens KTP900 Basic still available?

Siemens currently lists 6AV2123-2JB03-0AX0 as an active product. Availability and lead time should nevertheless be confirmed for the required market and quantity.
