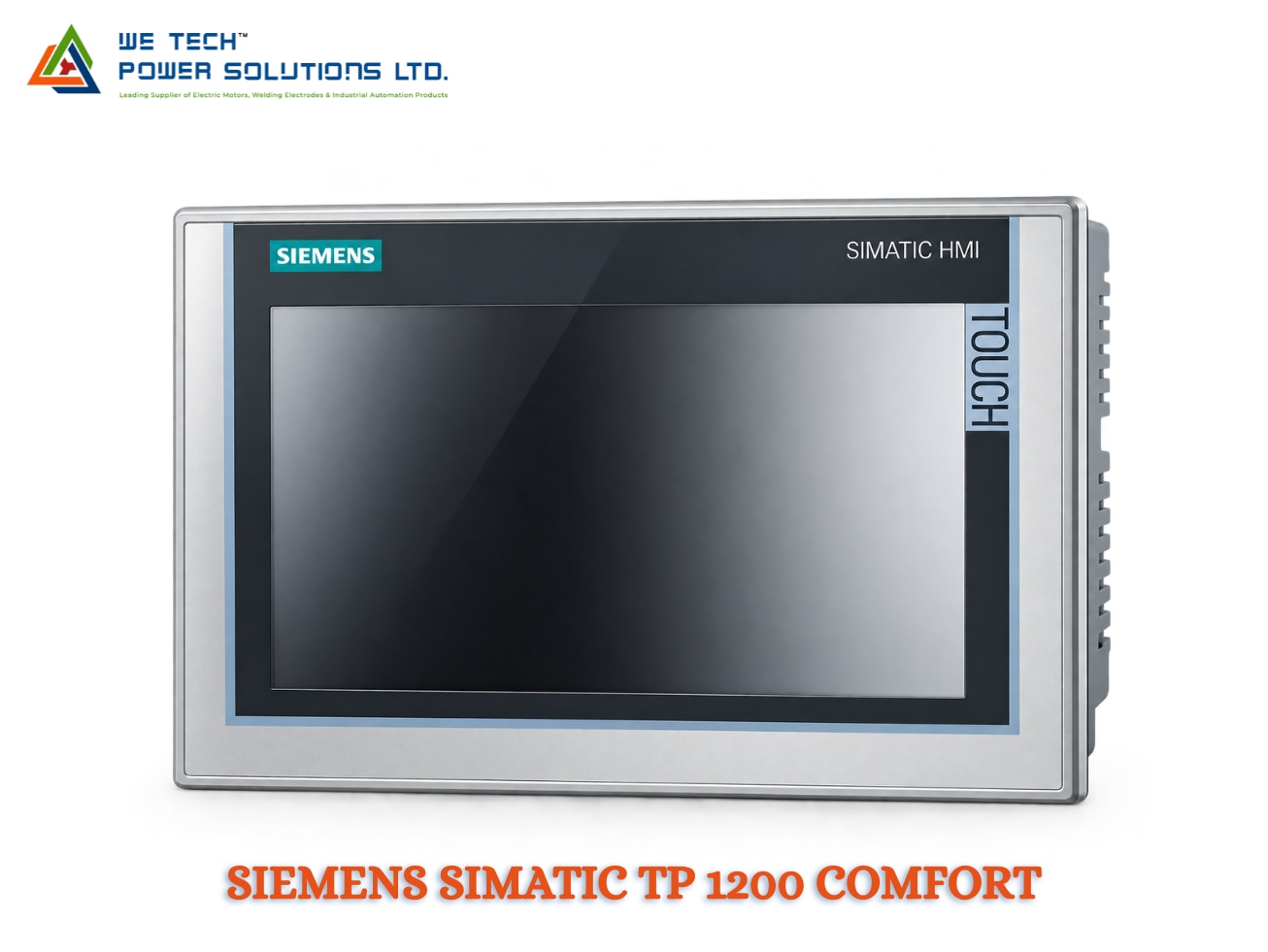

Siemens SIMATIC HMI TP1200 Comfort

Siemens SIMATIC HMI TP1200 Comfort for Large-Scale Machine & Process Visualization

The Siemens SIMATIC HMI TP1200 Comfort is a 12.1-inch industrial touchscreen operator panel designed for machine operation, process visualization, alarm management and production monitoring.

With its large widescreen display, touch operation and industrial communication interfaces, the TP1200 Comfort gives operators a practical interface for monitoring and controlling Siemens PLC-based automation systems.

The Siemens 6AV2124-0MC01-0AX0 features a 12.1-inch TFT display, 1280 × 800 resolution, 16.7 million colors, PROFINET, MPI/PROFIBUS DP, 12 MB configuration memory and Windows CE 6.0. Siemens currently identifies this article as an active product.

We Tech Power Solutions Ltd supplies Siemens SIMATIC HMI products for OEMs, machine builders, system integrators, production facilities and industrial automation projects across Ahmedabad, Gujarat and India.

What Is Siemens TP1200 Comfort?

The TP1200 Comfort is a touch-operated HMI from the Siemens SIMATIC Comfort Panel family.

It acts as the operator interface between a machine's automation system and its users, allowing operators to visualize process information, acknowledge alarms, change parameters and control configured machine functions.

Typical applications include:

• Machine operation

• Process visualization

• Alarm management

• Production monitoring

• Parameter adjustment

• Equipment diagnostics

• Recipe handling

• Machine-status monitoring

• Operator guidance

Its 12.1-inch format provides considerably more screen area than smaller Comfort Panel models, making it useful when the HMI needs to display detailed machine graphics and multiple process values.

12.1-Inch Widescreen Display

The TP1200 Comfort features a 12.1-inch TFT widescreen display.

Key display specifications include:

• Screen diagonal: 12.1 inches

• Display width: 261.1 mm

• Display height: 163.2 mm

• Resolution: 1280 × 800 pixels

• Colors: 16,777,216

• Backlight: LED

• Touch operation: Yes

Siemens' datasheet confirms the 12.1-inch display, 1280 × 800 resolution and 16.7 million colors for article 6AV2124-0MC01-0AX0.

The larger display area can be used for:

• Process graphics

• Alarm lists

• Trend displays

• Machine parameters

• Production counters

• Status indicators

• Diagnostic screens

• Operator controls

Touchscreen Operation for Flexible Machine Control

The TP1200 Comfort is designed around touchscreen operation.

Instead of dedicated physical function keys, operators interact directly with configured screen objects.

Common touch-based functions can include:

• Start/stop commands

• Navigation

• Numeric value entry

• Parameter selection

• Alarm acknowledgement

• Machine-mode selection

• Recipe selection

• Maintenance controls

• Diagnostic navigation

This makes the TP1200 Comfort suitable for applications where the operator interface needs to change according to the machine operating mode.

Siemens PLC & HMI Integration

The TP1200 Comfort can be integrated with compatible Siemens automation systems.

A typical architecture can be:

SIMATIC PLC

↓

PROFINET / PROFIBUS / MPI

↓

TP1200 Comfort HMI

↓

Machine Operator

The HMI can display information from the connected automation system, including:

• PLC process values

• Machine status

• Alarm conditions

• Production information

• Setpoints

• Equipment status

• Diagnostic data

The exact communication configuration depends on the PLC, HMI article number and engineering project.

PROFINET Connectivity

The TP1200 Comfort includes a PROFINET interface for Ethernet-based industrial communication.

This allows the panel to be incorporated into Siemens automation networks and connected to compatible controllers and industrial devices.

PROFINET is particularly useful for modern machine architectures where the HMI, PLC and other automation components communicate over an industrial Ethernet network.

Siemens lists PROFINET as one of the communication interfaces of the TP1200 Comfort.

MPI / PROFIBUS DP Interface

The TP1200 Comfort also provides an MPI/PROFIBUS DP interface.

This makes the panel relevant to existing Siemens installations that use PROFIBUS-based communication, as well as retrofit and modernization projects where existing PLC infrastructure needs to be retained.

Siemens explicitly lists MPI/PROFIBUS DP alongside PROFINET for the 6AV2124-0MC01-0AX0.

WinCC Comfort Engineering

The TP1200 Comfort is configured using Siemens WinCC Comfort engineering software.

For the documented 6AV2124-0MC01-0AX0, Siemens specifies configuration from WinCC Comfort V11.

Depending on the project, the HMI application can contain:

• Machine visualization

• Alarm management

• Trend displays

• Recipe handling

• User administration

• Parameter screens

• Diagnostic information

• Production monitoring

• Operator guidance

For an existing installation, the exact engineering-software version and HMI project compatibility should be verified before replacement.

12 MB Configuration Memory

The standard TP1200 Comfort article 6AV2124-0MC01-0AX0 provides 12 MB configuration memory.

This provides space for HMI projects containing multiple screens, alarms, process graphics and operator functions.

Actual project requirements depend on the amount of graphics, recipes, alarms and historical information configured.

Large HMI for Detailed Machine Visualization

The TP1200 Comfort is particularly useful when a machine needs more screen space than a compact 7-inch or 9-inch HMI can provide.

A larger screen can allow operators to view several types of information at the same time.

For example:

Machine Overview + Production Data + Alarms + Process Values

can be arranged on a single operator screen rather than requiring frequent navigation between multiple pages.

This can be valuable for machines with complex operating sequences or multiple process parameters.

Where Is Siemens TP1200 Comfort Used?

Manufacturing Machinery

• Assembly machines

• Production equipment

• Automated workstations

• Manufacturing lines

• Machine-control systems

Packaging Machinery

• Filling machines

• Cartoning equipment

• Labelling machines

• Wrapping systems

• Packaging lines

Material Handling

• Conveyor systems

• Sorting equipment

• Transfer systems

• Automated handling machines

Process Equipment

• Process monitoring

• Equipment status

• Parameter visualization

• Alarm management

• Operator control

OEM Machinery

• Special-purpose machines

• Custom automation systems

• Production equipment

• Machine-building projects

Industries & Applications

The Siemens TP1200 Comfort can be considered for:

• Manufacturing

• Packaging

• Automotive

• Food & beverage

• Pharmaceuticals

• Material handling

• Machine building

• Process industries

• Industrial utilities

• OEM automation

• Production plants

The correct HMI should be selected according to display requirements, communication network, PLC compatibility, software environment and machine conditions.

TP1200 Comfort Technical Specifications

Parameter Specification

Brand Siemens

Product Family SIMATIC HMI Comfort Panels

Product TP1200 Comfort

Article Number 6AV2124-0MC01-0AX0

Product Type Comfort Panel

Operator Control Touchscreen

Display 12.1-inch TFT

Display Format Widescreen

Resolution 1280 × 800 pixels

Colors 16,777,216

Display Width 261.1 mm

Display Height 163.2 mm

Configuration Memory 12 MB

Communication PROFINET

Additional Interface MPI / PROFIBUS DP

Operating System Windows CE 6.0

Engineering WinCC Comfort V11

Application Machine & process visualization

These specifications refer specifically to 6AV2124-0MC01-0AX0. Always verify the complete Siemens order number before procurement or replacement.

TP1200 Comfort vs TP900 Comfort

Both are touch-operated Siemens Comfort Panels, but the TP1200 provides a larger visualization area.

Feature TP900 Comfort TP1200 Comfort

Display 9' 12.1'

Operation Touch Touch

Resolution 800 × 480 1280 × 800

Configuration Memory 12 MB 12 MB

Main Advantage Compact HMI Larger visualization area

Typical Use Compact/medium machines Larger or information-intensive machines

Choose TP1200 when the application requires more screen area, higher resolution or more detailed machine visualization.

TP1200 Comfort vs KP1200 Comfort

These two models have the same 12-inch class display size but different operator interfaces.

Feature TP1200 Comfort KP1200 Comfort

Operator Interface Touch Physical keys

Display 12.1' 12.1'

Resolution 1280 × 800 1280 × 800

Product Family Comfort Panel Comfort Panel

Main Advantage Flexible touchscreen interface Tactile key-based control

Best For Dynamic screen-based operation Dedicated physical controls

Siemens separately identifies TP1200 Comfort as the touch-operated model and KP1200 Comfort as the key-operated model.

TP1200 Comfort vs TP1200 Comfort PRO

These should not be treated as the same product.

TP1200 Comfort

The standard panel is the 6AV2124-0MC01-0AX0 and provides 12 MB configuration memory with Windows CE 6.0 and WinCC Comfort V11 configuration.

TP1200 Comfort PRO

The PRO version is a separate product family designed for support-arm installation and has different hardware and engineering specifications. Siemens documents, for example, the 6AV2124-0MC24-0AX0 TP1200 Comfort PRO with 24 MB configuration memory and WinCC Comfort V14 SP1 with HSP.

For procurement, always confirm whether the application requires the standard panel or the PRO version.

Before Ordering Siemens TP1200 Comfort

Before purchasing the TP1200 Comfort for a new machine or replacement project, verify:

1. Exact Article Number

For the standard TP1200 Comfort:

6AV2124-0MC01-0AX0

2. Display Requirement

Confirm that the 12.1-inch, 1280 × 800 display meets the HMI project's requirements.

3. PLC Compatibility

Check the connected Siemens PLC model and communication architecture.

4. Communication Network

Confirm whether the installation requires:

• PROFINET

• MPI

• PROFIBUS DP

5. Engineering Software

Verify the existing WinCC/TIA Portal environment and project compatibility.

6. Panel Cutout

Check the control-panel dimensions and mounting requirements before replacement.

7. Power Supply

Confirm the required 24 V DC supply and installation conditions.

8. Existing HMI Project

For retrofit projects, verify whether the existing HMI project requires conversion or engineering-software changes.

Siemens TP1200 Comfort HMI Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Siemens SIMATIC HMI products for industrial automation and machine-control requirements.

We can assist with:

• TP1200 Comfort selection

• Siemens HMI identification

• Article-number verification

• HMI replacement

• PLC-HMI compatibility

• Communication interface selection

• WinCC project considerations

• OEM automation requirements

• Product quotation and sourcing

We support customers across Ahmedabad, Gujarat and India, with industrial automation enquiries from UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

WTPSL's Siemens automation portfolio includes SIMATIC HMIs and other Siemens industrial automation products, with product-selection and quotation support.

Why Choose We Tech Power Solutions Ltd?

• Siemens automation product sourcing

• HMI selection assistance

• PLC-HMI integration guidance

• Replacement and retrofit support

• OEM machine automation support

• Industrial automation product sourcing

• Ahmedabad-based support

• Pan-India supply coordination

Frequently Asked Questions

What is Siemens TP1200 Comfort HMI?

The Siemens SIMATIC HMI TP1200 Comfort is a 12.1-inch touch-operated industrial Comfort Panel designed for machine and process visualization. The 6AV2124-0MC01-0AX0 model provides PROFINET, MPI/PROFIBUS DP and 12 MB configuration memory.

What is the screen size of TP1200 Comfort?

The TP1200 Comfort has a 12.1-inch widescreen TFT display with 1280 × 800 pixel resolution and 16.7 million colors.

Is TP1200 Comfort a touchscreen HMI?

Yes. The TP1200 Comfort is the touch-operated 12-inch standard Comfort Panel. Siemens separately offers the KP1200 Comfort for key-based operation.

Which software is used for TP1200 Comfort?

For the standard 6AV2124-0MC01-0AX0, Siemens specifies configuration from WinCC Comfort V11.

Is TP1200 Comfort still available?

Yes. Siemens currently lists article 6AV2124-0MC01-0AX0 as an active product in its Industry Mall.

Get Siemens TP1200 Comfort HMI

Looking for a Siemens SIMATIC HMI TP1200 Comfort in Ahmedabad, Gujarat or India?

Share your Siemens article number, existing HMI model, PLC model, communication interface, quantity or machine application with We Tech Power Solutions Ltd for product-selection and quotation support.
