SIEMENS SIMATIC TP 2200 COMFORT

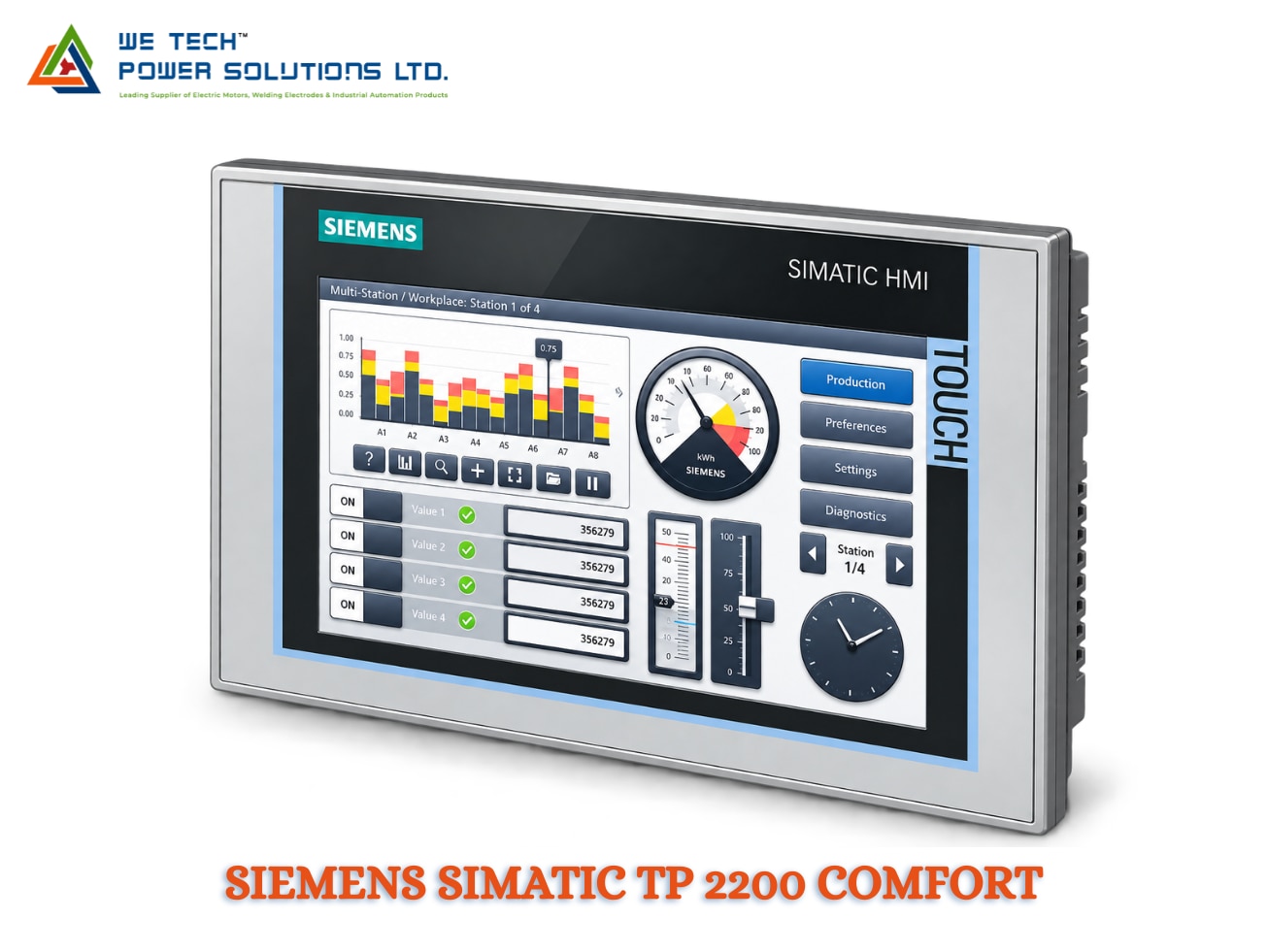

Siemens SIMATIC HMI TP2200 Comfort

Siemens SIMATIC HMI TP2200 Comfort for Large-Scale Industrial Visualization

The Siemens SIMATIC HMI TP2200 Comfort is a large-format touchscreen operator panel designed for machine operation, process visualization and industrial monitoring applications where a bigger display area is required.

With a 21.5-inch widescreen TFT display, Full HD resolution, touch operation, PROFINET and MPI/PROFIBUS DP connectivity, the TP2200 Comfort provides operators with a spacious interface for viewing machine data, alarms, trends, parameters and process information.

The documented 6AV2124-0XC02-0AX1 features a 21.5-inch display, 1920 × 1080 resolution, 16 million colors, 24 MB configuration memory and WEC 2013.

We Tech Power Solutions Ltd supports Siemens HMI sourcing and replacement requirements for machine builders, OEMs, system integrators and industrial automation users across Ahmedabad, Gujarat and India.

Why Choose a 21.5-Inch Comfort HMI?

Large industrial machines often require more visualization space than a compact HMI can provide.

The TP2200 Comfort allows operators to view more information on one screen, reducing the need to move between multiple visualization pages.

It can be used for:

• Machine overview screens

• Production monitoring

• Process values

• Alarm and event lists

• Trend displays

• Recipe management

• Maintenance information

• Equipment diagnostics

• Operator parameter settings

This makes it particularly useful for complex machines and process systems where clear visualization is important.

21.5-Inch Full HD Touchscreen

The TP2200 Comfort provides a 21.5-inch TFT widescreen display with 1920 × 1080 pixel resolution.

Display Highlights

• Screen size: 21.5 inches

• Display type: TFT

• Resolution: 1920 × 1080

• Colors: 16,777,216

• Operation: Touchscreen

• Display format: Widescreen

• Display width: 475.2 mm

• Display height: 267.3 mm

The Full HD resolution provides enough screen area for detailed machine graphics, process diagrams, alarms, trends and operator controls.

Touch-Based Machine Operation

The TP2200 Comfort is designed for direct touchscreen operation.

Operators can interact with configured HMI elements to:

• Start and stop equipment

• Change operating modes

• Enter process parameters

• Acknowledge alarms

• Navigate machine screens

• Monitor production status

• Access maintenance information

• View diagnostic messages

• Manage recipes

The exact functions available depend on the configured WinCC project and connected automation system.

PROFINET & PROFIBUS Connectivity

The TP2200 Comfort supports integration into Siemens automation architectures through PROFINET and MPI/PROFIBUS DP interfaces.

This allows the HMI to communicate with compatible PLCs and automation components.

Typical communication applications include:

Siemens PLC → PROFINET → TP2200 Comfort

or

Siemens PLC → PROFIBUS DP / MPI → TP2200 Comfort

This makes the panel useful for both modern Ethernet-based automation systems and existing Siemens installations using PROFIBUS/MPI.

24 MB Configuration Memory

The documented TP2200 Comfort provides 24 MB of configuration memory.

This supports larger HMI projects containing multiple screens, graphics, alarms, recipes and visualization functions.

The actual project size depends on the number of screens, graphics, alarms, recipes and other configured functions.

WinCC Engineering & Configuration

The documented TP2200 Comfort 6AV2124-0XC02-0AX1 is configurable from WinCC Comfort V14 SP1 with HSP.

Depending on the existing automation project, engineering may involve:

• HMI screen configuration

• PLC tag integration

• Alarm configuration

• Trend configuration

• Recipe management

• User administration

• Diagnostic screens

• Machine-status visualization

• Operator controls

For replacement projects, always verify the existing HMI project and engineering-software version before ordering.

Designed for Detailed Machine Visualization

The large display makes TP2200 Comfort suitable where operators need to see several data elements simultaneously.

For example, a single screen can be designed to show:

Machine Status + Production Counter + Alarm List + Process Values + Trends + Operator Controls

This can be particularly useful for production lines, process equipment and large OEM machines.

Applications

Production & Manufacturing

Suitable for:

• Production lines

• Assembly systems

• Automated machinery

• Manufacturing equipment

• Machine monitoring

Packaging

Useful for:

• Filling machines

• Cartoning systems

• Wrapping machines

• Labelling equipment

• Packaging lines

Material Handling

Applications can include:

• Conveyor systems

• Sorting equipment

• Transfer systems

• Automated handling machines

Process Automation

The large display can support:

• Process monitoring

• Parameter management

• Alarm visualization

• Trend monitoring

• Equipment status

OEM Machines

The TP2200 Comfort can be considered for:

• Special-purpose machines

• Custom automation equipment

• Industrial production systems

• Complex machine interfaces

Industries

The Siemens TP2200 Comfort can be used across industries such as:

• Manufacturing

• Automotive

• Packaging

• Food & Beverage

• Pharmaceuticals

• Material Handling

• Machine Building

• Process Industries

• Industrial Utilities

• OEM Automation

• Production Plants

TP2200 Comfort Technical Overview

Specification Details

Brand Siemens

Product Family SIMATIC HMI Comfort Panels

Product TP2200 Comfort

Article Number 6AV2124-0XC02-0AX1

Product Type Touch-operated Comfort Panel

Display 21.5-inch TFT

Resolution 1920 × 1080 pixels

Colors 16,777,216

Operation Touchscreen

Configuration Memory 24 MB

PROFINET Yes

MPI / PROFIBUS DP Yes

Operating System Windows Embedded Compact 2013

Engineering WinCC Comfort V14 SP1 with HSP or higher

Application Machine & process visualization

Specifications above refer specifically to 6AV2124-0XC02-0AX1. Always confirm the complete article number before procurement because Siemens offers different TP2200 variants and product generations.

TP2200 Comfort vs TP1900 Comfort

Feature TP1900 Comfort TP2200 Comfort

Display 18.5-inch 21.5-inch

Resolution 1366 × 768 1920 × 1080

Operation Touch Touch

Configuration Memory 24 MB 24 MB

Best For Large machine visualization Extra-large, detailed visualization

The TP2200 Comfort is a better fit when a larger display and Full HD resolution are important for the application.

Siemens' Comfort Panel overview lists both TP1900 Comfort and TP2200 Comfort as separate products.

TP2200 Comfort vs TP2200 Comfort PRO

These should not be treated as the same product.

TP2200 Comfort

The standard TP2200 Comfort is intended for conventional panel-based installation.

TP2200 Comfort PRO

The TP2200 Comfort PRO is a separate protected HMI family designed for support-arm/pedestal installation and demanding machine-side operating environments.

Siemens documentation identifies TP2200 Comfort PRO separately, with a 21.5-inch display and different installation architecture.

If the machine requires support-arm mounting, check the TP2200 Comfort PRO range rather than the standard TP2200 Comfort.

TP2200 Comfort Replacement & Lifecycle Considerations

For existing installations, the exact Siemens article number is important.

The documented 6AV2124-0XC02-0AX1 is listed by Siemens with successor information pointing to 6AV2128-3XB06-0AX1. Siemens also provides migration/upgrade information for TP2200 Comfort applications.

Therefore, before purchasing a TP2200 Comfort for a new project, it is advisable to confirm:

• Existing HMI article number

• PLC model

• WinCC/TIA Portal version

• Communication protocol

• Existing HMI project

• Panel cutout

• Mounting arrangement

• Replacement availability

• Suitable current-generation Siemens alternative

For retrofit projects, We Tech Power Solutions Ltd can help identify the required article number and replacement path.

Before Ordering Siemens TP2200 Comfort

Confirm the Article Number

Provide the complete Siemens MLFB/order number whenever possible.

Check Your Existing PLC

Confirm compatibility with:

• SIMATIC S7 PLC

• PROFINET

• PROFIBUS DP

• MPI

• Existing communication architecture

Check Engineering Software

Verify the WinCC version used for the existing project.

Check Panel Dimensions

The 21.5-inch display requires sufficient control-panel space and the correct installation cutout.

Check Replacement Compatibility

If replacing an existing TP2200, confirm:

• Panel dimensions

• Electrical connections

• Communication interfaces

• HMI project compatibility

• Software requirements

• Successor product

Siemens TP2200 Comfort Supplier in Ahmedabad & India

We Tech Power Solutions Ltd provides Siemens industrial automation product sourcing and technical selection support from Ahmedabad, Gujarat.

We can assist with:

• Siemens TP2200 Comfort sourcing

• Exact article-number identification

• HMI replacement selection

• PLC-HMI compatibility

• WinCC project considerations

• Communication selection

• Retrofit requirements

• Industrial automation product quotations

Our supply support covers Ahmedabad, Gujarat and customers across India, with industrial automation enquiries from UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Siemens automation product sourcing

• HMI selection assistance

• Article-number verification

• Replacement guidance

• PLC-HMI integration support

• OEM automation support

• Industrial automation product sourcing

• Ahmedabad-based assistance

• Pan-India supply coordination

Frequently Asked Questions

What is Siemens TP2200 Comfort?

Siemens SIMATIC HMI TP2200 Comfort is a large-format touchscreen Comfort Panel designed for industrial machine and process visualization. The documented 0XC02-0AX1 version has a 21.5-inch display, Full HD resolution, PROFINET, MPI/PROFIBUS DP and 24 MB configuration memory.

What is the screen size of TP2200 Comfort?

The TP2200 Comfort has a 21.5-inch TFT widescreen display with 1920 × 1080 pixel resolution and 16.7 million colors.

Is TP2200 Comfort a touchscreen HMI?

Yes. The TP2200 Comfort is a touch-operated Siemens Comfort Panel designed for operator control and machine/process visualization.

Which software is used to configure TP2200 Comfort?

For the documented 6AV2124-0XC02-0AX1, Siemens specifies configuration from WinCC Comfort V14 SP1 with HSP. Always check the exact article number and project-generation requirements.

What is the difference between TP2200 Comfort and TP2200 Comfort PRO?

The standard TP2200 Comfort is intended for conventional panel installation, while TP2200 Comfort PRO is designed as a protected HMI for support-arm/pedestal mounting and machine-side operation.

Get Siemens TP2200 Comfort HMI

Looking for a Siemens SIMATIC HMI TP2200 Comfort in Ahmedabad, Gujarat or India?

Share your complete Siemens article number, existing HMI model, PLC model, communication protocol, quantity and application with We Tech Power Solutions Ltd for product identification, replacement guidance and quotation support.
