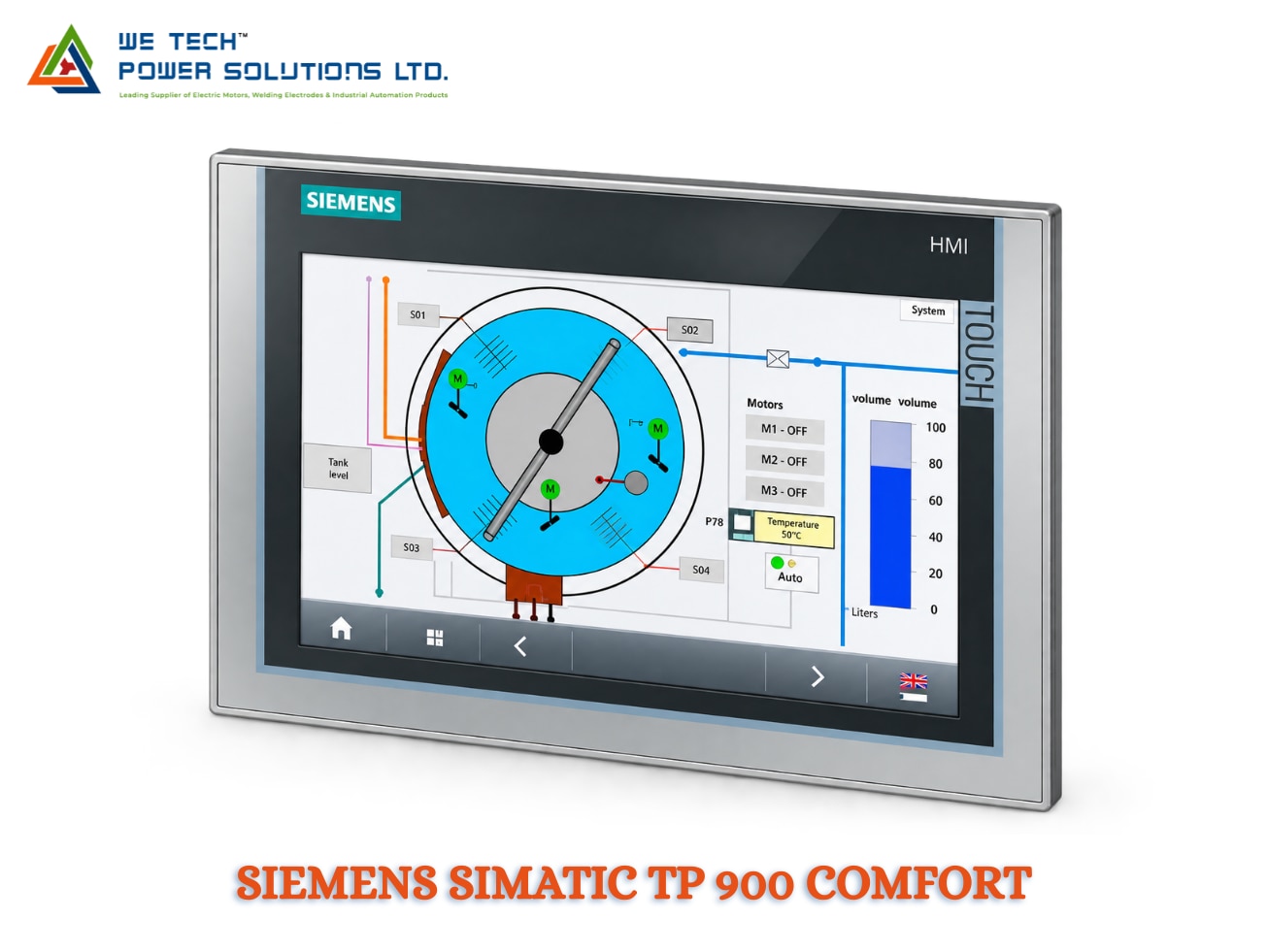

Siemens SIMATIC HMI TP900 Comfort

Siemens SIMATIC HMI TP900 Comfort for Advanced Machine & Process Visualization

The Siemens SIMATIC HMI TP900 Comfort is a 9-inch industrial touchscreen operator panel designed for machine operation, process visualization, alarm handling and production monitoring.

With its 9-inch widescreen TFT display, touch operation, PROFINET connectivity and MPI/PROFIBUS DP interface, the TP900 Comfort provides a practical operator interface for Siemens PLC-based automation systems.

The Siemens 6AV2124-0JC01-0AX0 is a TP900 Comfort Panel with 800 × 480 resolution, 16.7 million colors, 12 MB configuration memory and Windows CE 6.0. Siemens currently lists this article as an active product.

We Tech Power Solutions Ltd supplies Siemens SIMATIC HMI products for OEMs, machine builders, system integrators and industrial automation projects across Ahmedabad, Gujarat and India.

What Is Siemens TP900 Comfort?

The TP900 Comfort is a touch-operated HMI from the Siemens SIMATIC Comfort Panel family.

It acts as the operator interface between the automation system and machine personnel, allowing users to monitor process information and control configured machine functions from a single industrial panel.

Typical functions include:

• Machine start and stop

• Process-value monitoring

• Alarm acknowledgement

• Parameter adjustment

• Machine-status visualization

• Production monitoring

• Diagnostic information

• Recipe handling

• Operator guidance

• Process navigation

The TP900 Comfort belongs to Siemens' standard Comfort Panel range and is specifically identified as a 9-inch touch panel.

9-Inch Widescreen Touch Display

The TP900 Comfort features a 9-inch TFT widescreen display with:

• Resolution: 800 × 480 pixels

• Colors: 16,777,216

• Display width: 195 mm

• Display height: 117 mm

• Touch technology: Analog-resistive

• Backlight: Dimmable LED

The display provides enough working space for machine screens containing process values, alarms, status indicators, control buttons and diagnostic information.

Touch Operation for Flexible Machine Control

The TP900 Comfort is designed specifically for touchscreen operation.

Unlike the KP900 Comfort, which uses physical keys, the TP900 allows machine functions to be configured directly as touch elements on the HMI screen.

Operators can interact with:

• Start/stop controls

• Navigation buttons

• Numeric input fields

• Selection menus

• Alarm acknowledgement

• Machine mode selection

• Parameter fields

• Diagnostic screens

The documented TP900 Comfort uses an analog-resistive touchscreen and provides 40 configurable touch buttons that can be used as direct keys in compatible S7 applications.

PROFINET & MPI/PROFIBUS DP Connectivity

The TP900 Comfort supports communication with compatible industrial automation systems through:

PROFINET

The Ethernet-based PROFINET interface can connect the HMI with compatible Siemens PLCs and other industrial devices.

MPI / PROFIBUS DP

The panel also provides an MPI/PROFIBUS DP interface, making it useful for existing Siemens automation systems as well as modernization and retrofit projects.

Siemens specifies both PROFINET and MPI/PROFIBUS DP for the 6AV2124-0JC01-0AX0.

Siemens PLC-HMI Integration

A typical automation architecture can connect the TP900 Comfort with a Siemens PLC through the appropriate communication network.

SIMATIC PLC

↓

PROFINET / PROFIBUS / MPI

↓

TP900 Comfort HMI

↓

Machine Operator

The HMI can display information such as:

• PLC process values

• Machine status

• Alarm conditions

• Production counters

• Setpoints

• Equipment status

• Diagnostic information

The exact communication setup depends on the PLC, HMI article number and engineering project.

WinCC Comfort Engineering

The TP900 Comfort is configured using Siemens WinCC Comfort engineering software.

For the documented 6AV2124-0JC01-0AX0, Siemens specifies configuration from WinCC Comfort V11.

Depending on the application, an HMI project can include:

• Machine visualization

• Alarm management

• Trend displays

• Recipe handling

• User administration

• Parameter pages

• Diagnostic screens

• Production monitoring

• Operator guidance

For replacement projects, the existing HMI project and engineering software version should always be checked before installation.

12 MB Configuration Memory

The TP900 Comfort provides 12 MB configuration memory.

This allows the panel to accommodate HMI projects containing multiple visualization screens, alarms, process information and operator functions.

Actual project requirements depend on the amount of graphics, alarms, recipes and historical information included in the application.

Flexible Panel Installation

The TP900 Comfort can be integrated into industrial control panels where a 9-inch operator interface is required.

Its widescreen format makes it suitable for displaying machine information across a broad operator interface while maintaining a relatively compact panel footprint.

For specialized installations, the exact mounting orientation, environmental limits and enclosure requirements should be confirmed from the selected Siemens documentation.

Where Is Siemens TP900 Comfort Used?

The TP900 Comfort can be used wherever operators need touchscreen access to machine or process information.

Manufacturing Machinery

• Assembly machines

• Production equipment

• Automated workstations

• Manufacturing lines

Packaging Equipment

• Filling machines

• Cartoning machines

• Labelling systems

• Wrapping equipment

• Packaging lines

Material Handling

• Conveyor systems

• Transfer equipment

• Sorting machines

• Automated handling systems

Process Equipment

• Process monitoring

• Equipment status

• Parameter visualization

• Alarm management

OEM Machines

• Special-purpose machines

• Compact automation systems

• Machine-building applications

• Production equipment

Industries & Applications

The Siemens TP900 Comfort can be considered for:

• Manufacturing

• Packaging

• Automotive

• Food & beverage

• Pharmaceuticals

• Material handling

• Machine building

• Process industries

• Industrial utilities

• OEM automation

• Production systems

The correct HMI should be selected according to communication requirements, screen size, machine environment and software compatibility.

TP900 Comfort Technical Specifications

Parameter Specification

Brand Siemens

Product Family SIMATIC HMI Comfort Panels

Product TP900 Comfort

Article Number 6AV2124-0JC01-0AX0

Product Type Comfort Panel

Operator Control Touchscreen

Display 9-inch TFT

Display Format Widescreen

Resolution 800 × 480 pixels

Colors 16,777,216

Touch Technology Analog-resistive

Configuration Memory 12 MB

PROFINET Yes

MPI / PROFIBUS DP Yes

Operating System Windows CE 6.0

Engineering WinCC Comfort V11

Backlight LED, dimmable

Application Machine & process visualization

These specifications refer specifically to 6AV2124-0JC01-0AX0. The complete Siemens article number should be verified before procurement or replacement.

TP900 Comfort vs KP900 Comfort

The TP900 Comfort and KP900 Comfort belong to the same 9-inch Comfort Panel class, but their operator interfaces are different.

Feature TP900 Comfort KP900 Comfort

Operation Touch Physical keys

Display 9' 9'

Resolution 800 × 480 800 × 480

Main Interface Touchscreen Function keys

Product Family Comfort Panel Comfort Panel

PROFINET Yes Yes

MPI/PROFIBUS DP Yes Yes

Typical Use Touch-based operation Key-based operation

Siemens identifies TP900 Comfort and KP900 Comfort as separate 9-inch products with different article numbers and operator concepts.

Choose TP900 Comfort when flexible touchscreen operation is preferred. Choose KP900 Comfort when physical keys are more suitable for the machine environment.

TP900 Comfort vs TP1200 Comfort

Both are touch-operated Siemens Comfort Panels, but the display size is different.

Feature TP900 Comfort TP1200 Comfort

Display 9' 12'

Operation Touch Touch

TP900 Resolution 800 × 480 1280 × 800

Typical Use Compact/medium visualization Larger visualization area

Product Family Comfort Panel Comfort Panel

Siemens' Comfort Panel product overview lists TP900 and TP1200 as separate touch-operated models.

Before Ordering Siemens TP900 Comfort

Before purchasing the TP900 Comfort for a new machine or replacement project, verify:

1. Exact Article Number

Confirm the requirement:

6AV2124-0JC01-0AX0

2. Display Requirement

Check whether the 9-inch, 800 × 480 display is suitable for the required HMI screens.

3. PLC Compatibility

Confirm the connected Siemens PLC and its communication architecture.

4. Communication Network

Check whether the system requires:

• PROFINET

• MPI

• PROFIBUS DP

5. Engineering Software

Verify the existing WinCC/TIA Portal environment and project compatibility.

6. Panel Cutout

Check cabinet dimensions and mounting requirements before replacement.

7. Power Supply

Confirm the required 24 V DC supply and installation conditions.

8. Existing HMI Project

For retrofit applications, check whether the existing HMI project requires conversion or engineering-software changes.

Siemens TP900 Comfort HMI Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Siemens SIMATIC HMI products for industrial automation and machine-control requirements.

We can assist with:

• TP900 Comfort selection

• Siemens HMI identification

• Article-number verification

• HMI replacement

• PLC-HMI compatibility

• Communication interface selection

• WinCC project considerations

• OEM automation requirements

• Product quotation and sourcing

We support customers across Ahmedabad, Gujarat and India, with industrial automation enquiries from UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Siemens automation product sourcing

• HMI selection assistance

• PLC-HMI integration guidance

• Replacement and retrofit support

• OEM machine automation support

• Industrial automation product sourcing

• Ahmedabad-based support

• Pan-India supply coordination

WTPSL's automation portfolio includes Siemens SIMATIC HMI and other industrial automation products, with product-selection and quotation support.

Frequently Asked Questions

What is Siemens TP900 Comfort HMI?

The Siemens SIMATIC HMI TP900 Comfort is a 9-inch touch-operated industrial Comfort Panel used for machine and process visualization. The 6AV2124-0JC01-0AX0 model provides PROFINET, MPI/PROFIBUS DP and 12 MB configuration memory.

What is the screen size of TP900 Comfort?

The TP900 Comfort has a 9-inch widescreen TFT display with 800 × 480 pixel resolution and 16.7 million colors.

Is TP900 Comfort a touchscreen HMI?

Yes. The TP900 Comfort uses an analog-resistive touchscreen for operator control.

Which software is used for TP900 Comfort?

For the documented 6AV2124-0JC01-0AX0 model, Siemens specifies WinCC Comfort V11 for configuration.

Can TP900 Comfort communicate with Siemens PLCs?

Yes. The TP900 Comfort provides PROFINET and MPI/PROFIBUS DP interfaces for compatible Siemens automation systems.
