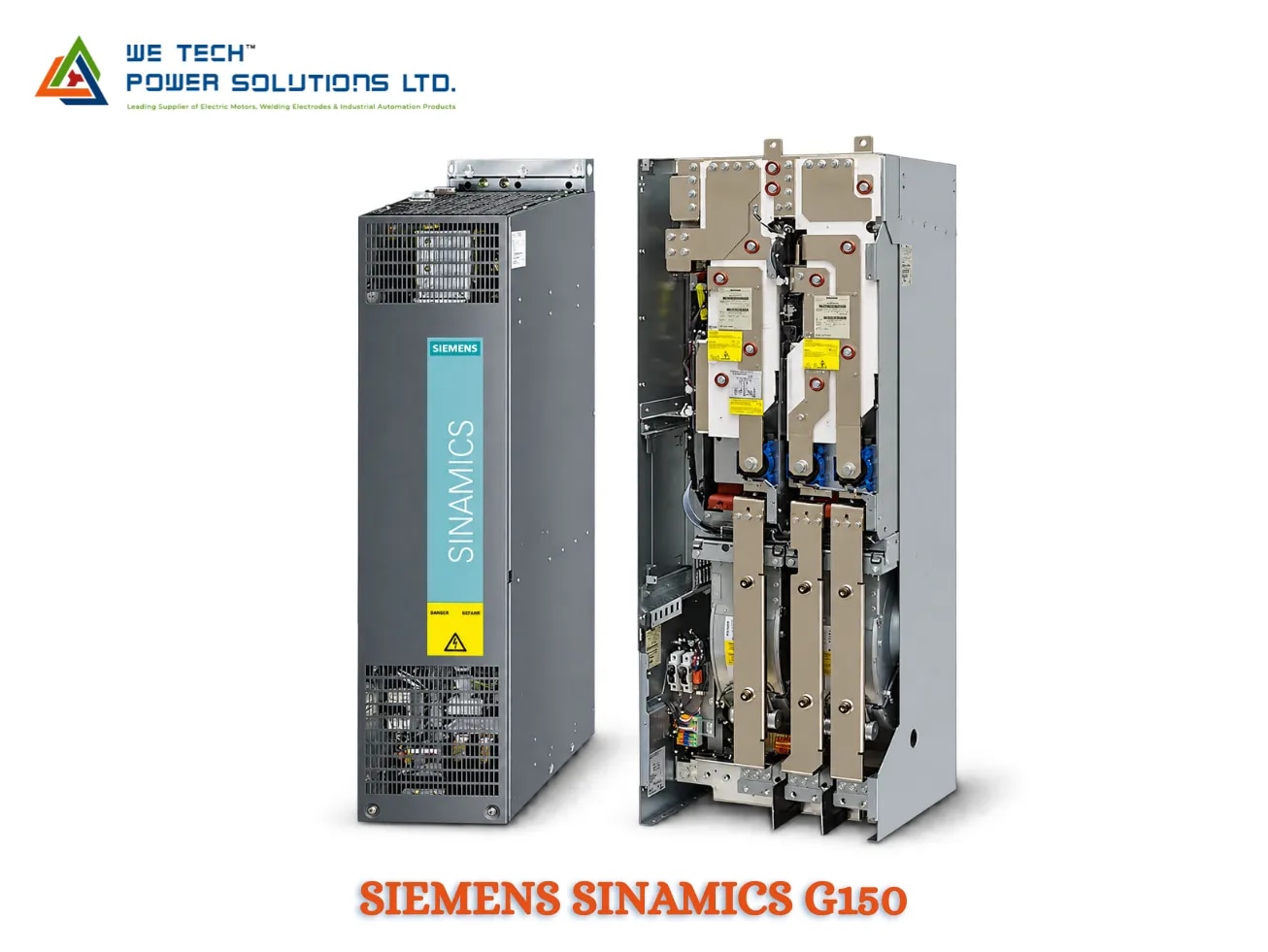

SIEMENS SINAMICS G150

Siemens SINAMICS G150 AC Drive for High-Power Industrial Applications.

The Siemens SINAMICS G150 AC Drive is a high-power cabinet-based variable frequency drive designed for demanding industrial applications where reliable motor speed control, flexible configuration, and efficient operation are required. It is particularly suited to large pumps, fans, compressors, conveyors, mills, mixers, extruders, and other heavy industrial equipment.

We Tech Power Solutions Ltd supplies Siemens SINAMICS G150 AC Drive solutions for manufacturers, plant operators, OEMs, machine builders, and system integrators across Ahmedabad, Gujarat, and India.

About Siemens SINAMICS G150 AC Drive

The SINAMICS G150 is part of Siemens' medium- and high-power drive portfolio. It is available in cabinet configurations and supports different voltage and power combinations to meet the requirements of large industrial motors. Siemens currently lists G150 solutions from 75 kW up to 2700 kW depending on the supply voltage and selected configuration.

The drive supports U/f and vector control, with configurations available for applications involving asynchronous, synchronous, and synchronous-reluctance motors. Model and configuration options also include industrial communication technologies such as PROFINET, PROFIBUS DP, Ethernet/IP, MODBUS TCP, and SINAMICS Link.

Its cabinet design provides an integrated solution for large motor-drive installations where centralized equipment, service accessibility, and reliable operation are important.

Key Features of SINAMICS G150

• High-power cabinet drive design

• Wide range of voltage and power configurations

• U/f and vector control options

• Suitable for asynchronous and synchronous motors

• PROFINET and other communication options

• Flexible I/O expansion

• Integrated safety functions on supported configurations

• User-friendly operator panel

• TIA Portal engineering support

• Designed for demanding industrial environments

Where Is Siemens SINAMICS G150 Used?

The SINAMICS G150 AC Drive is designed for applications where large motors require controlled and reliable variable-speed operation.

Pumps

G150 drives can be used for large pumping systems in industrial plants, water infrastructure, and process applications where motor speed needs to be controlled according to system demand.

Fans

Large ventilation and industrial fan systems can use G150 drives for controlled motor operation and process regulation.

Compressors

The drive is suitable for compatible compressor applications where variable-speed operation is required.

Conveyors

Large belt and material-handling systems can use high-power drives for controlled motor operation and process coordination.

Mills

G150 applications include mills and other heavy industrial equipment requiring controlled motor operation. Siemens specifically identifies mills among typical G150 applications.

Extruders and Mixers

The G150 can be used in suitable extrusion and mixing applications where industrial motors require variable-speed control.

Industries Using Siemens SINAMICS G150

The SINAMICS G150 can be used across industries such as:

• Oil & Gas Industry

• Water & Wastewater Industry

• Paper Industry

• Metals Industry

• Chemical Industry

• Cement Industry

• Mining Industry

• Food & Beverage Industry

• Marine Industry

• Manufacturing Industry

• Process Industry

• Power & Utilities

• Material Handling

• General Industrial Automation

Siemens identifies applications and industries including pumps, fans, compressors, mills, conveyors, paper, metals, oil and gas, marine, and water/wastewater.

Technical Product Overview

• Product Type: High-power cabinet frequency converter

• Product Family: Siemens SINAMICS G150

• Input Supply: 380–480 V, 500–600 V, or 660–690 V 3-phase depending on model

• Power Range: Model-dependent, up to 2700 kW for listed configurations

• Motor Control: U/f and vector control

• Compatible Motors: Asynchronous, synchronous, and synchronous-reluctance motors

• Communication: PROFINET, PROFIBUS DP, Ethernet/IP, MODBUS TCP, SINAMICS Link depending on configuration

• Installation: Cabinet / industrial installation

• Protection: IP20, IP21, IP23, IP43, or IP54 depending on configuration

• Application: Pumps, fans, compressors, conveyors, mills, mixers, extruders, and other high-power applications

Technical ratings, voltage, power, protection level, communication interfaces, and available functions depend on the selected SINAMICS G150 configuration. Confirm the complete Siemens order number before purchase.

How to Select the Right SINAMICS G150 Drive?

Selecting a high-power AC drive requires more than matching the motor's kW rating. The complete electrical and mechanical application should be reviewed before selecting the drive.

Consider:

• Motor rated power

• Motor rated current

• Motor voltage

• Input supply voltage

• Motor type

• Load characteristics

• Required speed range

• Overload requirements

• Communication protocol

• Cooling and installation conditions

• Protection requirements

• Braking requirements

• Existing PLC and automation system

Providing the motor nameplate, existing drive part number, application details, and required quantity helps with accurate product selection.

Why Choose We Tech Power Solutions Ltd?

For high-power drive applications, accurate product selection is essential. The drive must match the motor, supply voltage, load characteristics, control requirements, communication system, and installation environment.

We Tech Power Solutions Ltd supplies Siemens automation and drive products and supports customers with product identification, application-based selection, and quotation requirements.

Customers searching for a Siemens SINAMICS G150 AC Drive Supplier in Ahmedabad can share their motor details, required power rating, existing drive information, application, and quantity with our team.

We support OEMs, manufacturers, plant operators, system integrators, and industrial customers across Gujarat and India.

Frequently Asked Questions

1. What is Siemens SINAMICS G150 AC Drive used for?

The SINAMICS G150 is used for high-power variable-speed motor applications such as pumps, fans, compressors, conveyors, mills, mixers, and extruders.

2. What power range is available in SINAMICS G150?

The available power depends on the selected voltage and configuration. Siemens currently lists G150 configurations from 75 kW up to 2700 kW across different supply-voltage ranges.

3. How can I select the correct SINAMICS G150 AC Drive?

Selection depends on motor power, current, voltage, motor type, load characteristics, input supply, communication requirements, protection level, and application. Share the motor nameplate and application details with We Tech Power Solutions Ltd for product selection and quotation assistance.

Looking for a Siemens SINAMICS G150 AC Drive Supplier in Ahmedabad for a high-power industrial application?

Share your motor nameplate, required power, Siemens part number, application, input voltage, and quantity with We Tech Power Solutions Ltd.

Contact our automation team today for SINAMICS G150 product selection, availability, and quotation support.
