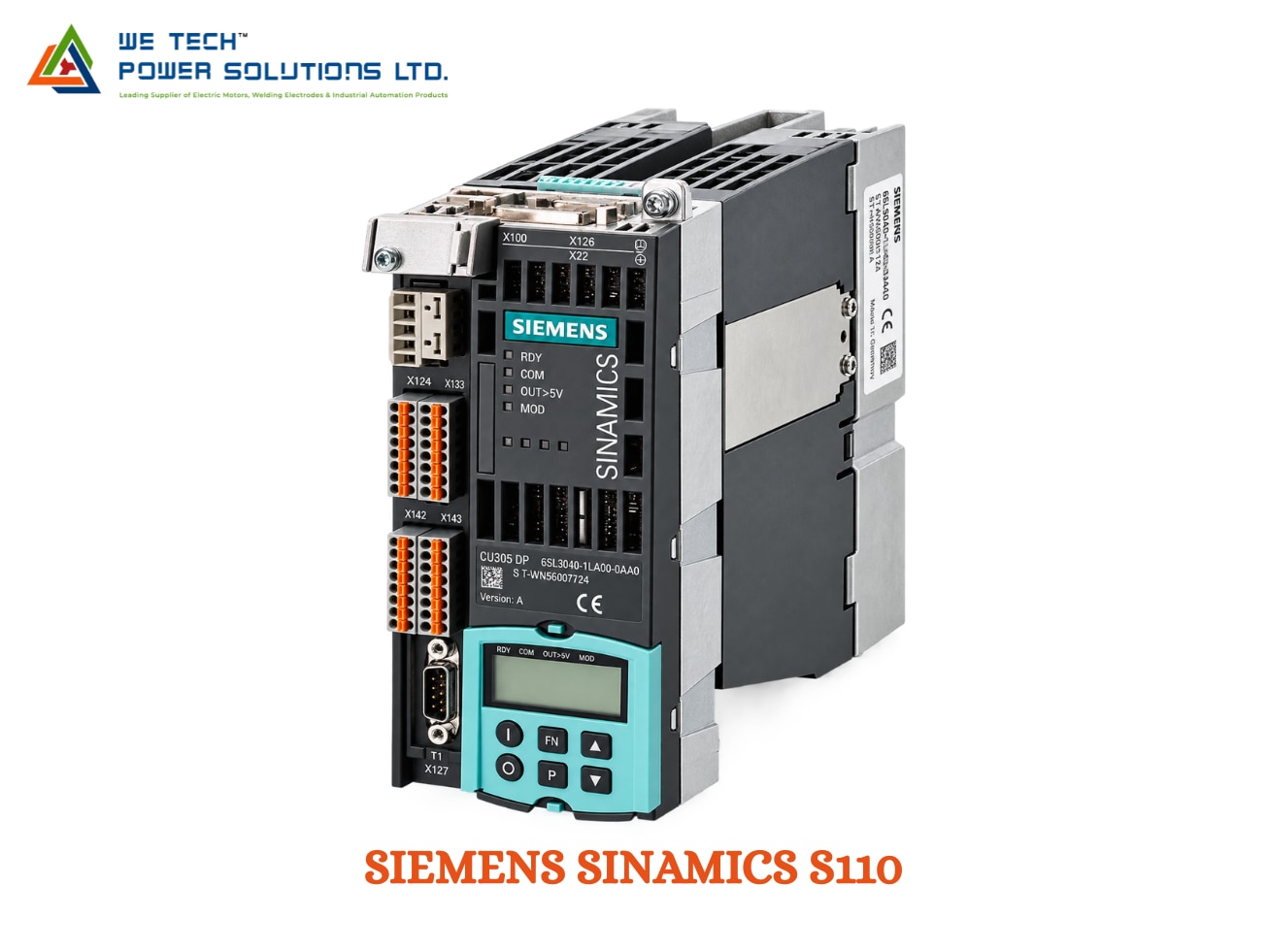

Siemens SINAMICS S110 Servo Drive

Siemens SINAMICS S110 Servo Drive for Single-Axis Precision Motion Control

The Siemens SINAMICS S110 Servo Drive is a modular motion-control solution designed for single-axis servo applications and simple positioning tasks. It combines Siemens drive technology with precise speed, torque and positioning control for machinery where accurate movement and repeatable axis positioning are important.

Unlike a conventional variable frequency drive used mainly for speed control, the SINAMICS S110 is designed specifically around servo-oriented motion applications, making it suitable for positioning, indexing, feeding, handling and other controlled machine movements.

Siemens describes SINAMICS S110 as a modular drive system for single axes in servo control mode, particularly for simple positioning tasks.

We Tech Power Solutions Ltd supplies Siemens SINAMICS drive solutions for OEMs, machine builders, system integrators and industrial automation applications across Ahmedabad, Gujarat and India.

What Is Siemens SINAMICS S110?

SINAMICS S110 is a single-axis servo drive system designed for machines that require controlled positioning without the complexity of a large multi-axis motion platform.

The system can be configured using a combination of:

• Power Module

• Control Unit

• Motor

• Encoder feedback

• Sensor Module where required

• Communication interface

• Operator/commissioning components

• Required braking and DC-link components

Siemens documentation describes the S110 architecture as a combination of a Power Module and Control Unit, forming a compact single-motor drive for machinery and plant construction.

Designed for Single-Axis Positioning

The main application strength of SINAMICS S110 is single-axis positioning.

It can be used when a machine requires an axis to:

• Move to a defined position

• Return to a reference position

• Perform controlled indexing

• Execute positioning sequences

• Control speed accurately

• Perform repetitive feed movements

• Coordinate movement with a machine controller

Typical positioning tasks include:

• Rotary indexing

• Infeed mechanisms

• Feed systems

• Pick-and-place movement

• Handling axes

• Positioning tables

• Automatic assembly mechanisms

Siemens specifically identifies simple infeed tasks, handling, robotics, pick-and-place, printing and packaging as typical S110 application areas.

Servo Control for Precise Machine Movement

The S110 provides servo-oriented control for applications where simple motor speed control is not enough.

Depending on the selected configuration and motor, the drive can support controlled:

• Position

• Speed

• Torque

• Acceleration

• Deceleration

• Motor movement sequences

This makes it useful for machines where positioning accuracy and repeatability directly affect production performance.

Power Module + Control Unit Architecture

One of the important characteristics of SINAMICS S110 is its modular architecture.

Power Module

The Power Module handles the power conversion required to operate the connected motor.

Control Unit

The Control Unit manages the drive's control functions and communication with the higher-level automation system.

Motor & Encoder

The selected motor provides the mechanical movement, while encoder feedback can provide actual position and speed information to the drive.

This modular approach allows the S110 configuration to be selected according to the required motor, power rating, feedback system and machine architecture.

Synchronous & Induction Motors

SINAMICS S110 can operate with both:

• Synchronous motors

• Asynchronous / induction motors

This gives machine builders flexibility when selecting the appropriate Siemens motor and drive combination. Siemens specifically documents both synchronous and induction motor operation for S110.

For applications requiring direct-drive technologies such as linear or torque motors, Siemens identifies SINAMICS S120 rather than S110 as the appropriate platform.

Encoder Feedback

Feedback is important in servo applications because the drive needs accurate information about the motor's actual movement.

Depending on the selected S110 configuration, encoder-related functions can be used for:

• Position feedback

• Speed feedback

• Closed-loop operation

• Positioning accuracy

• Motion monitoring

Siemens documentation states that S110 supports common encoder types and provides different options for connecting feedback components.

The exact encoder interface must be matched to the selected Control Unit, motor and feedback device.

Pulse/Direction Positioning

SINAMICS S110 can also be used for positioning through a pulse/direction interface in appropriate configurations.

A higher-level controller can provide:

• Pulse signals

• Direction signals

The S110 then executes the received position commands through its position-control functionality.

Siemens documents pulse/direction operation for S110 as an application for position-controlled or speed-controlled drive operation.

This can be useful when integrating the servo drive with a controller that provides positioning commands externally.

Communication & Automation Integration

The S110 can be connected to a higher-level control system through supported communication interfaces and fieldbus options.

Depending on the selected Control Unit and configuration, the system can integrate with:

• Siemens PLCs

• Motion controllers

• Machine controllers

• Higher-level automation systems

• External positioning controllers

The exact communication interface should always be selected according to the controller architecture and required motion functions.

Engineering with Siemens SIZER & STARTER

Siemens provides engineering and commissioning tools for SINAMICS S110.

SIZER

SIZER can be used to help select and dimension the appropriate drive configuration.

It can assist with evaluating:

• Motor requirements

• Drive rating

• Application requirements

• Power components

• Drive configuration

STARTER

STARTER is used for drive commissioning and parameterization on applicable SINAMICS generations.

It can be used for tasks such as:

• Drive commissioning

• Parameter setting

• Diagnostics

• Drive optimization

• Fault analysis

Siemens specifically identifies SIZER for drive selection and STARTER for commissioning SINAMICS S110.

Typical S110 Applications

Rotary Indexing

S110 can be used for controlled rotary indexing mechanisms where the axis must repeatedly move to defined positions.

Infeed & Feed Systems

Suitable for:

• Material feeding

• Product feeding

• Controlled infeed

• Machine loading

Pick & Place

The servo drive can provide controlled axis movement for pick-and-place mechanisms.

Packaging Machinery

Potential applications include:

• Packaging positioning

• Product feeding

• Indexing mechanisms

• Film handling

• Machine axes

Printing & Paper Machinery

S110 can be used in selected positioning and feed applications within printing and paper-processing machinery.

Handling Technology

Applications include:

• Handling axes

• Transfer mechanisms

• Positioning systems

• Automated material movement

Siemens lists handling technology, robotics, pick-and-place, printing and packaging among the typical application areas for S110.

Industries

SINAMICS S110 can be considered for:

• Packaging

• Manufacturing

• Machine Building

• Material Handling

• Robotics

• Printing & Paper

• Plastics Processing

• Metalworking

• Woodworking

• Glass & Ceramics

• Assembly Automation

• OEM Machinery

Siemens documentation also lists automatic assembly machines, laboratory automation, metalworking, woodworking, glass and ceramic industries among S110 application areas.

SINAMICS S110 Technical Overview

Specification Details

Brand Siemens

Product Family SINAMICS

Product SINAMICS S110

Product Type Servo / Positioning Drive

Application Single-axis motion control

Primary Function Positioning

Drive Architecture Power Module + Control Unit

Motor Compatibility Synchronous & induction motors

Feedback Encoder-dependent configuration

Positioning Supported

Pulse/Direction Supported in appropriate configuration

Engineering SIZER / STARTER

Application Focus Simple single-axis positioning

Typical Machines Handling, packaging, indexing, feeding, printing

Drive Power Range

Siemens' D31.1 documentation lists SINAMICS S110 servo drives in a range of approximately 0.55 kW to 132 kW, depending on the Power Module configuration.

The actual usable motor/drive combination depends on:

• Motor rating

• Load profile

• Duty cycle

• Supply voltage

• Overload requirement

• Feedback type

• Required motion performance

• Selected Power Module

• Control Unit configuration

Therefore, the complete Siemens order number should always be verified before procurement.

Typical Power & Supply Configurations

The SINAMICS S110 platform can be configured with different Power Modules and supply arrangements.

Siemens documentation includes Power Module configurations for:

• 200–240 V AC

• 380–480 V AC

depending on the selected Power Module and frame size.

For the documented PM240-2 configurations, Siemens specifies a line frequency range of 47–63 Hz and different voltage arrangements depending on the frame size.

The exact electrical specification must be checked against the selected Power Module article number.

Why Choose SINAMICS S110?

Single-Axis Motion Focus

S110 is designed specifically for applications where one machine axis needs controlled servo positioning.

Modular Configuration

Power and control components can be selected according to the application.

Flexible Motor Selection

Support for synchronous and induction motors provides configuration flexibility.

Positioning Capability

Suitable for indexing, feeding and positioning mechanisms.

Industrial Communication

The drive can be integrated with higher-level automation systems through supported interfaces.

Engineering Support

SIZER and STARTER provide tools for selection, commissioning and drive parameterization.

SINAMICS S110 vs SINAMICS S120

Choosing between S110 and S120 depends primarily on the motion architecture.

Feature SINAMICS S110 SINAMICS S120

Main Focus Simple servo Advanced modular motion

Axis Architecture Single-axis Multi-axis / modular

Typical Use Simple positioning Complex coordinated motion

Applications Indexing, feeding, handling Multi-axis machines

Configuration Compact Highly configurable

Motion Complexity Basic to moderate Advanced

If the machine has one primary positioning axis, S110 can be a suitable architecture. For coordinated multi-axis motion, advanced synchronization or more complex motion applications, SINAMICS S120 should be evaluated.

Selecting the Correct S110 Configuration

Before ordering a SINAMICS S110, confirm:

1. Motor Type

Determine whether the application requires a synchronous or induction motor.

2. Motor Power

Check the motor's rated power and current.

3. Load Profile

Consider:

• Continuous load

• Peak load

• Acceleration

• Deceleration

• Duty cycle

• Required torque

4. Feedback

Confirm the motor encoder and required feedback interface.

5. Positioning Requirement

Define:

• Travel distance

• Positioning accuracy

• Repeatability

• Maximum speed

• Acceleration/deceleration

6. Controller Communication

Confirm how the drive will receive its motion commands.

7. Supply Voltage

Select the appropriate Power Module for the available electrical supply.

8. Braking & Regeneration

Evaluate whether the application requires braking components or regenerative-energy handling.

Siemens SINAMICS S110 Servo Drive Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Siemens SINAMICS drive solutions for industrial automation and machine-building applications.

We can assist with:

• SINAMICS S110 product identification

• Power Module selection

• Control Unit selection

• Motor-drive matching

• Encoder compatibility

• Servo-drive replacement

• Existing machine retrofit requirements

• Application-based drive selection

• Industrial automation quotations

We support customers across Ahmedabad, Gujarat and India, with industrial automation enquiries from UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Siemens SINAMICS product sourcing

• Servo-drive selection support

• Motor and drive matching

• Exact order-number verification

• Replacement and retrofit guidance

• OEM machine automation support

• Industrial automation product sourcing

• Ahmedabad-based assistance

• Pan-India supply coordination

Frequently Asked Questions

What is Siemens SINAMICS S110?

SINAMICS S110 is a Siemens servo drive system designed primarily for single-axis positioning applications and simple motion-control tasks. Siemens describes it as a modular single-axis servo system for machinery and plant construction.

What applications are suitable for SINAMICS S110?

Typical applications include infeed systems, rotary indexing, handling technology, pick-and-place, robotics, packaging and printing machines.

Can SINAMICS S110 control synchronous motors?

Yes. Siemens documents S110 for both synchronous and asynchronous/induction motors.

What is the difference between S110 and S120?

S110 is primarily intended for simple single-axis positioning, while S120 is a more advanced modular drive platform for applications involving more complex and coordinated motion.

Which Siemens software is used with S110?

Siemens identifies SIZER for drive selection/dimensioning and STARTER for commissioning and parameterization of SINAMICS S110.

What is the power range of SINAMICS S110?

Siemens' D31.1 catalog documents S110 servo-drive configurations from approximately 0.55 kW to 132 kW, depending on the selected Power Module.

Get Siemens SINAMICS S110 Servo Drive

Looking for a Siemens SINAMICS S110 Servo Drive in Ahmedabad, Gujarat or India?

Share your existing drive part number, motor model, motor power, encoder type, supply voltage, application and required quantity with We Tech Power Solutions Ltd for accurate product identification, configuration guidance and quotation support.
