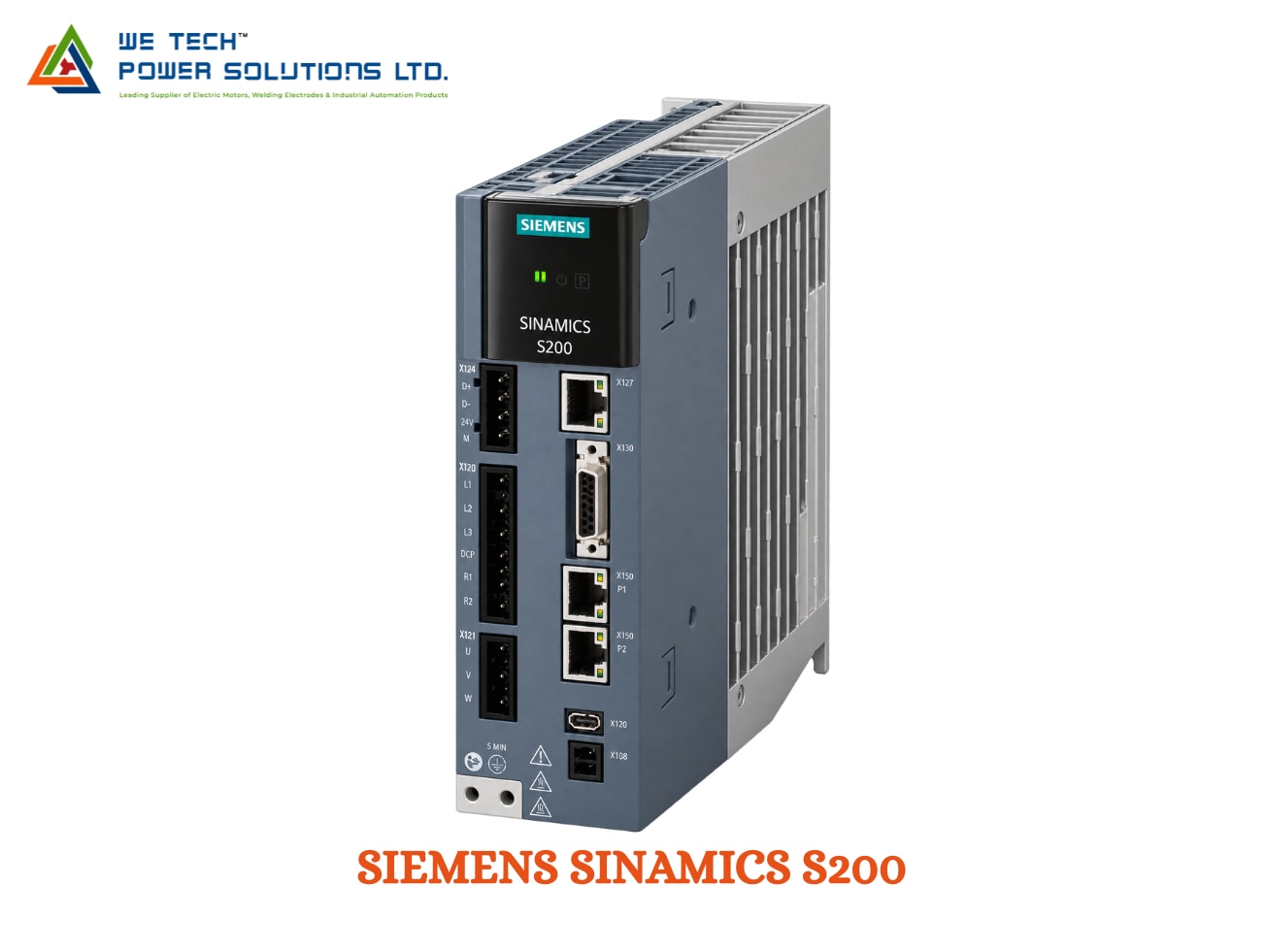

Siemens SINAMICS S200 Servo Drive

Siemens SINAMICS S200 Servo Drive for Precise & Efficient Motion Control

The Siemens SINAMICS S200 Servo Drive is a high-performance servo drive system designed for standard machine-automation applications where precise positioning, responsive speed control and efficient motion performance are required.

The system combines the SINAMICS S200 servo drive, SIMOTICS S-1FL2 servo motor and Motion Connect cables to provide a coordinated motion solution for machine builders and OEMs. Siemens positions S200 as a cost-effective servo platform that balances performance, ease of commissioning and system flexibility.

We Tech Power Solutions Ltd supplies Siemens SINAMICS S200 servo-drive solutions for industrial automation, OEM machinery and motion-control applications across Ahmedabad, Gujarat and India.

Why Choose SINAMICS S200?

S200 is designed for applications that need more than basic motor-speed control but do not necessarily require the complexity of a premium modular drive platform.

Its main strengths include:

• Precise servo motion control

• Fast current-control response

• PROFINET RT/IRT communication

• High-resolution absolute encoders

• High overload capability

• Integrated holding-brake control

• Integrated brake-resistor support

• Webserver-based commissioning

• SINAMICS Startdrive engineering

• TIA Portal integration

Siemens specifies a 125 μs speed-controller cycle for the standard S200 servo drive and up to 350% overload capacity, depending on the applicable configuration.

Complete Servo System

SINAMICS S200 is best understood as a complete servo system rather than only a standalone drive.

A typical solution consists of:

SINAMICS S200 Servo Drive

↓

SIMOTICS S-1FL2 Servo Motor

↓

Motion Connect Cables

↓

SIMATIC / Motion Controller

This coordinated approach helps simplify drive and motor selection for standard machine applications.

Siemens offers the S-1FL2 motor family in low-, medium- and high-inertia versions, allowing the servo system to be selected according to the mechanical requirements of the machine.

Precise Position, Speed & Torque Control

S200 supports the motion-control requirements commonly found in automated machinery.

Depending on the configuration and controller architecture, applications can use:

• Position control

• Speed control

• Torque control

• Precise positioning

• Axis synchronization

• Servo acceleration/deceleration

• Dynamic machine movements

Siemens specifically identifies S200 for position, speed and torque control and for single- and multi-axis applications.

Fast Dynamic Response with PROFINET IRT

For machines with coordinated motion, communication speed is important.

SINAMICS S200 supports PROFINET IRT, enabling synchronized communication between the servo drive and automation controller.

This makes the drive suitable for:

• High-speed positioning

• Coordinated machine axes

• Pick-and-place

• Packaging movements

• Assembly operations

• Repetitive production cycles

Siemens highlights PROFINET IRT and the fast current-controller cycle as key performance features of the S200 system.

High-Resolution Encoder Technology

The associated SIMOTICS S-1FL2 servo motors can use high-resolution absolute encoders.

Depending on the motor configuration, Siemens lists:

• 17-bit single-turn absolute encoder

• 21-bit single-turn absolute encoder

• 21-bit multiturn absolute encoder

• 21-bit multiturn encoder with battery

Higher encoder resolution helps the servo system detect small position and speed deviations and supports smooth, precise machine movement.

S200 Servo Drive Power Range

The standard SINAMICS S200 servo-drive system covers a power range of approximately 0.1 kW to 7 kW.

Siemens currently specifies:

200–240 V 1/3 AC

0.1 kW to 1 kW

380–480 V 3 AC

0.2 kW to 7 kW

The exact power rating depends on the selected S200 drive and motor combination.

SINAMICS S200 Basic Servo Drive

Siemens also offers a SINAMICS S200 Basic variant.

The standard S200 system provides the broader servo-drive functionality, while S200 Basic is intended for simpler applications and offers communication options including Pulse Train Input (PTI) and PROFINET RT/IRT depending on the selected version.

This gives machine builders an option to select the appropriate servo architecture according to the required control method and application complexity.

Easy Engineering with TIA Portal & Startdrive

S200 is designed to fit into Siemens automation environments.

Engineering and commissioning can be performed using:

• TIA Portal

• SINAMICS Startdrive

• Integrated Webserver

• Siemens drive-configuration tools

The integrated Webserver provides convenient access to drive commissioning and diagnostic functions, while Startdrive provides the engineering environment for configuring and commissioning compatible SINAMICS drives.

Integrated Holding Brake & Brake Resistor Support

The S200 system is designed with practical machine requirements in mind.

Siemens highlights:

• Integrated holding-brake control

• Integrated brake-resistor functionality

• Simplified machine integration

These features can be useful for applications where the servo axis needs to hold a load or manage regenerative energy during controlled deceleration.

Safety Functions

The standard SINAMICS S200 servo drive supports safety functions including:

• STO – Safe Torque Off

• SS1-t – Safe Stop 1 time controlled

Siemens specifies these functions through the applicable terminals and identifies safety capability up to SIL 3 / PL e for the supported S200 configuration.

The complete machine safety system must still be designed, validated and implemented according to the applicable safety standards.

S200 for Single-Axis & Multi-Axis Machines

Although S200 is well suited to individual servo axes, Siemens also positions it for multi-axis applications.

In a multi-axis machine, an S200 axis can operate alongside other servo axes under a common controller architecture.

This is useful for machines requiring:

• Coordinated movement

• Multiple positioning axes

• Electronic synchronization

• High-speed production cycles

• Independent servo axes

• Pick-and-place sequences

Siemens' current motion-control ecosystem specifically identifies S200 as a cost-effective option for single- and multi-axis applications.

Typical Machine Applications

Packaging Machines

S200 can be used for:

• Filling

• Sealing

• Cutting

• Feeding

• Indexing

• Product positioning

Assembly Automation

Suitable for:

• Pick-and-place

• Component positioning

• Automated assembly

• Screwdriving

• Transfer mechanisms

Material Handling

Applications can include:

• Conveyors

• Transfer units

• Sorting systems

• Lifting mechanisms

• Positioning systems

Electronics & Battery Manufacturing

Servo control can be applied to:

• Cell assembly

• Precision handling

• Winding and unwinding

• Component positioning

• Production automation

Siemens specifically highlights battery and electronics applications for S200, including winding/unwinding and cell-assembly applications requiring precise speed and torque control.

Pick-and-Place Machines

High-resolution encoder feedback and PROFINET IRT communication make S200 suitable for repetitive, coordinated positioning tasks.

Industries

SINAMICS S200 can be considered for:

• Packaging

• Electronics

• Battery Manufacturing

• Automotive Components

• Food & Beverage Machinery

• Assembly Automation

• Material Handling

• Printing & Converting

• Textile Machinery

• Plastics Machinery

• General OEM Machinery

• Industrial Production Equipment

S200 Technical Overview

Specification Siemens SINAMICS S200

Brand Siemens

Product Family SINAMICS

Product S200

Product Type Servo Drive System

Main Application Standard machine motion control

Power Range 0.1–7 kW

Supply 200–240 V 1/3 AC or 380–480 V 3 AC, depending configuration

Control Position, speed and torque control

Communication PROFINET RT/IRT; model-dependent

Speed Controller Cycle 125 μs

Overload Capacity Up to 350%, configuration dependent

Encoder 17-bit / 21-bit absolute encoder options

Safety STO, SS1-t on supported configurations

Engineering TIA Portal / SINAMICS Startdrive

Commissioning Webserver / Startdrive

Motor Family SIMOTICS S-1FL2

Motor Versions Low, medium and high inertia

Motor Torque Approx. 0.16–33.4 Nm

Motor Protection IP65; selected smaller shaft heights have different standard protection

Typical Application Single-axis and multi-axis machine automation

Specifications vary according to the exact drive, motor and system configuration. Confirm the complete Siemens order number before ordering.

SINAMICS S200 vs SINAMICS S110

Feature SINAMICS S200 SINAMICS S110

Main Focus Standard servo applications Simple servo applications

Architecture Servo system Modular single-axis servo

Typical Power 0.1–7 kW Wider application-dependent range

Communication PROFINET RT/IRT, model dependent Application/configuration dependent

Motor System SIMOTICS S-1FL2 Compatible Siemens servo motors

Position Control Yes Yes

Speed Control Yes Yes

Torque Control Yes Yes

Multi-Axis Use Yes Primarily simple single-axis

Engineering Startdrive / Webserver STARTER / SIZER depending generation

Best Fit Standard machine automation Simple positioning tasks

For a modern standard machine requiring an integrated Siemens servo ecosystem and PROFINET IRT, S200 is a strong fit. S110 remains relevant for applications built around its specific single-axis architecture and existing system requirements.

SINAMICS S200 vs SINAMICS S120

Choose S200 When You Need

• Standard machine motion

• Compact servo implementation

• 0.1–7 kW applications

• PROFINET IRT

• Simple commissioning

• Cost-effective servo technology

• Single or moderate multi-axis applications

Consider S120 When You Need

• Highly modular drive architecture

• Large multi-axis systems

• More complex motion applications

• Broad power scalability

• Advanced machine and plant drive configurations

• Centralized multi-axis drive architecture

S200 is positioned by Siemens as an optimized servo system for standard applications, while S120 is the more modular high-performance drive platform.

Selecting the Right S200 Servo Drive

Before ordering, check the following:

1. Motor Power

Identify the required:

• Rated power

• Rated torque

• Peak torque

• Speed

• Duty cycle

2. Supply Voltage

Confirm whether the machine requires:

• 200–240 V

• 380–480 V

3. Motor Inertia

Choose the appropriate SIMOTICS S-1FL2 motor based on the mechanical load and dynamic requirements.

4. Encoder

Confirm:

• Single-turn or multiturn

• Encoder resolution

• Absolute encoder requirements

5. Communication

Check whether the application requires:

• PROFINET RT

• PROFINET IRT

• Pulse Train Input for supported S200 Basic versions

6. Safety

Confirm whether the machine requires:

• STO

• SS1-t

• Additional external safety functions

7. Cable Requirements

Use the appropriate Motion Connect cables and confirm the required motor, brake and encoder connections.

Siemens SINAMICS S200 Servo Drive Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Siemens SINAMICS S200 servo-drive solutions for OEMs, machine builders, automation integrators and industrial users.

We can assist with:

• S200 servo-drive selection

• SIMOTICS S-1FL2 motor selection

• Drive-motor matching

• Exact Siemens order-number identification

• PROFINET configuration requirements

• Encoder compatibility

• Motion Connect cable selection

• Replacement and retrofit requirements

• Machine automation applications

• Servo-drive quotation support

We support customers across Ahmedabad, Gujarat and India, with industrial automation enquiries from UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Siemens automation product sourcing

• SINAMICS servo-drive selection support

• Motor and drive matching

• Application-based recommendations

• Exact part-number verification

• OEM machine automation support

• Servo replacement assistance

• Industrial automation quotation support

• Ahmedabad-based coordination

• Pan-India supply support

Frequently Asked Questions

What is Siemens SINAMICS S200 Servo Drive?

SINAMICS S200 is a Siemens servo-drive system designed for efficient motion control in standard machine applications. It combines the servo drive with compatible SIMOTICS S-1FL2 motors and Motion Connect cables.

What is the power range of SINAMICS S200?

The standard S200 servo-drive system covers approximately 0.1 kW to 7 kW, depending on the supply-voltage configuration.

Does S200 support PROFINET IRT?

Yes. Siemens identifies PROFINET IRT as a key communication capability of the SINAMICS S200 servo-drive system for responsive and coordinated motion applications.

Which motors are compatible with S200?

The S200 servo system is designed to work with SIMOTICS S-1FL2 servo motors, including low-, medium- and high-inertia variants.

Can S200 be used for multi-axis applications?

Yes. Siemens positions S200 for both single-axis and multi-axis applications, including assembly, packaging, pick-and-place and standard production machinery.

Does SINAMICS S200 support safety functions?

Supported S200 configurations provide STO and SS1-t safety functions, with Siemens specifying up to SIL 3 / PL e for the applicable safety implementation.
