SIEMENS SINAMICS S220

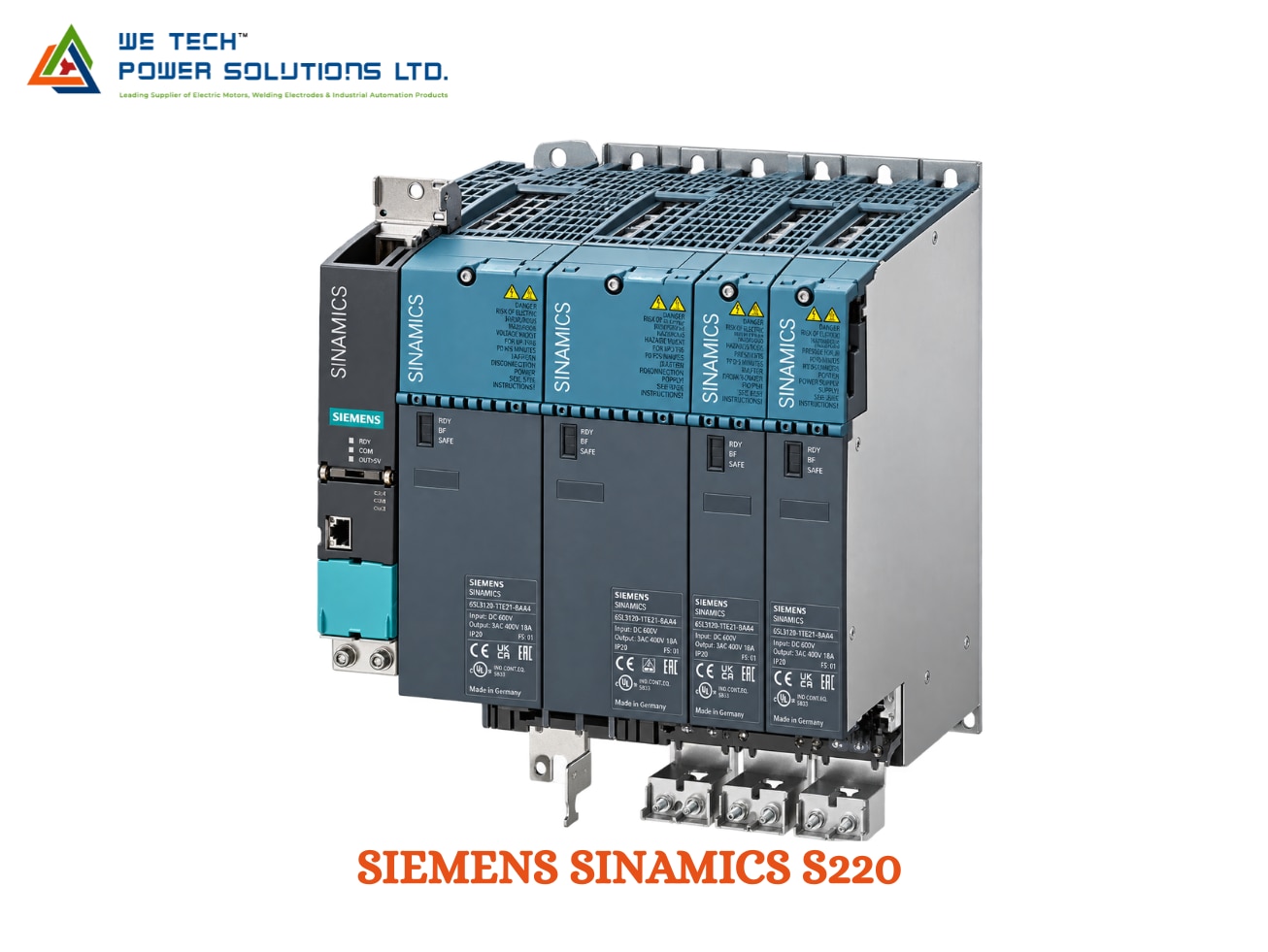

Siemens SINAMICS S220 Servo Drive

Siemens SINAMICS S220 Servo Drive for Next-Generation High-Performance Motion Control

The Siemens SINAMICS S220 Servo Drive is a new-generation, high-performance modular drive system developed for demanding machine and industrial motion applications.

Building on the established SINAMICS S120 platform, S220 combines high dynamic performance with a more compact architecture, advanced connectivity, integrated safety and digital engineering capabilities. The system is designed for applications where precision, machine productivity, connectivity and future scalability are important.

We Tech Power Solutions Ltd supplies Siemens SINAMICS S220 drive solutions for OEMs, machine builders, system integrators and industrial automation projects across Ahmedabad, Gujarat and India.

What Is SINAMICS S220?

SINAMICS S220 is a modular drive system for high-performance motion applications.

Instead of being limited to one fixed drive format, the S220 portfolio includes different hardware architectures to match the required power level and machine design:

• Booksize Modules

• Chassis Modules

• Universal Modules

• Cabinet Modules

The system is controlled through the new SINAMICS CU320-3 Control Unit, which Siemens introduced together with S220 to deliver increased drive performance and advanced system capabilities.

Why Choose SINAMICS S220?

S220 is designed for machines where conventional basic servo drives may not provide enough performance or scalability.

Key advantages include:

• High-performance motion control

• Compact drive architecture

• High dynamic response

• Modular system design

• Advanced safety functions

• Cybersecurity features

• Digital engineering capabilities

• Simulation and analysis support

• Condition monitoring

• Predictive maintenance possibilities

• Integration with modern Siemens automation systems

Siemens describes S220 as a high-end modular system designed for precision, reliability and seamless automation integration.

The New CU320-3 Control Unit

One of the major differences between S220 and earlier SINAMICS generations is the CU320-3 Control Unit.

The CU320-3 is designed to provide the control performance required by the new S220 architecture.

It forms the central control element for the drive system and supports applications involving:

• Servo axes

• Coordinated motion

• Multi-axis machines

• High-speed positioning

• Dynamic machine movements

• Advanced drive functions

Siemens introduced S220 together with the CU320-3 and software version 6.6 as a major step forward in drive-system performance.

Modular Architecture for Different Machine Sizes

The S220 family can be configured according to the application's power and installation requirements.

SINAMICS S220 Booksize Modules

Booksize modules provide a compact solution for machine applications where cabinet space is limited.

Siemens lists Booksize modules with power ratings up to 110 kW and supports the CU320-3, SIMATIC DC and SINUMERIK NCU control platforms.

Typical applications include:

• Robotics

• Packaging

• Additive manufacturing

• Machine tools

• High-speed machine automation

SINAMICS S220 Chassis Modules

Chassis modules are intended for higher-power drive requirements.

Siemens currently lists S220 Chassis modules with power ratings up to 900 kW, with higher ratings possible through parallel connection depending on the configuration.

They are suitable for applications requiring larger drive power while maintaining a modular architecture.

SINAMICS S220 Universal Modules

Universal Modules provide additional flexibility for configuring S220 drive systems.

The current Siemens portfolio supports combinations involving multiple Motor Modules and Active Line Modules, allowing engineers to create application-specific drive configurations.

SINAMICS S220 Cabinet Modules

Cabinet Modules provide a ready-to-integrate cabinet solution for larger industrial drive applications.

They are designed to provide:

• Modular configuration

• High power density

• Reduced cabinet dimensions

• Easier system integration

• Scalable drive architecture

Siemens currently lists S220 Cabinet Modules with power capability up to 6.984 MW through parallel connection, depending on the selected configuration.

High-Performance Servo Motion

SINAMICS S220 is designed for applications requiring precise and highly dynamic motion.

Depending on the configuration, the system can be used for:

• Position control

• Speed control

• Torque control

• Coordinated motion

• Electronic synchronization

• Multi-axis positioning

• Dynamic acceleration and deceleration

This makes S220 suitable for machines where movement accuracy and cycle time have a direct impact on production performance.

Advanced Motion Applications

S220 is particularly relevant for applications involving:

Robotics

• Robot axes

• Pick-and-place

• Coordinated movement

• High-speed positioning

Packaging

• Filling

• Cutting

• Sealing

• Product handling

• Indexing

Machine Tools

• High-speed spindle-related applications

• Servo axes

• Precision positioning

• Coordinated machine movements

Additive Manufacturing

• Material positioning

• Precise axis control

• Coordinated motion

Siemens specifically identifies robotics, packaging and additive manufacturing as suitable applications for S220 Booksize configurations.

Digital Engineering & Simulation

S220 is designed around Siemens' broader digital engineering approach.

The system supports digital workflows involving:

• Drive configuration

• Simulation

• Drive analysis

• Commissioning

• Diagnostics

• Condition monitoring

• Predictive maintenance

Siemens highlights simulation and analysis capabilities as part of the S220 drive-system concept, helping engineers reduce development time and improve machine availability.

Predictive Maintenance & Condition Monitoring

Modern industrial machines require more than simple motor control.

S220 supports a drive architecture designed for greater visibility into machine operation.

Depending on the selected system and digital services, this can support:

• Drive-condition monitoring

• Predictive maintenance

• Operational diagnostics

• System-performance analysis

• Maintenance planning

The objective is to move from reactive maintenance toward data-supported machine maintenance.

Safety & Cybersecurity

S220 has been developed with modern industrial safety and cybersecurity requirements in mind.

Siemens highlights:

• Advanced safety functions

• Integrated security concepts

• Secure industrial connectivity

• Protection of drive-system data

• Safety-oriented machine operation

The exact safety functions depend on the selected hardware, firmware, licensing and overall machine architecture.

Important: a safety-capable drive does not by itself make a complete machine safety compliant. The complete safety system must be engineered, validated and maintained according to the applicable standards.

Integration with Siemens Automation

SINAMICS S220 is designed for integration into Siemens automation architectures.

Depending on the application, the drive system can work with platforms such as:

• SIMATIC

• SINUMERIK

• SIMOTION

• Siemens motion-control systems

• TIA Portal-based engineering environments

The S220 Booksize portfolio specifically identifies support for CU320-3, SIMATIC DC and SINUMERIK NCUplatforms.

This allows machine builders to develop coordinated control architectures for PLC, motion and drive functions.

Compact Design with High Power Density

One of the major goals of S220 is to deliver greater drive performance without requiring proportionally larger installation space.

Siemens highlights:

• Compact dimensions

• High power density

• Reduced cabinet requirements

• Modular construction

• Flexible installation concepts

The Booksize platform is particularly useful where control-cabinet space is limited. Siemens also highlights reduced cabinet width and height for applicable Cabinet Module configurations.

SINAMICS S220 Technical Overview

Specification Siemens SINAMICS S220

Brand Siemens

Product Family SINAMICS

Product S220

Product Type High-Performance Modular Drive System

Main Application Servo & advanced industrial motion

Control Unit SINAMICS CU320-3

Software Generation Version 6.6 and later system-specific versions

Architecture Modular

Booksize Power Up to 110 kW

Chassis Power Up to 900 kW; higher through parallel connection depending configuration

Cabinet Module Power Up to 6.984 MW through parallel connection, configuration dependent

Module Types Booksize, Chassis, Universal, Cabinet

Control Platforms CU320-3, SIMATIC DC, SINUMERIK NCU and compatible architectures

Motion Functions Servo, speed, torque and coordinated motion functions

Safety Advanced Safety Integrated functions, configuration dependent

Digital Functions Simulation, diagnostics, condition monitoring and predictive-maintenance capabilities

Application Areas Machine tools, robotics, packaging, intralogistics, additive manufacturing and industrial automation

The power figures above refer to the current Siemens S220 portfolio and vary significantly according to the module type and complete system configuration. Exact product selection should always be based on the required motor, current, voltage, application and Siemens order number.

SINAMICS S220 vs SINAMICS S120

Feature SINAMICS S220 SINAMICS S120

Positioning New-generation high-performance drive system Established modular high-performance drive system

Main Control Unit CU320-3 CU320-2 and applicable platforms

Architecture Booksize, Chassis, Universal & Cabinet Booksize, Chassis & Cabinet families

Digital Capabilities Enhanced digital/simulation focus Mature modular drive ecosystem

Safety Advanced safety capabilities Safety Integrated

Typical Focus Next-generation demanding motion Broad high-performance machine & plant applications

Best Fit New high-performance machine architectures Existing and new modular drive systems

Connectivity Modern Siemens automation ecosystem Extensive Siemens automation ecosystem

S220 builds on the experience of S120 while introducing a new control generation and enhanced digital capabilities. Siemens describes S220 as a new high-performance drive system based on the success of S120.

SINAMICS S220 vs SINAMICS S210

S210 and S220 should not be treated as direct equivalents.

SINAMICS S210

Best suited to:

• Compact machine servo applications

• 0.1–7 kW servo systems

• Dynamic positioning

• Standard machine automation

• Dedicated servo motor combinations

SINAMICS S220

Better suited to:

• High-end machine automation

• Advanced multi-axis systems

• Larger power requirements

• Machine tools

• Robotics

• High-performance packaging

• Digitalized drive architectures

• Modular industrial drive systems

The S220 portfolio extends far beyond the compact 0.1–7 kW class associated with S210.

Applications

SINAMICS S220 can be considered for:

• Machine tools

• Robotics

• Packaging machinery

• Intralogistics

• Additive manufacturing

• Material handling

• High-speed automation

• Production machinery

• Precision motion systems

• OEM machine building

• Advanced industrial automation

Industries

Typical industries include:

• Automotive

• Packaging

• Electronics

• Machine Tools

• Logistics

• Food & Beverage Machinery

• Plastics

• Printing & Converting

• Additive Manufacturing

• General Manufacturing

• Industrial Automation

• OEM Machinery

How to Select the Right SINAMICS S220 Configuration

Because S220 is a modular drive system, selection should begin with the complete machine requirement rather than only the motor power.

1. Determine the Machine Architecture

Identify:

• Number of axes

• Servo axes

• Synchronized axes

• Independent axes

• Centralized or modular machine layout

2. Select the Required Module Type

Evaluate:

• Booksize

• Chassis

• Universal

• Cabinet Modules

3. Calculate Motor Requirements

Check:

• Motor power

• Rated current

• Peak current

• Continuous torque

• Peak torque

• Speed

• Duty cycle

• Inertia

4. Select the Control Platform

Confirm compatibility with:

• CU320-3

• SIMATIC

• SINUMERIK

• SIMOTION

• Required motion-control architecture

5. Check Safety Requirements

Identify whether the application requires:

• Safe Torque Off

• Safe Stop

• Safely Limited Speed

• Safe Operating Stop

• Other application-specific safety functions

6. Evaluate Digital Requirements

Consider whether the machine requires:

• Simulation

• Condition monitoring

• Predictive maintenance

• Remote diagnostics

• Digital engineering workflows

7. Confirm Environmental Conditions

Check:

• Ambient temperature

• Installation altitude

• Cooling

• Cabinet arrangement

• Protection requirements

• Electrical environment

Siemens SINAMICS S220 Servo Drive Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Siemens SINAMICS S220 drive solutions for OEM machine builders, industrial automation integrators and manufacturing companies.

We can assist with:

• SINAMICS S220 product selection

• CU320-3 selection

• Motor and drive matching

• Booksize configuration

• Chassis configuration

• Cabinet Module requirements

• Multi-axis drive planning

• Siemens order-number verification

• Replacement and upgrade assessment

• Motion-control architecture

• Industrial automation quotation support

We support customers across Ahmedabad, Gujarat and India, with sourcing support for industrial automation requirements in UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Siemens automation product sourcing

• SINAMICS drive selection support

• High-performance servo solutions

• Multi-axis application assistance

• Motor-drive matching

• Exact part-number verification

• OEM automation support

• Drive replacement and modernization

• Ahmedabad-based coordination

• Pan-India supply support

Frequently Asked Questions

What is Siemens SINAMICS S220?

SINAMICS S220 is Siemens' high-end modular drive system for demanding motion-control and industrial automation applications. It builds on the SINAMICS S120 platform and introduces the CU320-3 control unit and newer digital capabilities.

What is the difference between S220 and S120?

S220 is Siemens' newer-generation high-performance drive platform, while S120 is the established modular drive system on which S220 builds. S220 introduces the CU320-3 and enhanced digital capabilities.

What power range does SINAMICS S220 cover?

The range depends on the selected S220 module family. Siemens currently lists Booksize up to 110 kW, Chassis up to 900 kW and larger Cabinet Module configurations reaching multi-megawatt levels through parallel connection.

Is SINAMICS S220 suitable for servo applications?

Yes. S220 is designed for high-performance motion applications, including precise and dynamic servo-axis applications, coordinated motion and demanding machine automation.

Which industries use SINAMICS S220?

S220 is particularly relevant to machine tools, robotics, packaging, intralogistics, additive manufacturing and other high-performance industrial automation applications.

What is the CU320-3?

The CU320-3 is the new control unit introduced with SINAMICS S220. It provides the central control functionality for S220 drive configurations and is a key part of the platform's increased performance.

Get Siemens SINAMICS S220 Servo Drive

Looking for a Siemens SINAMICS S220 Servo Drive in Ahmedabad, Gujarat or India?

Send your motor power, torque, speed, supply voltage, number of axes, controller, application and existing Siemens part number to We Tech Power Solutions Ltd for accurate product identification, configuration assistance and quotation support.
