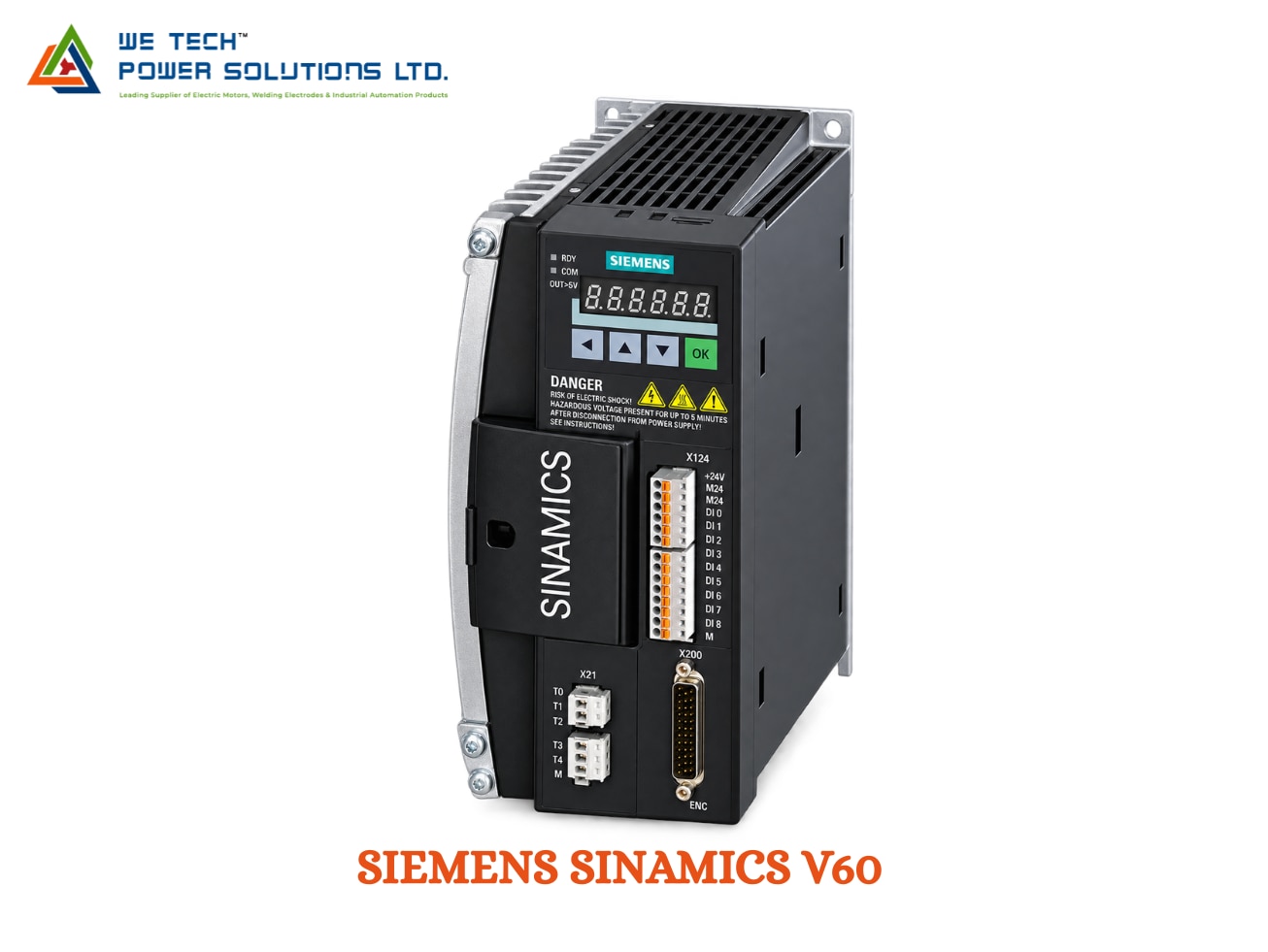

Siemens SINAMICS V60 Servo Drive

Siemens SINAMICS V60 Servo Drive for Cost-Effective CNC Feed Axis Control

The Siemens SINAMICS V60 Servo Drive is a compact servo-drive solution developed primarily for feed-axis control in standard machine-tool applications.

Designed to work closely with Siemens SINUMERIK CNC systems, particularly the SINUMERIK 808D platform, the V60 combines the drive electronics and closed-loop positioning functions required for a machine feed axis in a compact package.

Its straightforward commissioning, integrated motor data and compact construction make it suitable for cost-sensitive CNC machines where reliable servo positioning is required without the complexity of a larger modular drive system.

We Tech Power Solutions Ltd supplies Siemens SINAMICS V60 servo-drive solutions for CNC machine builders, OEMs, automation integrators and industrial users across Ahmedabad, Gujarat and India.

What Is SINAMICS V60?

SINAMICS V60 is a compact servo drive system for CNC feed axes.

Siemens designed the V60 specifically around the requirements of standard machine tools. The drive can be used with a compatible Siemens servo motor and controller to create a complete feed-axis solution.

A typical system includes:

• SINAMICS V60 servo drive

• Compatible Siemens servo motor

• Motor cable

• Encoder cable

• Brake cable where applicable

• SINUMERIK CNC controller

• Required setpoint/control connection

Siemens documentation describes V60 as a complete servo-drive solution developed for SINUMERIK 801/802S and later SINUMERIK 808D configurations, with compatible motors and required cables forming part of the system concept.

Designed for Standard CNC Machine Tools

The main application focus of V60 is CNC feed-axis control.

It is particularly suited to machines where the servo axis must provide:

• Accurate positioning

• Controlled feed movement

• Repeatable axis travel

• Closed-loop position control

• Reliable acceleration and deceleration

• Straightforward commissioning

Siemens specifically describes the V60 as a servo drive for feed axes in standard machine-tool applications, with cost effectiveness as a key design consideration.

Compact Servo Drive Architecture

V60 integrates important drive functions into a compact unit.

The drive includes:

• Integrated infeed

• Inverter

• Closed-loop position control

• Servo-drive electronics

• Motor-data configuration

• Pulse/direction interface

This integrated design helps reduce the number of separate components required for a standard CNC feed axis.

Simple Commissioning Without PC-Based Tools

One of the practical advantages of SINAMICS V60 is its straightforward commissioning approach.

Siemens documentation highlights:

• Key-based commissioning

• 7-segment display

• No PC-based commissioning tools required for basic commissioning

• Pre-configured motor data

• Simple parameter setup

The drive can therefore be commissioned with a relatively simple workflow compared with more sophisticated modular servo systems.

This makes V60 particularly attractive for standard CNC machine designs where quick setup and ease of service are important.

Pre-Configured Motor Data

V60 can use pre-configured motor data stored in the drive.

This can help reduce manual parameter entry during machine commissioning and can speed up the setup of compatible Siemens motor-drive combinations.

For OEM machine builders, this simplifies the process of configuring a standard feed axis.

Closed-Loop Position Control

A CNC feed axis requires accurate position feedback.

SINAMICS V60 incorporates closed-loop position control for the feed axis, allowing the controller and drive to work together to achieve the commanded axis position.

This is important for applications such as:

• CNC turning

• CNC milling

• Drilling

• Cutting

• Machining

• Tool positioning

• Feed-axis movement

Siemens specifically identifies the integrated closed-loop position-control function as a feature of the V60.

Pulse/Direction Interface

SINAMICS V60 provides a pulse/direction interface suitable for receiving axis commands.

Siemens documentation specifies:

• 5 V DC signal level

• Pulse frequency up to 333 kHz

This interface allows the drive to receive position-related command signals from compatible CNC control architectures.

SINAMICS V60 with SINUMERIK

V60 was developed closely around Siemens CNC control systems.

Depending on the generation and configuration, V60 can be used with:

• SINUMERIK 801

• SINUMERIK 802S

• SINUMERIK 808D

Siemens' V60 documentation specifically describes its use with SINUMERIK 808D for controlling CNC turning and milling machines.

A typical CNC feed-axis architecture can be represented as:

SINUMERIK CNC

↓

Pulse / Direction Command

↓

SINAMICS V60

↓

Siemens Servo Motor

↓

CNC Feed Axis

Siemens Servo Motor Compatibility

V60 is designed as part of a coordinated Siemens servo system.

The V60 documentation identifies 1FL5 servo motors in the V60 system configuration.

Depending on the selected motor, configurations can include:

• Motor with holding brake

• Motor without holding brake

• Keyed shaft

• Non-keyed configuration

The exact motor selection depends on the required torque, speed, mechanical interface and machine-axis requirements.

Natural Cooling Design

The V60 uses a natural cooling concept.

Siemens' technical documentation specifies natural cooling for the drive, eliminating the requirement for an integrated cooling fan in the documented configuration.

This can help simplify the drive's mechanical design and reduce one potential maintenance component.

Robust Construction for Industrial Machines

Siemens documentation identifies features intended for machine-tool environments, including:

• Die-cast aluminium heat sink

• Coated electronic modules

• Natural cooling

• Compact construction

• CE certification

The coated electronics and robust heat-sink design support reliable operation in demanding machine environments.

SINAMICS V60 Electrical Overview

The documented V60 drive configurations include:

• Input voltage: 220–240 V 3 AC

• Input frequency: 50–60 Hz

• Electronics supply: 24 V DC

• Pulse/direction interface: 5 V DC

• Pulse frequency: up to 333 kHz

• Cooling: Natural cooling

These values refer to the documented V60 drive configurations and should be verified against the exact Siemens order number before replacement or new installation.

SINAMICS V60 Product Variants

Siemens documentation includes V60 drive references such as:

• 6SL3210-5CC14-0UA0

• 6SL3210-5CC16-0UA0

• 6SL3210-5CC17-0UA0

• 6SL3210-5CC21-0UA0

The exact electrical rating and compatible motor combination must be checked against the complete MLFB/order number.

Typical CNC Applications

CNC Turning Machines

V60 can be used for feed-axis movement in standard CNC lathes.

Typical functions include:

• Tool positioning

• Linear feed

• Controlled axis movement

• Repetitive machining cycles

CNC Milling Machines

Applications may include:

• X-axis movement

• Y-axis movement

• Z-axis movement

• Tool positioning

• Feed control

Drilling Machines

V60 can support servo-controlled feed movement where accurate and repeatable axis positioning is required.

Cutting Machines

The servo drive can be applied to machine axes requiring controlled linear movement.

Standard Machine Tools

V60 is particularly relevant to OEM machine designs where cost-effective servo positioning is required.

Industries

SINAMICS V60 can be considered for:

• CNC Machine Tools

• Metalworking

• Automotive Components

• General Manufacturing

• Machine Building

• Fabrication

• Precision Machining

• Industrial Equipment

• OEM Machinery

SINAMICS V60 Technical Overview

Specification Siemens SINAMICS V60

Brand Siemens

Product Family SINAMICS

Product V60

Product Type Compact Servo Drive

Primary Application CNC Feed-Axis Control

Main Controller SINUMERIK

Compatible CNC Platforms SINUMERIK 801 / 802S / 808D, configuration dependent

Motor Family Siemens 1FL5 servo motors, configuration dependent

Control Closed-loop position control

Command Interface Pulse / Direction

Pulse Signal 5 V DC

Pulse Frequency Up to 333 kHz

Input Voltage 220–240 V 3 AC, documented configurations

Input Frequency 50–60 Hz

Electronics Supply 24 V DC

Cooling Natural cooling

Commissioning Keypad / 7-segment display

PC-Based Tool Required Not required for basic commissioning

Motor Data Pre-configured for compatible motors

Construction Compact module with integrated functions

Application Standard CNC machine tools

Exact ratings, motor compatibility and electrical characteristics depend on the complete Siemens MLFB/order number. Confirm the part number before purchasing or replacing a V60 system.

SINAMICS V60 vs SINAMICS S110

Feature SINAMICS V60 SINAMICS S110

Main Focus CNC feed-axis control General single-axis servo

Primary Application Standard machine tools Simple positioning applications

CNC Integration Strong SINUMERIK orientation Broader servo applications

Commissioning Simple keypad/display approach Engineering-tool based

Architecture Compact dedicated servo Modular servo system

Positioning Closed-loop feed-axis control Advanced single-axis positioning

Typical Users CNC OEMs Machine builders / automation users

Best Fit Standard CNC turning & milling General single-axis motion

The biggest distinction is application focus: V60 was specifically designed around standard CNC feed axes, whereas S110 is a more general-purpose single-axis servo platform.

SINAMICS V60 vs SINAMICS S200

S200 is a newer servo system designed for broader standard machine-motion applications.

V60 is better suited when:

• The machine is based on a compatible SINUMERIK CNC system

• The application is a standard CNC turning or milling machine

• Cost-effective feed-axis control is the priority

• Simple commissioning is important

• Existing V60 hardware needs replacement or support

S200 is better suited when:

• A newer general machine-servo platform is required

• PROFINET-based motion is needed

• Broader single- and multi-axis machine applications are involved

• Modern Siemens servo-motor integration is required

For an existing V60 installation, replacement should be evaluated against the complete CNC architecture rather than replacing the drive alone.

How to Select the Correct SINAMICS V60

Before ordering a V60 servo drive, confirm:

CNC Controller

Identify the installed:

• SINUMERIK model

• CNC version

• Axis configuration

Existing Drive

Record:

• Complete Siemens MLFB

• Rated current

• Supply voltage

• Existing fault code if applicable

Servo Motor

Check:

• Motor model

• Rated torque

• Rated speed

• Holding brake

• Shaft configuration

Feedback

Confirm the encoder and feedback connection used by the existing motor.

Cabling

Check:

• Motor cable

• Encoder cable

• Brake cable

• Cable length

• Connector configuration

Machine Axis

Identify:

• X/Y/Z or other axis

• Required travel

• Feed rate

• Load

• Acceleration/deceleration

Providing the existing Siemens MLFB and motor number is the safest way to identify a replacement.

Siemens SINAMICS V60 Servo Drive Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Siemens SINAMICS servo-drive solutions for CNC machines, OEM equipment and industrial automation requirements.

We can assist with:

• SINAMICS V60 identification

• Existing drive replacement

• Siemens MLFB verification

• Servo motor matching

• CNC feed-axis requirements

• Motor and encoder compatibility

• Cable requirements

• Retrofit assessment

• CNC automation product sourcing

• Quotation support

We support customers across Ahmedabad, Gujarat and India, with industrial automation enquiries from UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Siemens automation product sourcing

• SINAMICS servo-drive support

• CNC drive selection assistance

• Existing-part-number verification

• Motor-drive matching

• Replacement and retrofit support

• OEM machine-tool requirements

• Industrial automation sourcing

• Ahmedabad-based coordination

• Pan-India supply support

Frequently Asked Questions

What is Siemens SINAMICS V60?

SINAMICS V60 is a compact Siemens servo-drive system developed primarily for feed-axis control in standard machine-tool applications. It is closely associated with SINUMERIK CNC systems.

Which CNC systems can work with SINAMICS V60?

Depending on the generation and configuration, V60 documentation covers integration with SINUMERIK 801, SINUMERIK 802S and SINUMERIK 808D systems.

What motor is used with SINAMICS V60?

The documented V60 system uses compatible Siemens 1FL5 AC servo motors, with configurations available with or without a holding brake.

Does V60 support closed-loop positioning?

Yes. Siemens describes V60 as having integrated closed-loop position control for the feed axis.

Does SINAMICS V60 require a PC for commissioning?

Basic commissioning can be performed using the drive's keys and 7-segment display. Siemens specifically highlights commissioning without PC-based tools as an advantage of the V60.

What is the pulse frequency of SINAMICS V60?

The documented V60 technical specifications specify a pulse/direction interface with a frequency of up to 333 kHz.
