SIEMENS SINAMICS V70

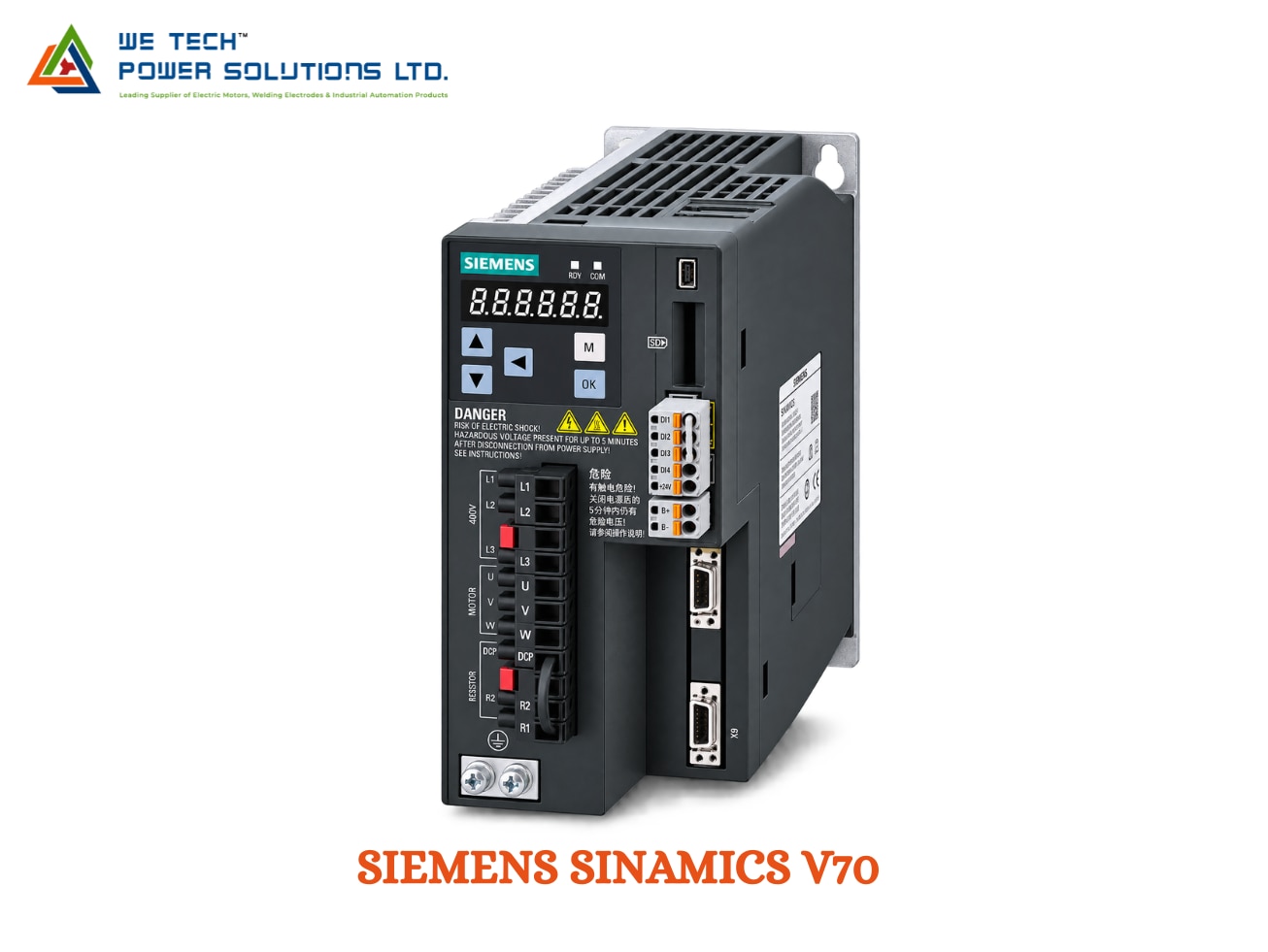

Siemens SINAMICS V70 Servo Drive

Siemens SINAMICS V70 Servo Drive for CNC Feed Axis & Machine Tool Automation

The Siemens SINAMICS V70 Servo Drive is a compact servo-drive solution designed for precise feed-axis control in standard CNC machine-tool applications.

The V70 is closely integrated with the SINUMERIK CNC ecosystem, particularly SINUMERIK 808D ADVANCED, and works with compatible SIMOTICS S-1FL6 feed motors to provide controlled and repeatable axis movement. Siemens lists V70 servo drives with 380–480 V 3-phase input and output power ratings from 0.4 kW to 7 kW across the documented range.

We Tech Power Solutions Ltd supplies Siemens SINAMICS V70 servo-drive solutions for CNC machine builders, OEMs, automation integrators and industrial users across Ahmedabad, Gujarat and India.

What Is SINAMICS V70?

SINAMICS V70 is a compact CNC servo drive intended primarily for machine-tool feed axes.

It is designed to work as part of a Siemens CNC motion system consisting of:

• SINUMERIK CNC controller

• SINAMICS V70 servo drive

• SIMOTICS S-1FL6 servo motor

• MOTION-CONNECT cables

• Encoder feedback

• CNC machine mechanics

Siemens' SINUMERIK 808D ADVANCED system documentation specifically lists the V70 servo drive together with SIMOTICS S-1FL6 feed motors and MOTION-CONNECT connection systems.

Designed for CNC Feed-Axis Control

The primary role of V70 is controlling CNC feed axes.

It can be applied to machine movements requiring:

• Accurate positioning

• Controlled feed rates

• Repeatable axis travel

• Smooth acceleration and deceleration

• Closed-loop servo operation

• Reliable CNC axis movement

This makes V70 particularly relevant to standard CNC turning, milling and similar machine-tool applications.

Compact Servo Architecture

SINAMICS V70 combines the essential servo-drive functions required for a CNC feed axis into a compact drive unit.

The system is designed around:

SINUMERIK CNC

↓

SINAMICS V70 Servo Drive

↓

SIMOTICS S-1FL6 Servo Motor

↓

CNC Feed Axis

This dedicated architecture makes V70 easier to specify for standard Siemens CNC machine designs than a larger general-purpose modular servo platform.

Siemens SINAMICS V70 Power Range

The documented V70 range covers several servo-drive ratings.

Typical 380–480 V 3-phase configurations include:

• 0.4 kW

• 1.0 kW

• 1.5 kW

• 1.75 kW

• 2.5 kW

• 3.5 kW

• 7.0 kW

Siemens lists these ratings across V70 frame sizes FSA, FSB and FSC.

The exact rated current and peak current depend on the selected order number.

For example:

• 6SL3210-5DE12-4UA0 — 0.4 kW

• 6SL3210-5DE13-5UA0 — 1.0 kW

• 6SL3210-5DE16-0UA0 — 1.5 kW

• 6SL3210-5DE17-8UA0 — 1.75 kW

• 6SL3210-5DE21-0UA0 — 2.5 kW

• 6SL3210-5DE21-4UA0 — 3.5 kW

• 6SL3210-5DE21-8UA0 — 7.0 kW

V70 with SIMOTICS S-1FL6 Motors

The V70 servo system is designed to operate with SIMOTICS S-1FL6 feed motors.

The motor-drive combination provides the feedback and dynamic control needed for CNC axis operation.

Depending on the selected motor configuration, the system can include:

• Servo motor

• Encoder

• Holding brake

• Motor cable

• Encoder connection

• MOTION-CONNECT connection technology

The correct motor must be selected according to the required torque, speed, mechanical mounting and machine-axis load.

Encoder Feedback

Servo positioning depends on accurate feedback from the motor.

SINAMICS V70 documentation lists support for:

• 20-bit absolute encoder

• Incremental encoder with 2500 signals/revolution

• Electronic multiplication providing 13-bit resolution for the documented incremental configuration

The exact feedback configuration depends on the compatible SIMOTICS motor and selected V70 system.

SINUMERIK Integration

One of the strongest reasons to use V70 is its close relationship with Siemens CNC systems.

The Siemens product ecosystem specifically groups V70 with:

• SINUMERIK 808D ADVANCED

• SIMOTICS S-1FL6 feed motors

• MOTION-CONNECT cables

• CNC machine-tool packages

This makes V70 particularly suitable for OEMs developing Siemens-based CNC machines.

Typical CNC Applications

CNC Turning Machines

V70 can be used for feed-axis control in:

• CNC lathes

• Turning centres

• Automatic turning machines

• Special-purpose turning equipment

Typical axes include:

• X axis

• Z axis

• Additional feed axes depending on the CNC architecture

CNC Milling Machines

Applications can include:

• X-axis positioning

• Y-axis positioning

• Z-axis positioning

• Tool movement

• Workpiece positioning

Drilling Machines

Servo control can provide accurate feed movement for:

• Drilling

• Tapping

• Tool positioning

• Automated machining cycles

Cutting & Processing Machines

V70 can be used where controlled servo movement is required for:

• Cutting

• Positioning

• Feeding

• Material processing

Industrial Applications

SINAMICS V70 can be considered for:

• CNC machine tools

• Turning machines

• Milling machines

• Drilling machines

• Cutting machines

• Metalworking equipment

• Precision machining

• Special-purpose machines

• OEM CNC systems

• Industrial production equipment

Why Use SINAMICS V70?

CNC-Oriented Design

V70 is designed specifically around feed-axis applications rather than being a generic industrial drive.

Compact Construction

Its compact frame sizes help machine builders integrate servo drives into CNC control cabinets.

Siemens System Compatibility

V70 works as part of the Siemens SINUMERIK–SINAMICS–SIMOTICS ecosystem.

Multiple Power Ratings

The documented 380–480 V range provides several drive ratings from 0.4 kW through 7 kW.

Servo Feedback

Encoder feedback enables closed-loop control for accurate machine-axis movement.

CNC OEM Suitability

The dedicated architecture makes V70 suitable for standard machine-tool designs where Siemens CNC control is already being used.

Electrical & Environmental Specifications

The documented V70 configurations include:

• Input voltage: 380–480 V 3 AC

• Input frequency: 50–60 Hz ±10%

• Electronics supply: 24 V DC ±10%

• Protection: IP20

• Operating temperature: 0–45°C without derating

• Derating: above 45°C up to 55°C

• Installation altitude: up to 1000 m without derating

• Connectable motors: SIMOTICS S-1FL6

• Cooling: natural cooling or forced ventilation depending on frame/model

Individual models differ in cooling method, rated current, dimensions and weight.

SINAMICS V70 Technical Overview

Specification Siemens SINAMICS V70

Brand Siemens

Product Family SINAMICS

Product V70

Product Type Servo Drive

Main Application CNC Feed-Axis Control

CNC Ecosystem SINUMERIK

Compatible Motor Family SIMOTICS S-1FL6

Input Voltage 380–480 V 3 AC, documented range

Input Frequency 50–60 Hz ±10%

Electronics Supply 24 V DC ±10%

Rated Power 0.4–7 kW, documented configurations

Encoder 20-bit absolute / 2500 S/R incremental options

Protection IP20

Cooling Natural / forced ventilation, model dependent

Operating Temperature 0–45°C without derating

Installation Altitude Up to 1000 m without derating

Typical Controller SINUMERIK 808D ADVANCED

Application CNC turning, milling, drilling and machine-tool feed axes

Specifications vary according to the complete Siemens MLFB/order number. Confirm the exact drive and motor combination before purchase or replacement.

Popular SINAMICS V70 Models

6SL3210-5DE12-4UA0

• 0.4 kW rated output

• 380–480 V 3 AC

• 1.2 A rated current

• 3.6 A peak current

• FSA frame

• IP20

• 80 × 180 × 200 mm

6SL3210-5DE13-5UA0

• 1.0 kW rated output

• 3.0 A rated current

• 9.0 A peak current

• FSA frame

• IP20

• 80 × 180 × 200 mm

6SL3210-5DE16-0UA0

• 1.5 kW rated output

• 4.6 A rated current

• 13.8 A peak current

• FSB frame

• Forced-air cooling

• IP20

• 100 × 180 × 200 mm

6SL3210-5DE21-8UA0

• 7.0 kW rated output

• 19.6 A rated current

• 39.6 A peak current

• FSC frame

• Forced-air cooling

• IP20

• 140 × 260 × 240 mm

Always verify the exact MLFB, because Siemens V70 specifications differ by frame size and order number.

SINAMICS V70 vs SINAMICS V60

Feature SINAMICS V70 SINAMICS V60

Main Application CNC feed-axis servo CNC feed-axis servo

CNC Integration SINUMERIK ecosystem SINUMERIK ecosystem

Motor Family SIMOTICS S-1FL6 Compatible Siemens motor generation

Typical Power 0.4–7 kW documented Application/configuration dependent

Input 380–480 V 3 AC documented 220–240 V 3 AC documented configurations

Encoder 20-bit / incremental options Encoder-dependent

Main Use CNC turning, milling and machine tools Standard CNC feed-axis applications

Architecture Dedicated compact servo drive Dedicated compact servo drive

Best Fit Siemens SINUMERIK 808D ADVANCED applications Compatible legacy CNC applications

V70 is particularly relevant where the machine is based around the SINUMERIK 808D ADVANCED + SIMOTICS S-1FL6 ecosystem. Siemens' current catalog explicitly lists this combination.

SINAMICS V70 vs S110

V70 is primarily oriented toward CNC feed-axis applications within the SINUMERIK ecosystem.

S110 is a broader single-axis servo platform intended for simple positioning and motion applications.

Choose V70 when:

• The machine uses compatible SINUMERIK CNC control

• CNC feed-axis control is required

• The application is a standard machine tool

• Existing Siemens V70 hardware needs replacement

Consider S110 when:

• The application is not specifically CNC-oriented

• General single-axis positioning is required

• A more flexible servo architecture is preferred

Selecting the Correct SINAMICS V70

Before ordering a V70 servo drive, confirm:

1. Existing Drive

Provide:

• Complete MLFB/order number

• Rated current

• Frame size

• Existing drive version

2. CNC Controller

Check:

• SINUMERIK model

• CNC software/version

• Number of controlled axes

3. Servo Motor

Confirm:

• Motor model

• Rated torque

• Rated speed

• Encoder type

• Holding brake requirement

4. Machine Axis

Identify:

• X/Y/Z or other axis

• Required feed rate

• Travel

• Load

• Acceleration/deceleration

5. Cabling

Check:

• Motor cable

• Encoder cable

• Brake connection

• Connector type

• Required cable length

6. Environment

Confirm:

• Ambient temperature

• Installation altitude

• Cabinet conditions

• Cooling arrangement

• Dust and contamination

Providing the existing Siemens V70 MLFB + motor number + SINUMERIK model is the safest method for replacement selection.

Siemens SINAMICS V70 Servo Drive Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Siemens SINAMICS V70 servo drives and related automation products for CNC machine builders, OEMs, system integrators and industrial users.

We can assist with:

• SINAMICS V70 identification

• Exact MLFB verification

• Servo motor matching

• SINUMERIK compatibility

• CNC feed-axis requirements

• Encoder compatibility

• Cable selection

• Replacement and retrofit support

• CNC automation sourcing

• Industrial servo-drive quotations

We support customers across Ahmedabad, Gujarat and India, with sourcing support for industrial automation requirements in UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Siemens automation product sourcing

• SINAMICS servo-drive support

• CNC drive selection assistance

• Motor-drive matching

• Exact part-number verification

• Replacement and retrofit guidance

• OEM CNC machine support

• Industrial automation sourcing

• Ahmedabad-based coordination

• Pan-India supply support

Frequently Asked Questions

What is Siemens SINAMICS V70 Servo Drive?

SINAMICS V70 is a compact Siemens servo drive designed primarily for CNC feed-axis applications, particularly within the SINUMERIK ecosystem. Siemens lists it as part of the SINUMERIK 808D ADVANCED system.

What is the power range of SINAMICS V70?

The documented 380–480 V 3-phase V70 range includes servo-drive ratings from 0.4 kW to 7 kW.

Which motors are compatible with V70?

Siemens identifies SIMOTICS S-1FL6 as the connectable motor family for the documented V70 range.

Is V70 suitable for CNC machines?

Yes. V70 is specifically associated with CNC feed-axis solutions and Siemens SINUMERIK systems, making it suitable for standard CNC turning, milling and similar machine-tool applications.

What input voltage does SINAMICS V70 use?

The documented V70 configurations use 380–480 V 3 AC, with the specified tolerance and frequency range depending on the product configuration.

What encoder options are available?

Siemens documentation lists a 20-bit absolute encoder and an incremental encoder with 2500 signals/revolutionamong the supported feedback configurations.
