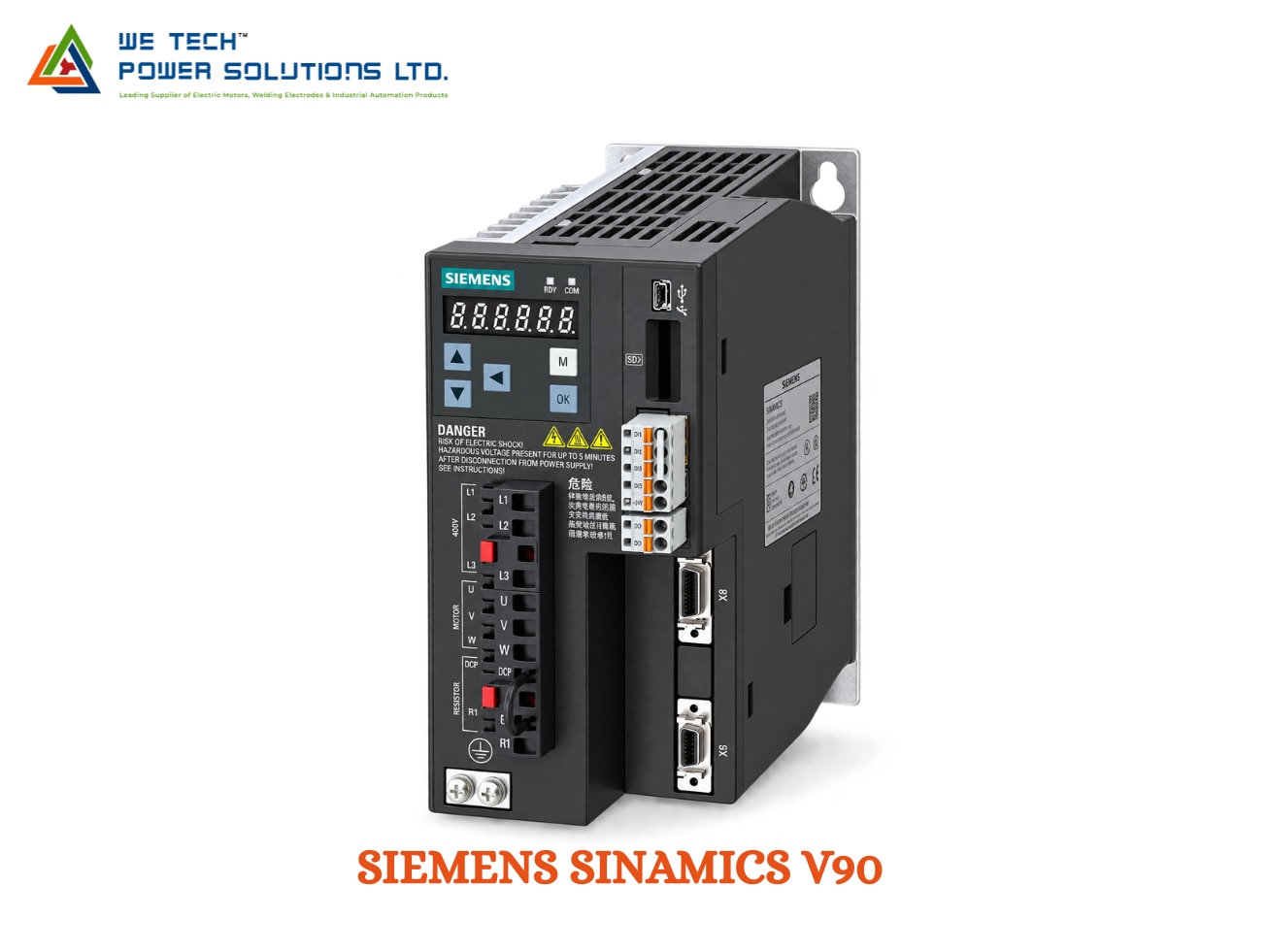

Siemens SINAMICS V90 Servo Drive

Siemens SINAMICS V90 Servo Drive for Precise & Dynamic Machine Motion

The Siemens SINAMICS V90 Servo Drive is a compact servo-drive system designed for machine applications requiring accurate positioning, fast response and reliable motion control.

The V90 system combines the servo drive with compatible SIMOTICS S-1FL6 servo motors to provide a coordinated solution for positioning, winding, handling and other dynamic machine movements. Siemens highlights simple commissioning, automatic tuning, high encoder resolution and real-time communication as key features of the system.

We Tech Power Solutions Ltd supplies Siemens SINAMICS V90 servo-drive solutions for OEMs, machine builders, automation integrators and industrial users across Ahmedabad, Gujarat and India.

What Is SINAMICS V90?

SINAMICS V90 is a compact servo drive system for dynamic machine automation.

It is designed around the combination of:

• SINAMICS V90 Servo Drive

• SIMOTICS S-1FL6 Servo Motor

• Encoder feedback

• Motor and signal cables

• Siemens PLC or motion controller

The system is available in different communication variants, allowing machine builders to select the control method appropriate for their application. Siemens currently identifies PROFINET and Pulse Train Input (PTI) versions within the V90 family.

Where SINAMICS V90 Fits in Machine Automation

V90 is positioned between basic motor-control drives and more advanced modular servo platforms.

It is particularly useful when a machine requires:

• Accurate positioning

• Fast acceleration and braking

• Smooth servo movement

• Repeatable machine cycles

• Dynamic response

• Automatic tuning

• Compact installation

• Straightforward commissioning

Typical applications include:

• Electronic assembly

• Packaging

• Printing

• Material handling

• Pick-and-place

• Positioning systems

• Winding applications

• General OEM machinery

Siemens specifically highlights electronic assembly, printing, packaging and material-handling machines as application areas for V90.

V90 Servo Drive + SIMOTICS S-1FL6 Motor

A major advantage of the V90 system is its matched motor ecosystem.

The SIMOTICS S-1FL6 motor family is designed to work with SINAMICS V90.

Depending on the selected motor, the system can provide:

• Low-inertia servo motors

• High-inertia servo motors

• Different torque ratings

• Absolute encoder options

• Holding-brake options

• Different shaft and mounting configurations

Siemens documentation specifies that V90 drives can be matched with S-1FL6 motors according to the permitted drive/motor combination.

Choose the Right V90 Communication Version

SINAMICS V90 is available in different control-interface versions.

V90 PROFINET

The PROFINET version is designed for integration with Siemens automation systems.

It supports:

• PROFINET IO

• Real-time communication

• PROFINET IRT

• Motion-control applications

• Diagnostic data

• PLC integration

Siemens lists PROFINET IO-Device communication with RT/IRT and cycle times starting from 2 ms for the V90 PN version.

This makes the V90 PN suitable for applications using Siemens SIMATIC controllers.

V90 PTI

The PTI version uses a Pulse Train Input interface for motion commands.

It is suitable for machine architectures where positioning commands are generated through pulse-train signals.

The PTI version also supports:

• Pulse train input

• Modbus

• USS

• Servo positioning

• Compatible PLC/controller architectures

Siemens lists Pulse Train Input together with Modbus/USS for the PTI version.

Simple Commissioning with One-Button Tuning

One of the most useful V90 features is its focus on simplified commissioning.

Siemens highlights:

• One-button tuning

• Real-time auto-tuning

• Automatic control-loop optimization

• Easy commissioning

The automatic tuning functions can optimize control-loop parameters for the connected motor and application, helping reduce commissioning effort.

This is particularly useful for OEM machine builders who need to commission multiple machines with similar servo axes.

Real-Time Auto-Tuning

V90 includes automatic tuning functionality designed to help achieve stable servo performance.

The drive can optimize control parameters based on machine characteristics.

This can help with:

• Positioning accuracy

• Servo responsiveness

• Smooth operation

• Reduced commissioning time

• Consistent machine performance

Siemens also introduced Fast PTI mode through V90 firmware V1.11, improving PTI response and enabling higher-dynamic applications such as high-speed labeling and LED pick-and-place.

High-Resolution Encoder Feedback

Servo performance depends heavily on feedback resolution.

The V90 system can work with SIMOTICS S-1FL6 motors using encoder options up to 21-bit absolute single-turn resolution.

Higher encoder resolution provides more detailed position feedback and supports accurate motion control.

The exact encoder depends on the selected motor configuration.

V90 Power Range

Siemens currently specifies different V90 power ranges according to supply configuration:

200 V Class

• 1/3 AC 200 V: 0.1–2 kW

• 3 AC 200 V: 1–2 kW

400 V Class

• 3 AC 400 V: 0.4–7 kW

The exact rated current and motor compatibility depend on the individual V90 order number.

Fast Acceleration & Braking

V90 is designed for machines with frequent dynamic movements.

The servo system can support:

• Rapid acceleration

• Controlled deceleration

• Fast positioning

• Repetitive motion

• Smooth servo operation

• High machine productivity

Siemens positions V90 as a solution for highly dynamic applications requiring rapid acceleration and braking.

Position Tracking

Selected V90/S-1FL6 configurations provide position-tracking functionality.

This can allow the drive to retain position information and reduce the need for referencing after certain machine stops or restarts.

Siemens describes position tracking with the absolute encoder version as a feature that can help shorten startup time after machine stops.

Integrated Safe Torque Off

SINAMICS V90 includes an integrated Safe Torque Off (STO) function.

STO can be used as part of a machine's safety architecture to prevent torque-producing operation when the safety function is activated.

Siemens documentation identifies STO as an integrated safety function of the V90 system.

Important: STO in the servo drive does not by itself make a complete machine safety compliant. The complete safety system must be designed, validated and maintained according to the applicable standards.

V90 Engineering & Commissioning

The V90 system can be commissioned using SINAMICS V-ASSISTANT.

The engineering tool can assist with:

• Drive commissioning

• Parameterization

• Servo optimization

• Diagnostics

• Drive monitoring

• Configuration

Siemens' V90 documentation specifically identifies SINAMICS V-ASSISTANT as the engineering tool for fast commissioning and diagnostics.

For Siemens PLC-based architectures, the PROFINET version can also be integrated into broader Siemens automation workflows.

Integration with SIMATIC Controllers

The V90 PROFINET version is designed for integration with Siemens SIMATIC controllers.

Siemens specifically identifies SIMATIC S7-1500 T-CPU and SIMATIC S7-1200 as compatible controller platforms for a coordinated motion-control solution using V90 with PROFINET and TIA Portal.

A typical architecture is:

SIMATIC PLC / Motion Controller

↓

PROFINET

↓

SINAMICS V90 PN

↓

SIMOTICS S-1FL6 Servo Motor

↓

Machine Axis

V90 for Packaging Machines

Packaging equipment often requires rapid and repeatable servo movement.

V90 can be considered for:

• Product feeding

• Cutting

• Sealing

• Labeling

• Indexing

• Positioning

• Pick-and-place

The combination of automatic tuning, fast response and high-resolution feedback makes V90 suitable for repetitive packaging movements.

V90 for Electronics Assembly

Electronic assembly machines often require precise positioning with short machine cycles.

Applications can include:

• Component handling

• Pick-and-place

• Assembly positioning

• Inspection mechanisms

• Small-axis motion

• Transfer systems

Siemens identifies electronic assembly machines among the application areas for V90.

V90 for Printing & Converting

V90 can be applied to motion tasks such as:

• Material feeding

• Roller positioning

• Web movement

• Cutting

• Registration

• Winding

The dynamic servo response can be useful where synchronized or repetitive movement is required.

V90 for Material Handling

Applications can include:

• Conveyor positioning

• Transfer units

• Sorting systems

• Pick-and-place

• Automated handling

• Positioning mechanisms

The drive can be selected according to the motor torque, speed and mechanical load.

V90 for Winding Applications

V90 is also suitable for motion-control applications involving winding.

Possible applications include:

• Material winding

• Film handling

• Cable processing

• Web handling

• Roll positioning

Siemens identifies positioning and winding among V90 motion-control applications.

Industries

SINAMICS V90 can be considered for:

• Packaging

• Electronics Manufacturing

• Printing & Converting

• Material Handling

• Food & Beverage Machinery

• Assembly Automation

• Textile Machinery

• Plastics Machinery

• General Manufacturing

• OEM Machine Building

• Automated Production Equipment

SINAMICS V90 Technical Overview

Specification Siemens SINAMICS V90

Brand Siemens

Product Family SINAMICS

Product V90

Product Type Servo Drive System

Motor Family SIMOTICS S-1FL6

200 V Power Range 0.1–2 kW

400 V Power Range 0.4–7 kW

Control Servo motion control

Communication PROFINET or PTI version

PROFINET IO-Device, RT/IRT

PTI Version Pulse Train Input, Modbus/USS

Encoder Up to 21-bit absolute encoder options

Safety Integrated STO

Tuning One-button tuning / real-time auto-tuning

Engineering SINAMICS V-ASSISTANT

PLC Integration SIMATIC S7-1200 / S7-1500 T-CPU, configuration dependent

Typical Applications Positioning, packaging, printing, handling, winding

Motor Connection Model-dependent

Configuration Drive + compatible S-1FL6 servo motor

Exact electrical ratings, motor compatibility, encoder type and functions depend on the complete Siemens order number and product variant. Always verify the MLFB before ordering.

SINAMICS V90 PN vs V90 PTI

Feature V90 PN V90 PTI

Main Communication PROFINET Pulse Train Input

Network PROFINET RT/IRT Modbus / USS also available

PLC Integration Siemens PLC / PROFINET architecture Pulse-based controller architecture

Motion Command PROFINET Pulse train

Best Fit TIA Portal / Siemens automation Simple pulse-based positioning

Diagnostics Network-based + drive tools Drive tools / communication dependent

Application Multi-axis machine automation Positioning machines

Choose the version based on the controller and communication architecture rather than selecting only by motor power. Siemens explicitly distinguishes the PN and PTI variants.

SINAMICS V90 vs SINAMICS S200

Feature SINAMICS V90 SINAMICS S200

Main Positioning Simple/highly dynamic machine servo Modern standard machine servo

Motor Family SIMOTICS S-1FL6 SIMOTICS S-1FL2

200 V Range 0.1–2 kW 0.1–2 kW

400 V Range 0.4–7 kW 0.2–7 kW class depending configuration

Communication PROFINET / PTI PROFINET RT/IRT and applicable options

Tuning One-button / auto-tuning Startdrive / system-specific tuning

Engineering V-ASSISTANT Startdrive / Webserver

Typical Focus Packaging, electronics, handling, positioning Newer standard machine automation

Best Fit Existing V90 architecture / established machine designs Newer servo system requirements

The correct choice depends on the machine generation, controller, motor family, communication requirements and lifecycle requirements.

SINAMICS V90 vs SINAMICS S210

V90 and S210 both target dynamic machine motion, but their system architectures differ.

Choose V90 when:

• Existing machinery already uses V90

• SIMOTICS S-1FL6 is required

• PTI control is required

• A V90-compatible PROFINET architecture is required

• Replacement or retrofit is the primary requirement

Consider S210 when:

• A newer Siemens servo architecture is required

• Advanced safety functionality is needed

• S-1FK2, S-1FT2 or S-1FS2 motors are preferred

• More modern machine-motion features are required

For replacement projects, always verify the complete existing system rather than assuming V90 and S210 are direct drop-in replacements.

How to Select the Correct SINAMICS V90

1. Determine the Supply Voltage

Check whether the machine requires:

• 200 V class

• 400 V class

2. Select the Communication Version

Choose between:

• PROFINET

• PTI

3. Determine Motor Requirements

Check:

• Rated power

• Continuous torque

• Peak torque

• Rated speed

• Maximum speed

• Motor inertia

4. Confirm Encoder

Identify:

• Encoder type

• Resolution

• Absolute/incremental feedback

• Position tracking requirement

5. Check Mechanical Requirements

Confirm:

• Shaft type

• Mounting

• Holding brake

• Motor frame size

6. Check Controller

Confirm:

• SIMATIC PLC

• TIA Portal architecture

• Pulse-train controller

• Existing communication system

7. Verify the Existing MLFB

For replacement applications, provide the exact Siemens V90 drive and S-1FL6 motor order numbers.

This is the safest way to verify compatibility.

Siemens SINAMICS V90 Servo Drive Supplier in Ahmedabad & India

We Tech Power Solutions Ltd supplies Siemens SINAMICS V90 servo-drive solutions for OEM machine builders, automation integrators, manufacturing companies and industrial users.

We can assist with:

• V90 servo-drive selection

• S-1FL6 motor selection

• Drive-motor matching

• PROFINET or PTI selection

• Encoder compatibility

• Servo replacement

• Retrofit requirements

• Exact MLFB verification

• Machine-motion requirements

• Industrial automation quotations

We support customers across Ahmedabad, Gujarat and India, with industrial automation sourcing requirements from UAE, Dubai, Abu Dhabi, Saudi Arabia, Qatar, Oman, Kuwait and Bahrain.

Why Choose We Tech Power Solutions Ltd?

• Siemens automation product sourcing

• SINAMICS servo-drive support

• Servo motor matching

• Application-based selection

• Exact part-number verification

• Replacement and retrofit assistance

• OEM machine automation support

• Motion-control product sourcing

• Ahmedabad-based coordination

• Pan-India supply support

Frequently Asked Questions

What is Siemens SINAMICS V90 Servo Drive?

SINAMICS V90 is a compact servo-drive system designed for precise and dynamic machine motion. It is commonly used with SIMOTICS S-1FL6 servo motors in applications such as packaging, electronics assembly, printing and material handling.

What is the power range of SINAMICS V90?

Siemens currently lists 0.1–2 kW for 1/3 AC 200 V, 1–2 kW for 3 AC 200 V, and 0.4–7 kW for 3 AC 400 Vconfigurations.

What is the difference between V90 PN and V90 PTI?

V90 PN communicates through PROFINET RT/IRT, while V90 PTI uses a Pulse Train Input interface and also supports Modbus/USS. The correct version depends on the machine controller and motion architecture.

Which motor is used with SINAMICS V90?

The V90 system is designed to work with SIMOTICS S-1FL6 servo motors, with different motor inertia, encoder and mechanical configurations available.

Does V90 support automatic tuning?

Yes. Siemens highlights one-button tuning and real-time auto-tuning to optimize the servo control-loop parameters during commissioning.

Does SINAMICS V90 have a safety function?

Yes. Siemens documentation identifies an integrated Safe Torque Off (STO) function. The overall machine safety system must still be designed and validated according to applicable standards.

Get Siemens SINAMICS V90 Servo Drive

Looking for a Siemens SINAMICS V90 Servo Drive in Ahmedabad, Gujarat or India?

Share your existing V90 MLFB, SIMOTICS S-1FL6 motor number, supply voltage, communication type, torque/speed requirement and application with We Tech Power Solutions Ltd for accurate product identification, compatibility checking and quotation support.
