SIEMENS SIMATIC KTP 400 COMFORT

Siemens Simatic HMI KTP400 Comfort for Industrial Automation in Ahmedabad.

Industrial machines need more than a controller to operate efficiently. Operators also need a clear, responsive interface that makes it easy to monitor processes, enter commands and identify operating conditions. This is where an industrial Human Machine Interface (HMI) becomes an important part of an automation system.

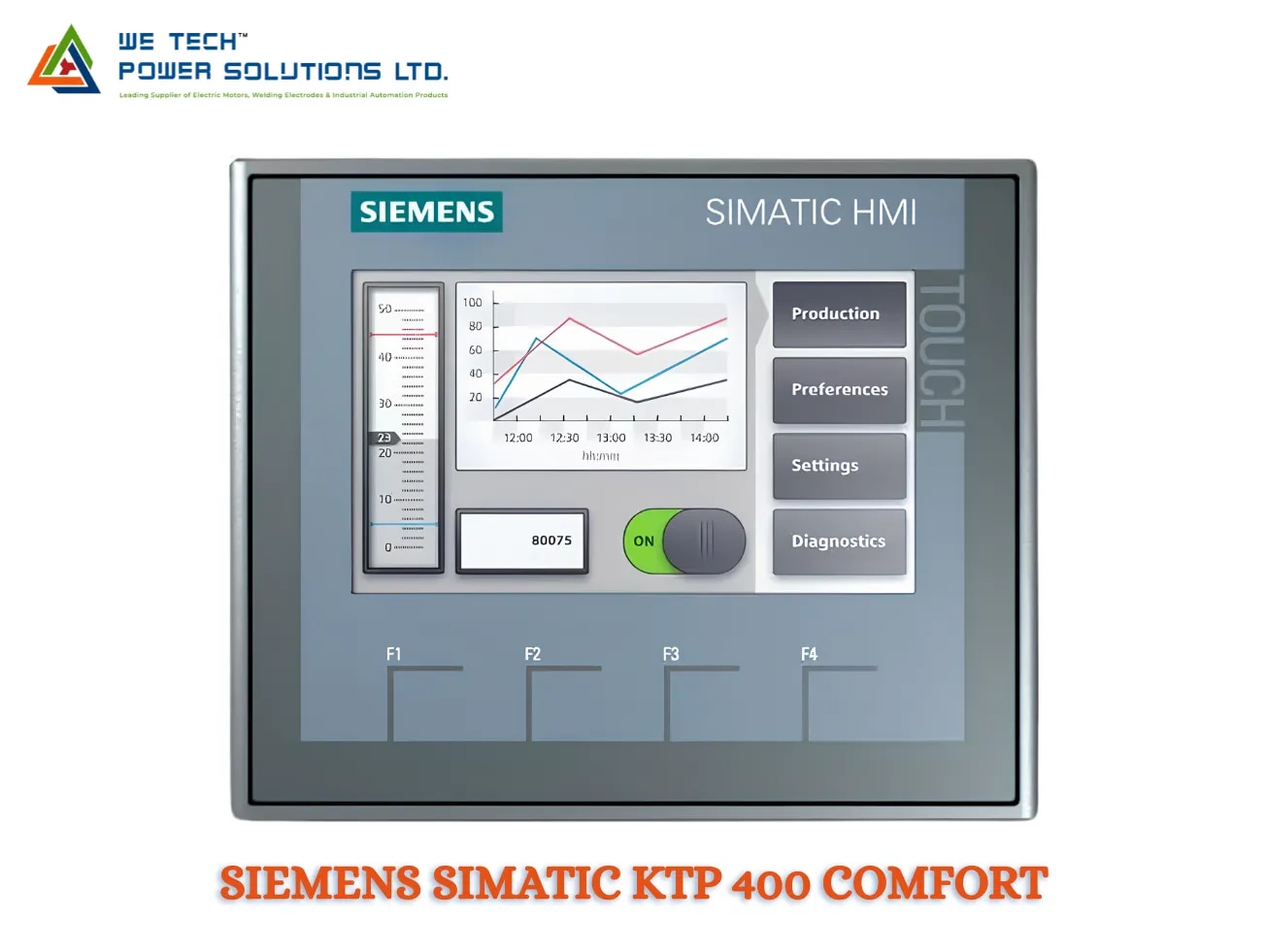

The Siemens SIMATIC HMI KTP400 Comfort is a compact Comfort Panel designed for machine and process visualization. Its combination of touch operation, function keys, industrial communication interfaces and a widescreen display makes it suitable for applications where panel space is limited but dependable operator interaction is still required.

What Makes the KTP400 Comfort Useful?

The KTP400 Comfort is built around a 4.3-inch widescreen TFT display with a resolution of 480 × 272 pixels and support for 16 million colors. The compact format allows manufacturers to provide an operator interface without requiring a large control-panel footprint.

Its interface combines a touchscreen with four tactile function keys. This is particularly useful when operators need both visual navigation and direct physical controls during machine operation. Siemens also lists one PROFINET and one PROFIBUS interface for the standard KTP400 Comfort configuration.

Key Features of Siemens SIMATIC HMI KTP400 Comfort

Several characteristics make this HMI practical for industrial environments:

• 4.3-inch widescreen TFT display for compact machine visualization

• 480 × 272 pixel resolution for displaying process information and operating screens

• 16 million colors for clear graphical visualization

• Touchscreen operation for intuitive interaction

• Four tactile function keys for frequently used machine commands

• PROFINET and PROFIBUS connectivity for integration with compatible automation systems

• 4 MB configuration memory in the standard specification

• 24 V DC power supply for industrial control-panel installations

Together, these features allow the panel to serve as a practical interface between operators and automation equipment.

Where Can the KTP400 Comfort Be Used?

The Siemens SIMATIC HMI KTP400 Comfort can be considered for a range of automation applications where operators need access to machine information and controls.

Typical applications include machine automation, production lines, material handling, packaging machinery and process control. We Tech Power Solutions also lists industrial upgrades and replacement requirements among the applications for this product.

For example, a packaging machine may use an HMI to display operating parameters, machine status and alarms while giving the operator quick access to control functions. Similarly, a production-line application can use an HMI to present process information in a centralized and easy-to-understand format.

Why Compact HMI Design Matters

Control-panel space can become expensive when multiple automation components have to fit inside a restricted enclosure. A compact HMI can help manufacturers provide operator visualization without dedicating excessive panel space to the interface.

The KTP400 Comfort's relatively small display format makes it relevant to machines where a large screen is unnecessary. At the same time, the combination of touch operation and physical function keys provides more than one method of interacting with the machine.

This balance between size and functionality is one reason compact HMIs continue to have a place in industrial automation.

Selecting the Right Siemens HMI for Your Application

Choosing an HMI should not be based only on screen size or brand. The automation system, communication architecture and operating environment also need to be considered.

Before ordering a Siemens SIMATIC HMI KTP400 Comfort, it is useful to verify:

1. The complete Siemens order number.

2. PLC or controller compatibility.

3. Required communication interfaces.

4. Software and configuration requirements.

5. Mounting dimensions and panel arrangement.

6. Operating environment and temperature requirements.

7. Required quantity and accessories.

We Tech Power Solutions recommends sharing the exact order number or application requirements, along with power, control, communication, mounting and environmental requirements, when requesting selection and quotation support.

A Practical Choice for Machine Visualization

An HMI should make machine operation easier—not add another layer of complexity. The Siemens SIMATIC HMI KTP400 Comfort combines a compact widescreen display with touch functionality and physical function keys, while supporting industrial communication requirements through PROFINET and PROFIBUS.

For OEMs, machine builders and industrial automation teams, the key is matching the exact HMI configuration to the controller, communication network and application requirements.

If you are looking for a Siemens HMI supplier in Ahmedabad or need support identifying the correct Comfort Panel for an automation project, We Tech Power Solutions Ltd can assist with product selection and quotation requirements. The company lists Ahmedabad as its base and serves customers across India.

Frequently Asked Questions

1. How do I select the correct Comfort HMI?

Selection depends on the exact application, rating, interfaces, environment, and required functions.

2. Do you supply SIMATIC HMI KTP400 Comfort in Ahmedabad?

Yes. We coordinate automation product requirements from Ahmedabad for customers across India.

3. What details are needed for a quotation?

Please provide the exact order number (if available), required quantity, application, and delivery location.

Looking for a reliable source for SIMATIC HMI KTP400 Comfort? Contact We Tech Power Solutions Ltd with your product or application requirements. Share your Siemens part number and requirements today for product selection, availability, and quotation support.
